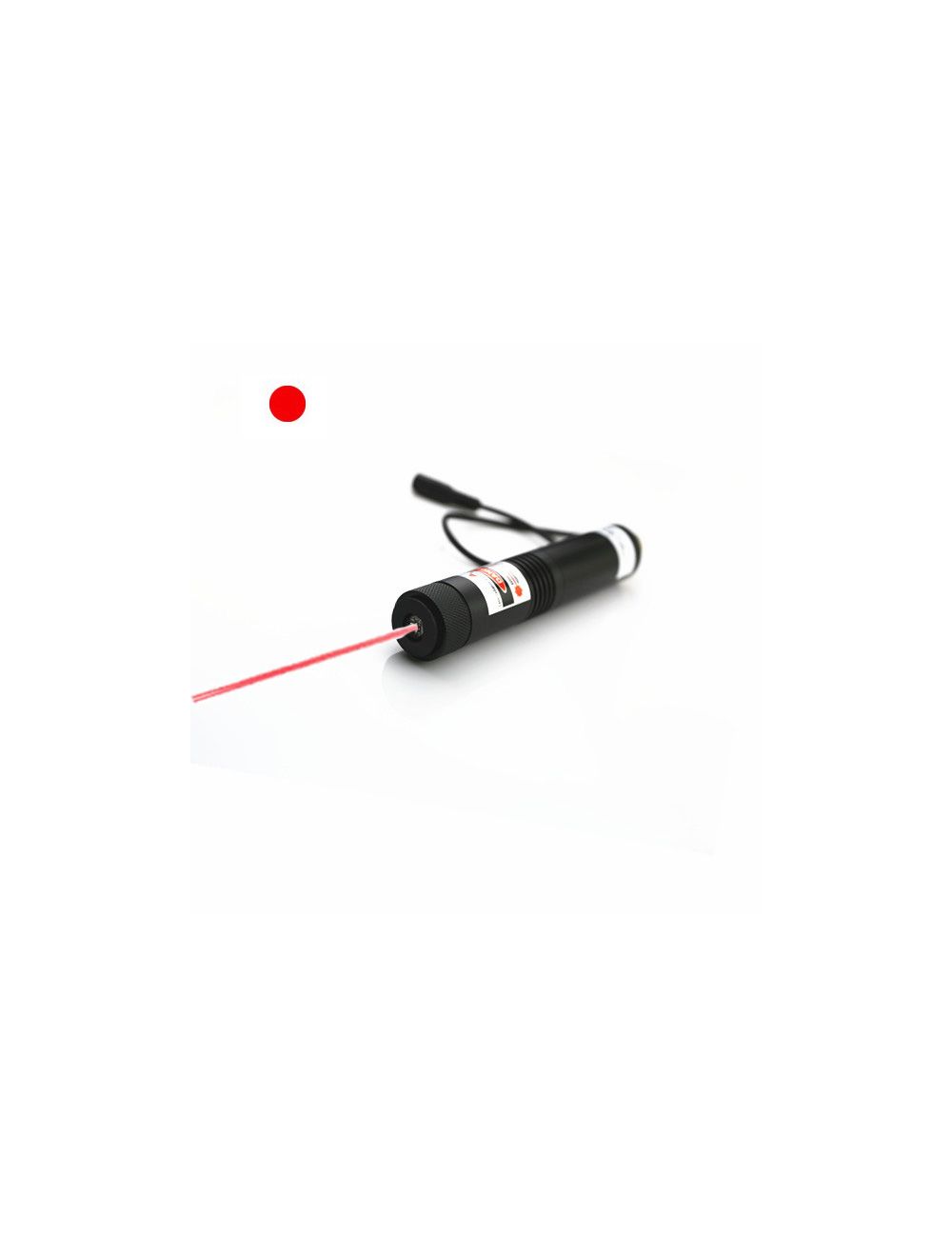

High Power Pro Red Dot Laser Alignment

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $299.99

Special Price $278.99

  • Buy 3 for $276.99 each and save 1%
  • Buy 5 for $274.99 each and save 2%
  • Buy 10 for $272.99 each and save 3%

Quick Overview

When high purity red laser beam is generating from high power 635nm red laser diode, equipped with excellent thermal emitting from metal heat sink cooling system and metal housing tube, high power pro red dot laser alignment is generating at least 5 times brighter red light than 650nm red laser device, making sure of the brightest and the clearest red reference dot targeting under high lighting and long distance use. After quite easy adjustment of laser beam focus and dot targeting direction, high power 635nm red laser module just gets immediate and accurate dot aligning solutions for prominent institutes, lab, and colleges etc.

* Required Fields

Details

High power pro red dot laser alignment employs import 635nm red laser diode as its beam emitting source, obtaining the purest and the brightest red light, and excellent circle and compact size red reference dot under multiple working occasions. Manufactured by high duration aircraft used aluminum alloy housing, copper raw material made laser diode core part and constant electric power source from DC input power supply, high power 635nm red laser module always provides the best dot aligning solutions for industrial dot alignment, military targeting, laser marking machine, drilling system, and textile garment processing etc.

● Constant power supply made red laser module assures continuous dot alignment.

The adoption of external DC input power supply supports constant electric power source for high power 635nm red laser module, accepting wide electric current input of 100V to 240V converting into 9V DC power supply, and assuring highly stable red laser dot targeting in long term use.

● APC, ACC driving circuit makes sure of efficient filtering of electric current impact.

High power pro red dot laser alignment gets high power range of 150mW to 500mW. Intelligent feedback system protects red laser module from electric current impacting, assuring constant red dot aligning in long term use. Within daily operating time of 8 to 10 hours, high power red laser module maintains up to 80% beam stability and good laser light cycling use in long term use.

● High power red laser module gets high intensity red laser beam and clear dot alignment in distance.

Employed by import 650nm red laser diode within wide power range of 150mW to 500mW, high power pro red dot laser alignment generates super intense red laser light and clear red reference dot targeting in distance and high lighting.

Key features:

Glass coated lens made high power 635nm red laser modules assures high laser beam transmittance and good round shape red dot targeting in use.
Wide output power range of 150mW, 200mW, 300mW, 400mW, and 500mW made red laser dot alignment tool makes sure of excellent quality red laser beam, and high level of accuracy dot alignment under high lighting and long distance efficiently.
Dual directions thermal emitting systems of metal heat sink cooling system and metal housing tube assure superior nice thermal conductivity in continuous dot alignment work.
CW modulation.

Technical parameters:

Item High Power Pro Red Dot Laser Alignment
Wavelength (nm) 635nm
Output power (mW) 150mW, 200mW, 300mW, 400mW, 500mW
Laser Class IIIB, IV
Beam thickness at aperture (mm) 2mm×6mm@2M
Beam divergence (mrad) 5mrad
Beam mode (before optics) TEM00
Focus adjustable? Yes
TTL Modulation NO
Operating voltage(v)  DC=9V
Operating current (mA)  I<1000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Note:

High power pro dot laser alignment just allows operation by trained users or professionals. People should install and adjust high power 635nm red laser module to the best condition and operate under special alignment equipment.

Warning! High intensity red laser light and thermal energy are produced from laser beam aperture. Avoid eye exposure to any laser radiation and laser reflection. Do remember to wear 635nm wavelength preventing laser safety goggles.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 9V ,1000mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. High Power Pro Red Dot Laser Alignment
2. DC input power Supply

Attention: For high powered or OEM pro red dot projecitng alignment lasers, please contact us free at support@berlinlasers.com.
