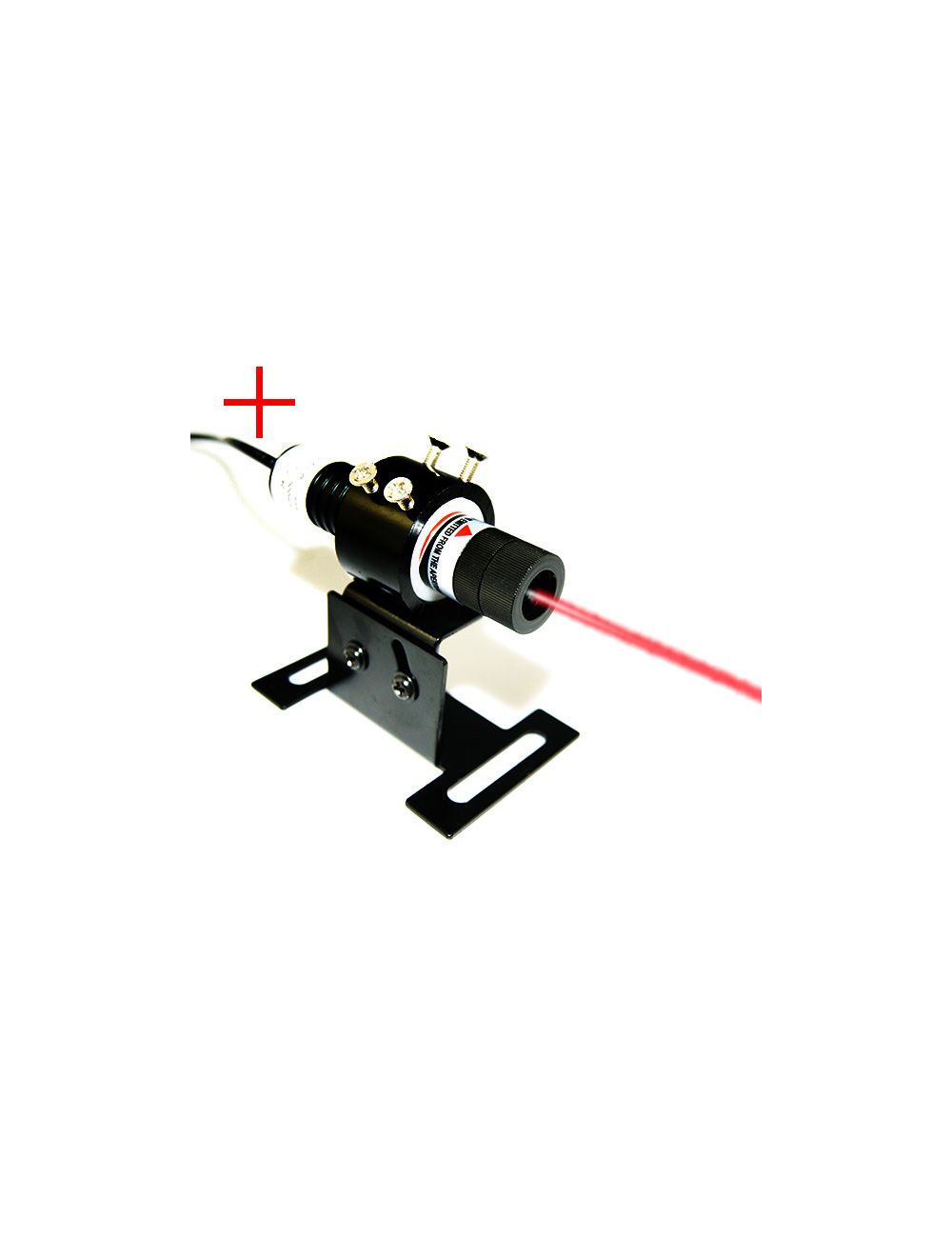

Pro Red Cross Projecting Laser Alignment

Payment Option:

Availability: In stock

Regular Price: $155.18

Special Price $115.98

  • Buy 3 for $111.98 each and save 4%
  • Buy 5 for $107.98 each and save 7%
  • Buy 10 for $102.98 each and save 12%

Quick Overview

Pro red laser alignment generates two perpendicular lines on a surface where a highly visible cross lines are is required. Available with fan angles of up to 90 degrees, the red laser module is able to project two cross line at a determined distance. This focus adjustable alignment laser provides highly visible and accurate alignment at great distance.

* Required Fields


Industrial pro red cross projecting alignment laser provide moderate precision cross line alignment in work.

Pro red cross generating laser module is an ideal alignment device for applications where a highly visible two perpendicular lines onto a surface in need. 635nm red laser is two or three times brighter and more visible than 650nm red laser, this focus adjustable red laser alignment will provides you the highest level of accuracy and precision on targeted surface or at great distance.

High precision alignment laser with stable performance. The purest red beam visible laser alignment incorporates with the finest red laser optic system and aircraft aluminum material, achieves high stability and high efficiency in 24 hours continuous operation.

Focus adjustable design and highest accuracy alignment. 635nm red laser module utilizes focus adjustable and inner perfect circuit board designs, allowing you a highly visible cross onto surface or great distance conditions.

Technical parameters:

Item Pro Red Cross-Projecting Laser Alignment
Wavelength(nm) 635nm
Output power(mW) 5mW
Available Fan Angel (degrees) 90°
Beam diameter at aperture(mm) 2m beam diameter: <2.2mm
Beam divergence(mrad) 5 mrad
Beam mode TE
Focus adjustable? Yes
Operating voltage(v)  5mW-20mW:DC=3.0V; 30mW-100mW:DC=4.2V
Operating current (mA)  5mW-20mW: I<500mA; 30mW-100mW: I<1000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  5mW-20mW: D16mm×L71mm;30mW-100mW: D26mm×L150mm
Expected lifetime (hours) ≥5000 hours
Warranty 6 months

Only trained people are allowed to operate laser alignment. People should adjust the laser alignment to the best condition and operate under special alignment equipment.

Warning! Laser module emits radiation that can be harmful to human eyes. Never look directly into the laser aperture. Any exposure to laser beam at close distance can cause eye damage.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Laser Alignment
2. DC input power Supply

Attention: For high powered or OEM alignment lasers, please contact us free at support@berlinlasers.com.

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Customer Reviews 1 item(s)

Good calibration and high straightness cross laser alignment tool
I have just bought a 5mW red cross laser alignment for my primary test. Its projecting two perpendicular lines are very straight, bright and visible. In long time cross projecting work, its red laser beam is very stable and reliably. It has just made a quite nice cross generation in my work. Review by Peter Ivey / (Posted on 4/18/2015)
