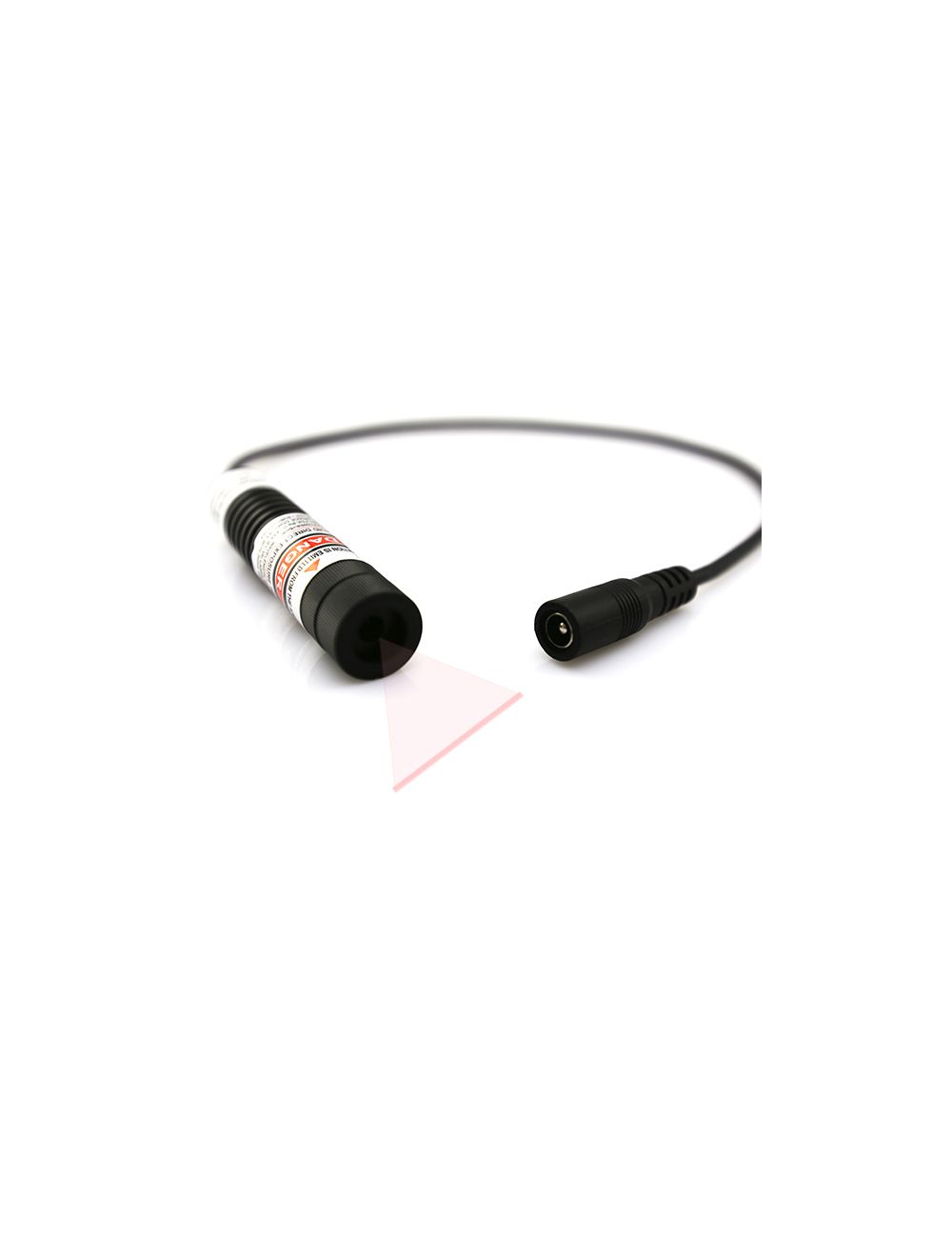

Uniform 808nm Infrared Line Laser Module

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $149.99

Special Price $135.99

  • Buy 2 for $131.99 each and save 3%
  • Buy 5 for $127.99 each and save 6%
  • Buy 10 for $122.99 each and save 10%

Quick Overview

Integrated with non-Gaussian distribution glass cylindrical line lens, 808nm infrared line laser module generates the highest uniformity IR line laser source for special application fields of night ir laser illumination, scanning, modeling, ir laser line alignment and positioning. This compact designed 16mm diameter IR laser line generator fulfills easy and convenient line emitting with high speed and high accuracy.

* Required Fields

Details

Focusable 808nm infrared line laser module integrates 808nm infrared laser diode with qualified uniform distribution glass cylindrical lens, generates a high quality, high uniformity IR laser line, providing high stability IR line laser source for night vision illumination, military targeting, line alignment and positioning in scanning, signaling, and modeling.

◆ External DC power supply laser line generator workable for continuous IR line alignment.
808nm infrared line laser module begins to make IR laser line projection after connecting with DC power supply. It is very easy and convenient to operate, just keeps stable and reliable IR line generation on work surface.

◆ Non Gaussian distribution IR laser line with high straightness, high uniformity and high accuracy
Uniform glass cylindrical lens configured IR laser line generator emits IR laser line with high uniformity IR line from middle towards both ends. It fulfills tasks of highest level of accuracy and precision line alignment and positioning.

Key features:

Anodized aluminum housing IR line laser module gets superiority of thermal conductivity, protection from mechanical shock and calibration, wide operation temperature workable.
Metal heat sink cooling system gets 10 times better thermal emitting in continuous IR line emitting.
Intellectual feedback driving circuit assures constant current supply for IR laser diode.
Wide laser output power range: 100mW, 200mW, 300mW, 400mW
Wide non-Gaussian laser fan angles: 16°, 20°, 30°, 45°, 50°, 60°, 93°
High speed IR laser line targeting with low power consumption, low manual input and long serving lifetime

Technical Data:

Item Infrared Line Laser Module
Wavelength(nm) 808nm
Output power(mW) 100mW, 200mW, 300mW, 400mW
Available Fan Angle (degree) 16°, 20°, 30°, 45°, 50°, 60°, 93°
Beam diameter at aperture(mm) 10cm distance:<2.5mm
Beam divergence(mrad) 6 mrad
Beam mode TE
Focus adjustable? Yes
Operating voltage(v) DC=3.0V
Operating current(mA) I<500mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension Dia16mm×Length71mm
Expected lifetime (hours) ≥8000 hours
Warranty 6 months

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Infrared laser line module
2. DC input power Supply optional

WARNING! 808nm infrared laser module emits invisible radiation and is harmful to human eyes. When users are making line generation with IR laser line module, we suggest to wear laser safety goggles for IR wavelength preventing.

Attention: For high powered or OEM 808nm infrared line laser module, please contact us free at support@berlinlasers.com.
