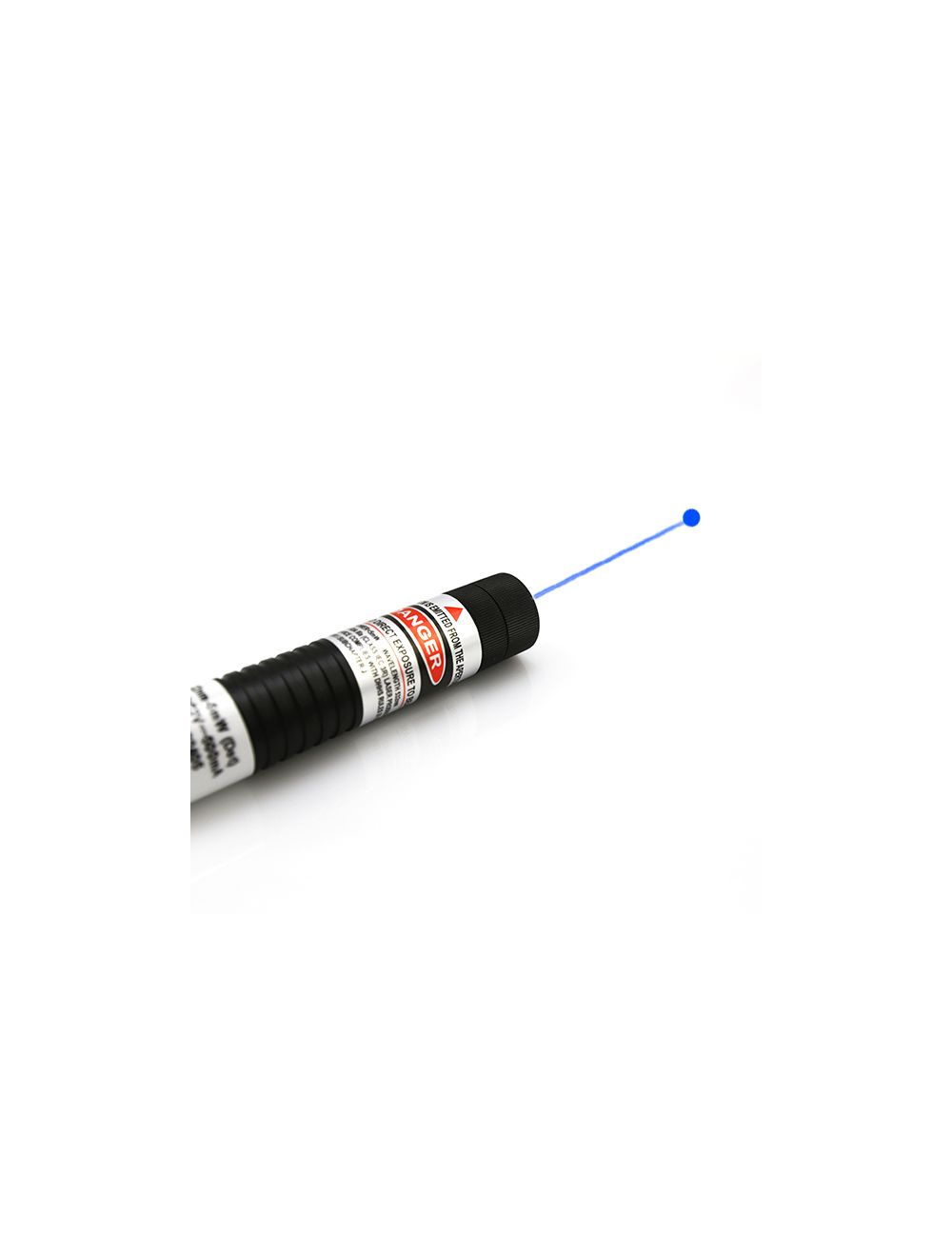

450nm 5mW-100mW Blue Laser Diode Modules

High stability beam emitting tool of 450nm blue laser diode module projects intense blue laser light directly from a 450nm blue laser diode within 50mW to 100mW. Equipping with metal heat sink, glass coated lens and APC driving circuit board, this external electric power source made 450nm blue laser assures the most reliable and the most accurate blue dot aligning source for institutes, labs, and colleges.

was $129.99 Special Price $109.99
Availability: In stock
  • Buy 3 for $107.99 each and save 2%
  • Buy 5 for $105.99 each and save 4%
  • Buy 10 for $102.99 each and save 6%

High Level of beam stability and high accuracy blue dot alignment for industrial and high tech fields

Direct diode emission 445nm blue laser diode module gets ultra compact size tube, metal heat sink, ensuring highly stable blue dot alignment within 8 to 10 hours and 85% beam stability in continuous use.
Glass coated lens with glass window assures high transmittance blue laser light emission, and highly clear blue dot alignment under multiple occasions, no affect by moisture or dust.
Adjustable focus lens ensures concentrated blue laser light, and increasing accuracy blue dot alignment for both long time and long distance.
AC/DC adapter supports 450nm blue laser diode module with constant blue laser beam emission and clear blue dot alignment, no light decay or blur under increasing temperature.
APC, ACC driving circuit board reduces possibility of tube burning out or damage, and long lifetime of more than 8,000 hours.
Applications: laser show, laser displaying, laser communication, drilling system, scientific research and high tech
Technical parameters:

Item Blue Laser Diode Modules
Wavelength (nm) 450nm
Output power (mW) 5mW, 10mW, 30mW, 50mW, 80mW, 100mW
Laser Class IIIA, IIIB
Beam thickness at aperture (mm) <2.5mm
Beam divergence (mrad) 3mrad
Beam mode (before optics) TEM
Focus adjustable? Yes
TTL Modulation NO
Operating voltage(v) DC=5V, 9V
Operating current (mA)  I<1000mA
Operating temperature(℃) 10℃~45℃
Storage temperature(℃) -10℃~50℃
Dimension D16mm×L71mm; D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Note: 450nm blue laser diode module up to 50mW generates powerful blue laser radiation and thermal energy to human eyes. Please avoid eye exposure to beam aperture. Do remember to wear laser safety goggles and glasses so as to achieves easy and safe dot alignment constantly.
