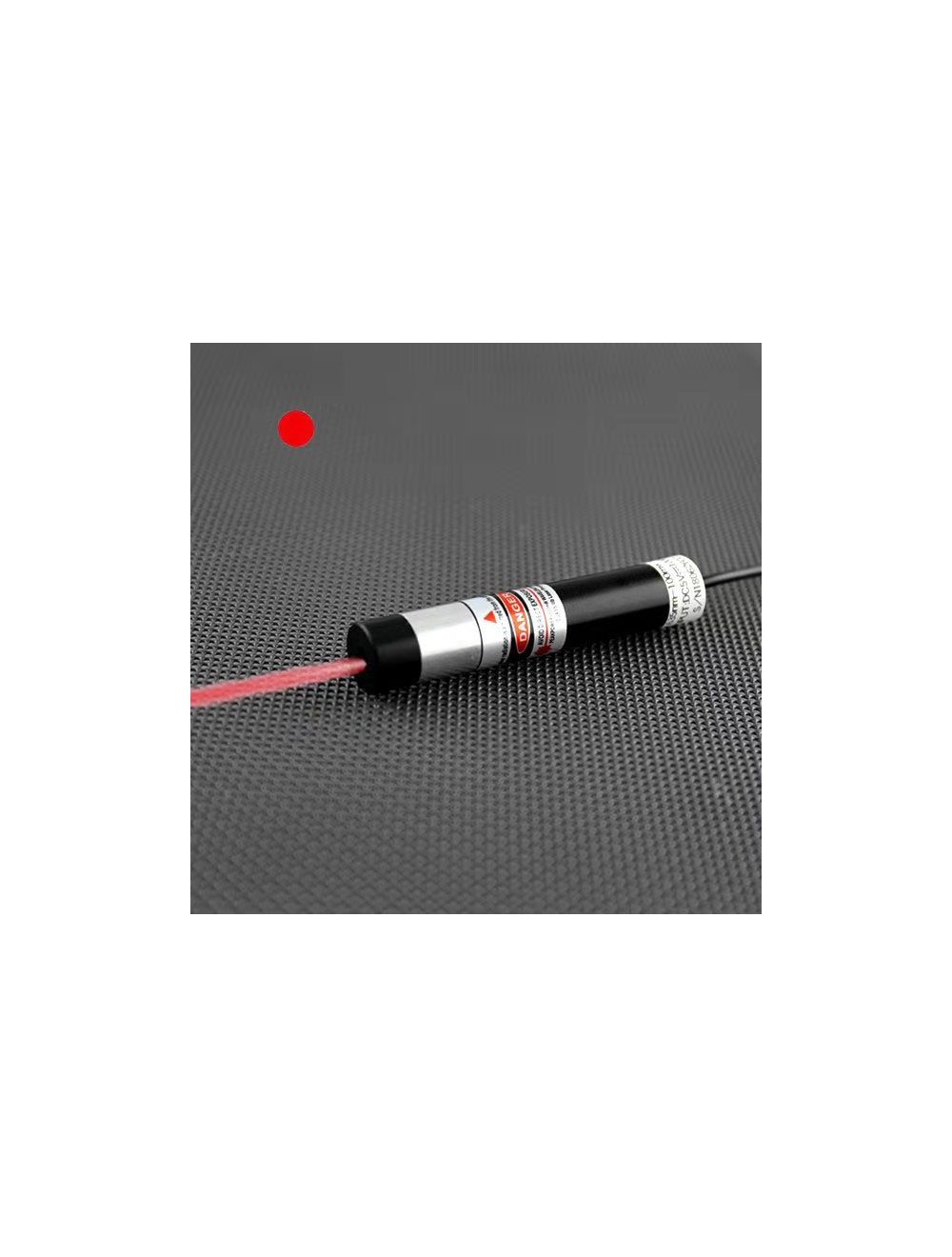

660nm Red Dot Laser Module

Intense beam emitting device of 660nm red dot laser module makes the best use of import 660nm red laser diode, qualified cooling system and APC driving circuit board, forming into the most practically used and industrial stabilized red dot alignment device. After easy mounting onto industrial machine or device, and proper adjustment of laser beam focus, 660nm red laser achieves concentrated red laser beam and the most precise red dot aligning solution for major institutes, labs, universities and formal industrial dot aligning fields.

was $79.99 Special Price $65.55
Availability: In stock
  • Buy 3 for $63.55 each and save 3%
  • Buy 5 for $61.55 each and save 6%
  • Buy 10 for $59.55 each and save 9%

The most competitive price red dot alignment solution for industrial and high tech use

Employing 660nm red laser diode as beam emitting source, being made with mature laser diode tech and mass production, the finished product of 660nm red dot laser module just assures increasing stability red dot projection, and the lowest price dot aligning solution for precise device manufacturing works. Direct diode emission 660nm red laser gets featured advantages of easy operation, quick response, good direction and high precision.

Wide output power of 5mW to 100mW enables highly clear dot alignment. Import 660nm red laser diode and metal heat sink cooling system are integrating into durable 16mm and 26mm diameter tube, assuring increasing beam stability and highly clear red dot instruction for multiple work distances.

AC/DC adapter assures continuous red dot alignment. Equipping with 5V, 9V 1000mA DC power supply, 660nm red dot laser module enables continuous red laser beam emission. The genuine dot alignment gets no affect by increasing temperature.

Durable aircraft used aluminum alloy housing tube made 660nm red laser enables wide range operating temperature stabilization, and highly stable red dot projection under multiple application fields, including mechanical moving or shocking etc.

APC, ACC driving circuit ensures high beam stability in continuous dot alignment use. 660nm red dot laser module maintains constant output power and electric current supply, no laser light decay or blur. The genuine red dot alignment gets up to 85% beam stability under operation within 8 to 10 hours.

Technical parameters:

Item Red Dot Laser Module
Wavelength (nm) 660nm
Output power (mW) 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW
Laser Class IIIB
Beam thickness at aperture (mm) 4.2mm×2.5mm
Beam divergence (mrad) 5mrad
Beam mode (before optics) TEM
Focus adjustable? Yes
Operating voltage(v)  5mW-20mW:DC=5V; 30mW-100mW:DC=9V
Operating current (mA)  I<1000mA
Operating temperature(℃) 10℃~45℃
Storage temperature(℃) -10℃~50℃
Dimension  5mW-20mW: D16mm×L71mm;30mW-100mW: D26mm×L150mm
Expected lifetime (hours) ≥8000 hours
Warranty Period 180 days

Applications: laser marking machine, laser engraving machine, military dot positioning and targeting, drilling system, lab experiment and scientific research works etc

Packing lists: 1 660nm red dot laser module and 1 AC/DC adapter

Note: The use of high power 660nm red dot laser module up to 50mW to 100mW should wear correct laser safety goggles and avoid eye exposure to beam aperture. Do be careful with high power red lasers and enjoy high precision red dot alignment at great distance.
