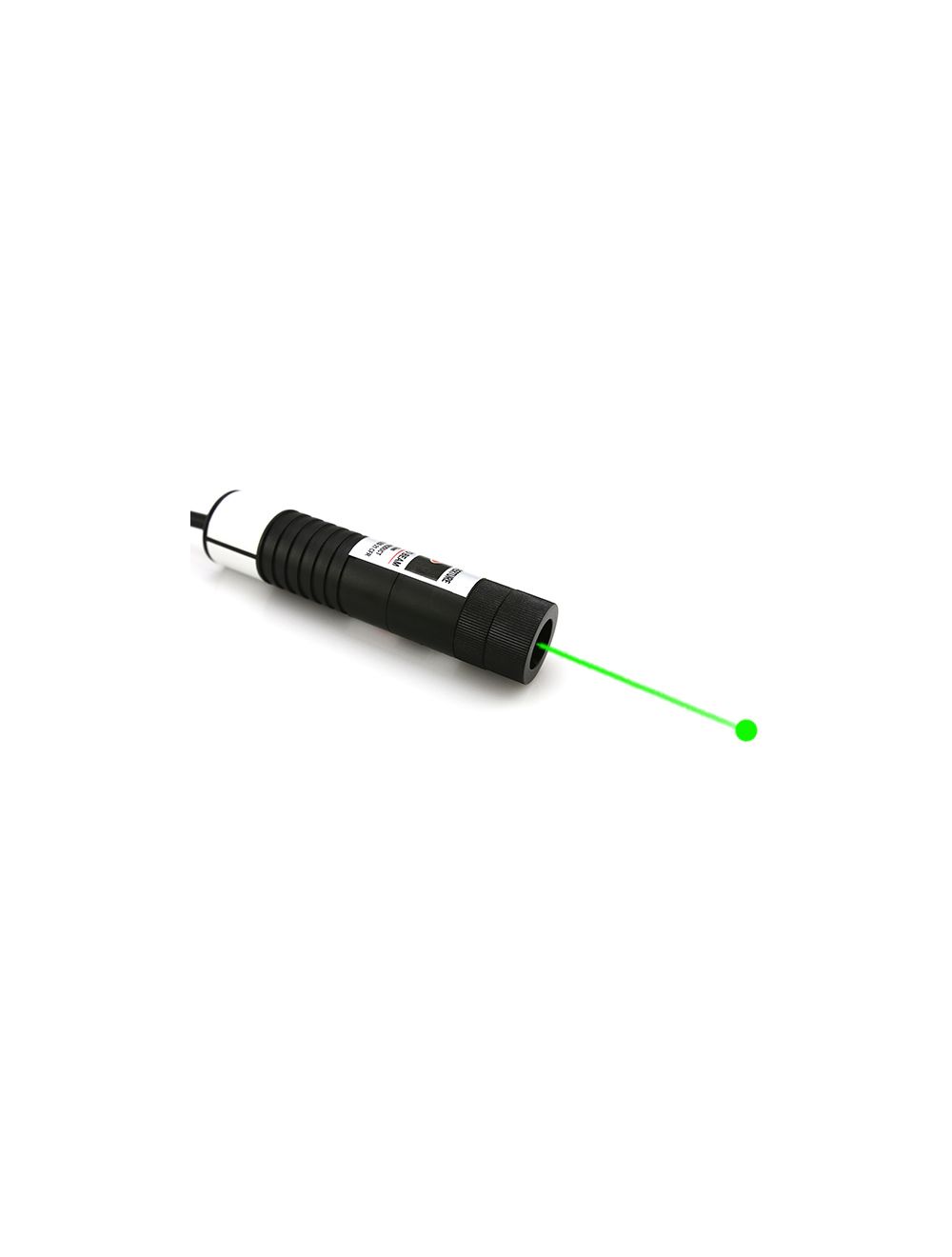

515nm Green Laser Diode Module

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $129.98

Special Price $119.95

  • Buy 2 for $116.98 each and save 3%
  • Buy 5 for $112.18 each and save 7%
  • Buy 10 for $106.99 each and save 11%

Quick Overview

Direct diode 515nm green laser module just makes the most efficient direction green laser beam radiation directly from its internal laser diode. It provides highly visible forest green beam for a wide range of OEM laser applications, industrial alignment, medical and scientific solutions. Available with special thermal emitting control system, this green laser module makes stable laser radiation with low power consumption.

* Required Fields

Details

515nm direction emission green laser diode module adopts compact version design, offers the most professional OEM laser solutions, alignments, lab experiment and medical applications. The forest green laser beam is workable for extremely visible laser beam desired fields.

Wide range of power levels allows different targeting distance. Forest green 515nm laser module equips with the CW modulation optical option and adjustable focus lens, fulfilling different green laser beam positioning requirement.

515nm green laser diode direction emission assures stable laser radiation. The highly visible green laser beam is extremely stable. Power stability keeps better than 5% over 8 hours. This laser module provides excellent solution for visual alignment, OEM laser application, military targeting and positioning etc.

Superior features:

◆ Compact design of 16mm diameter
◆ Output power level of 5mW ~ 50mW
◆ High reliability and high concentricity
◆ Aircraft used aluminum housing with anodized treatment
◆ Focus adjustable lens
◆ CW modulation

Technical Data:

Item Green Laser Diode Module
Wavelength (nm) 515nm
Output power (mW) 5mW, 10mW, 20mW, 30mW
Laser Class IIIa, IIIb
Beam thickness at aperture (mm) <1.2mm
Beam divergence (mrad) <1mrad
Beam mode (before optics) TEM
Focus adjustable? Yes
TTL Modulation NO
Operating voltage(v)  5mW-20mW: DC=3V, 30mw-50mW:DC=8.4V
Operating current(mA) 5-20mW: I<500mA;30-50mW: I<1000mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  5mW-20mW:D16mm×L71mm,30mw-50mW:D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Green laser diode module
2. DC input power Supply optional

Attention: For high powered or OEM 515nm green laser diode module, please contact us free at support@berlinlasers.com.
