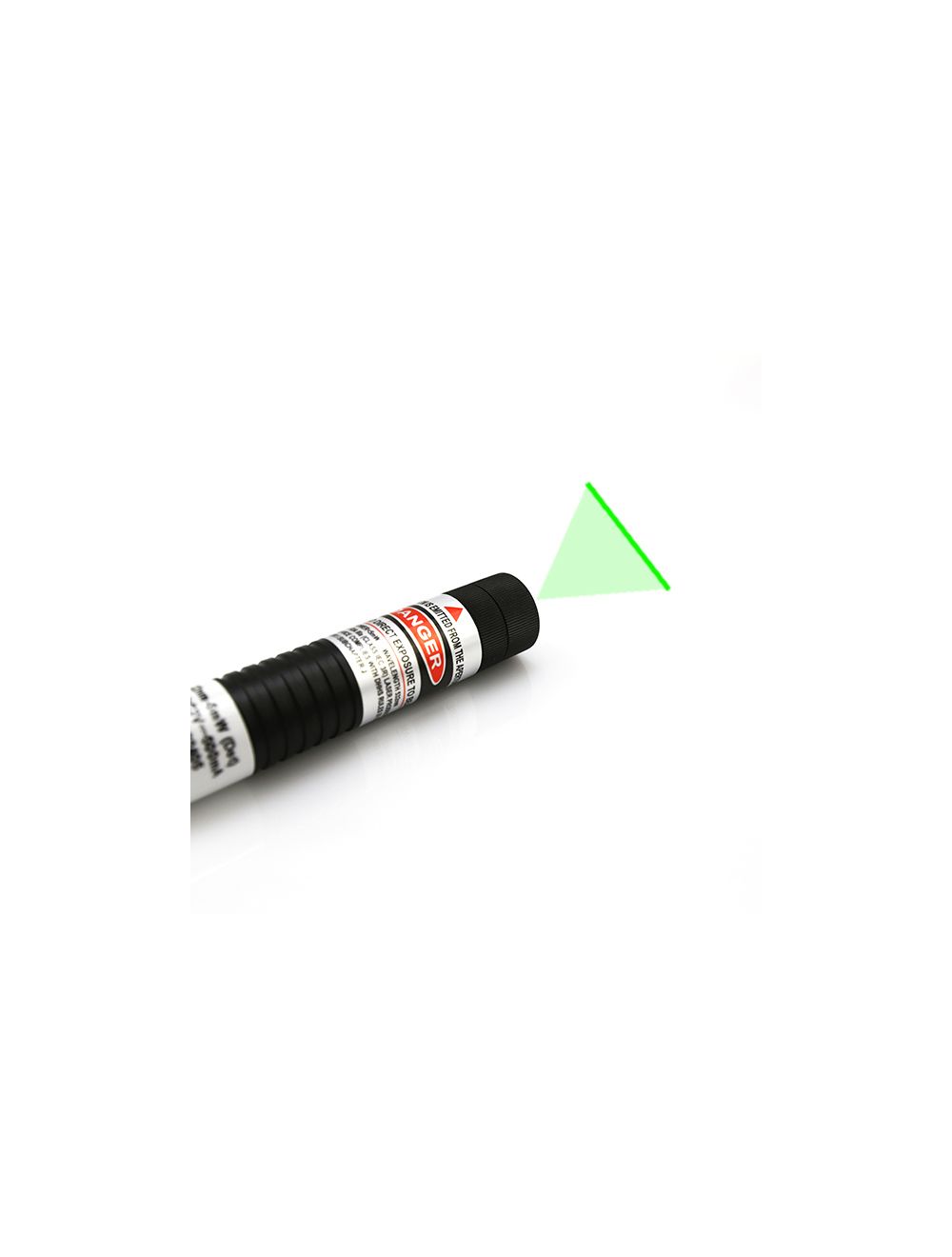

532nm Glass Lens Green Laser Line Generator

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $129.98

Special Price $91.99

  • Buy 3 for $89.99 each and save 3%
  • Buy 5 for $87.99 each and save 5%
  • Buy 10 for $85.99 each and save 7%

Quick Overview

532nm glass lens green laser line generator obtains super high laser beam transmittance and high linear quality green line source for industrial machinery processing and high tech line alignment works. Employed by high quality 532nm green DPSS laser tech and wide range optic lens degree from 10 degree to 110 degree, this 532nm green laser module fulfills the highest level of accuracy and high speed line alignment with different line length. Correct options of output power and optic lens makes sure of easy and convenient line positioning work effectively.

* Required Fields

Details

Employed by durable aircraft used aluminum alloy housing, 532nm glass lens green laser line generator bears wide range environmental temperature, generating highly stable and reliable green line in long term continuous line alignment work. Green laser module allows easy installation and free adjustment of green line thickness and line direction, getting wonderful line alignment work for laser cutting work, image processing system, lab experiment, military targeting, sand mill, and textile garment processing issue etc.

◆ DC input power supply assures constant laser line alignment stably.
Supported by 3V to 4.2V DC input power supply, 532nm green laser line generator allows wide output power of 5mW to 100mW, keeping the brightest green line instruction, also bearing harsh occasion including strong interference, strong static etc.

◆ Glass coated lens made green laser module keeps no decay light work constantly.
532nm green laser line device configures glass coated lens into its 16mm or 26mm diameter tube, equipped with metal heat sink cooling system, obtaining high linear quality green line pointing and efficient thermal conductivity, and allowing maximum working time of 8 to 10 hours a day.

◆ APC driving circuit design keeps constant green laser line targeting easily.
Within 5mW to 100mW, APC driving circuit gets perfect control from intelligent feedback system, making sure of constant output power and electric current supply. Just less possibility of laser tube burning out or damage.

Key Features:

High speed and no mistake line alignment after green laser line generator gets connection with DC power supply in correct operating voltage.
Wide output power optics including 5mW, 10mW, 20mW, 30mW, 50mW, 80mW and 100mW assures clear and precise line alignment under all occasions accept sunlight.
Portable design with 16mm and 26mm tube diameters, enables easy install, operate and adjustment.
Wide optic lens degree range of 10°, 20°, 30°, 45°, 60°, 110°obtains different laser beam fan angle and green line length.

Technical parameters:

Item Glass Lens Green Laser Line Generator
Wavelength (nm) 532nm
Output power (mW) 5mW-100mW
Available Fan Angle(degrees) 10°, 20°, 30°, 45°, 60°, 110°
Laser Class IIIB
Beam thickness at aperture (mm) <2.0mm; At 2m distance: <2.0mm
Beam divergence (mrad) 1-1.5mrad
Beam mode (before optics) TEM00
Focus adjustable? No
Operating voltage(v)  5mW-30mW: DC=3.0V; 50mW-100mW: DC=4.2V
Operating current (mA)  5mW-30mW: I<500mA; 50mW-100mW: I<1000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D16mm×L91mm; 50-100mW: D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Note:
Only trained users or skilled users are allowed to operate 532nm glass coated lens green laser line generator. Users should adjust 532nm green laser module to the best condition and operate under special alignment equipment.

Warning! 532nm green laser module emits radiation that can be harmful to human eyes. Never look directly into the laser aperture. Any exposure to laser beam at close distance can cause eye damage. Remember to wear laser safety goggles for any laser module up 30mW to 100mW.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Glass Lens green laser line generator
2. DC input power Supply

Attention: For high powered or OEM 532nm glass lens green laser line generators, please contact us free at support@berlinlasers.com.
