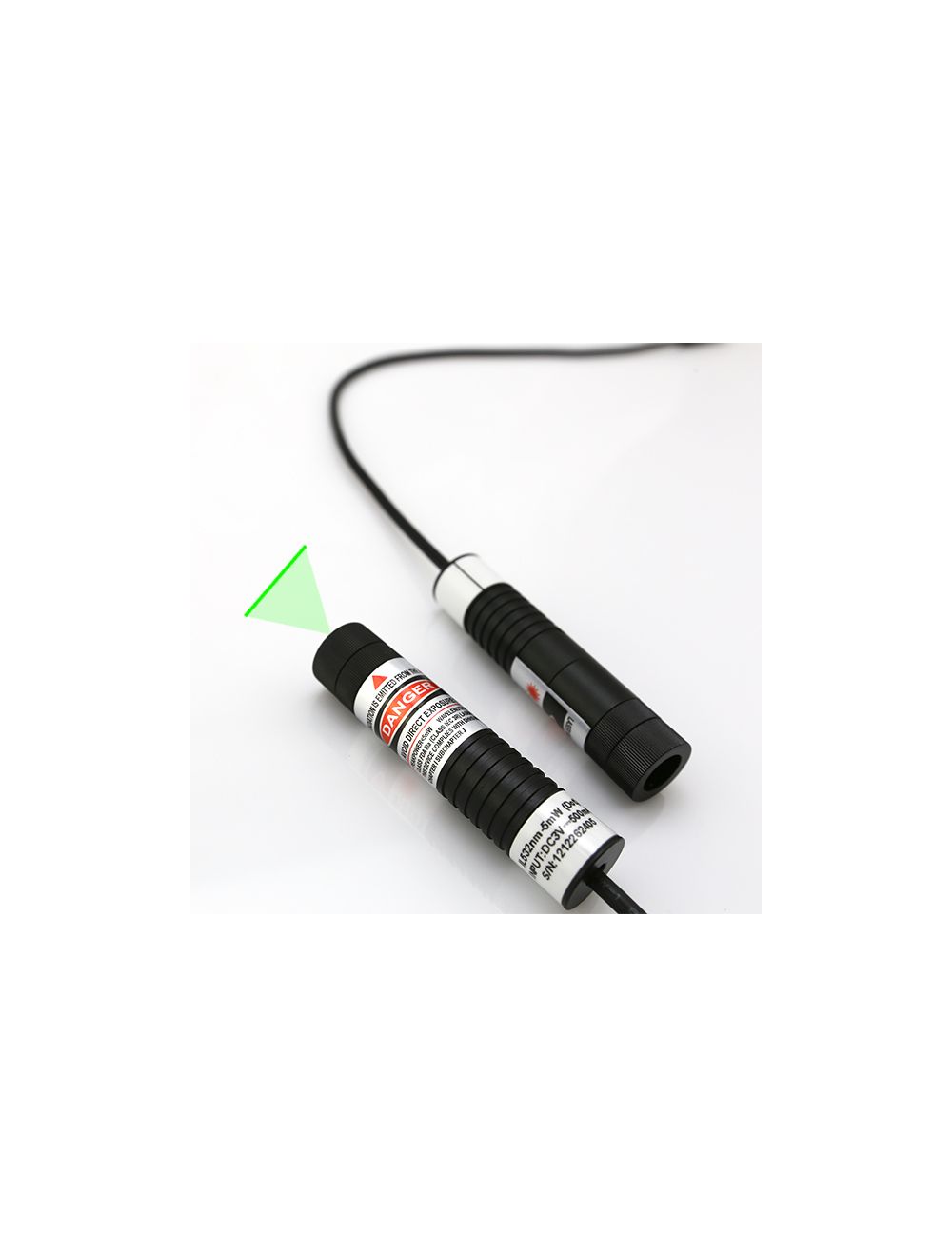

532nm Separate Crystal Lens Green Laser Line Generator

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $139.99

Special Price $119.98

  • Buy 3 for $117.98 each and save 2%
  • Buy 5 for $115.98 each and save 4%
  • Buy 10 for $113.98 each and save 6%

Quick Overview

532nm separate crystal lens green laser line generator employs qualified 532nm green DPSS laser crystal and metal heat sink cooling system, integrated into compact and high duration aircraft used aluminum alloy housing tube, getting high stability and up 80% high uniformity green line targeting clearly and precisely. This uniformity distribution green laser module keeps high fineness green line with same line brightness generating, enables no mistake and high speed line alignment for all industrial precise device manufacturing and high tech line alignment works etc.

* Required Fields

Details

As the first line alignment solution for industrial precise machinery processing, 532nm green laser line generator gets the best use of qualified separate crystal lens within 10 degree to 93 degree, keeping high uniformity green line with various line lengths and high straightness. This green laser module allows easy work after connection with DC input power supply, keeping the most reliable green reference line instruction under strong interference, strong static etc.

◆ DC input power supply keeps constant line targeting and good stabilization of harsh occasion.
Supported by 3V or 4.2V DC input power supply, green laser line generator supports maximum output power of 100mW, keeps constant green line source generation immediately. Green laser module keeps stable line alignment within 100V to 250V input current, applicable for majority countries and regions.

◆ High Linear quality and high uniformity green line targeting from separate crystal lens.
Employed by separate crystal lens, 532nm green laser module generates up to 80% uniformity green laser line, fulfilling the highest level of accuracy line alignment for all industrial and high tech line alignment use, no light decay in long term use.

◆ Durable metal housing and metal heat sink cooling system ensuring efficient thermal stabilization.
Green laser module employs aircraft used aluminum alloy housing and metal heat sink cooling system, getting perfect configuration with APC driving circuit, making sure of constant green laser line targeting stably within 8 to 10 hours a day.

Key features:

Reliable green laser line alignment within wide environmental temperature and harsh occasions
Correct output power and separate crystal lens degree assures no mistake and high speed line alignment easily
16mm and 26mm diameter laser tube enables easy installation, operation and adjustment.
Wide output power range from 5mW to 100mW assures clear line alignment under multiple occasion accept sunlight.
Wide optic lens degree within 10 degree to 93 degree generates highly uniform green laser line within 0.5 meter to 6 meters line length.

Technical parameters:

Item Separate Crystal Lens Green Laser Line Generator
Wavelength (nm) 532nm
Output power (mW) 5mW-100mW
Available Fan Angle(degrees) 16°, 20°, 30°, 45°, 50°, 60°, 93°
Laser Class IIIB
Beam thickness at aperture (mm) <2.0mm; At 2m distance: <2.0mm
Beam divergence (mrad) 1-1.5mrad
Beam mode (before optics) TEM00
Focus adjustable? No
Operating voltage(v)  5mW-20mW:DC=3.0V; 30mW-100mW:DC=4.2V
Operating current (mA)  5mW-20mW: I<500mA; 30mW-100mW: I<1000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  5mW-20mW: D16mm×L71mm;30mW-100mW: D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Note:
Only trained users or skilled users are allowed to operate 532nm glass separate crystal lens green laser line generator. Users should adjust 532nm green laser module to the best condition and operate under special alignment equipment.

Warning! 532nm green laser module emits radiation that can be harmful to human eyes. Never look directly into the laser aperture. Any exposure to laser beam at close distance can cause eye damage. Remember to wear laser safety goggles for any laser module up 30mW to 100mW.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. 532nm Separate Crystal Lens Green Laser Line Generator
2. DC input power Supply

Attention: For high powered or OEM 532nm green laser line generator, please contact us free at support@berlinlasers.com.
