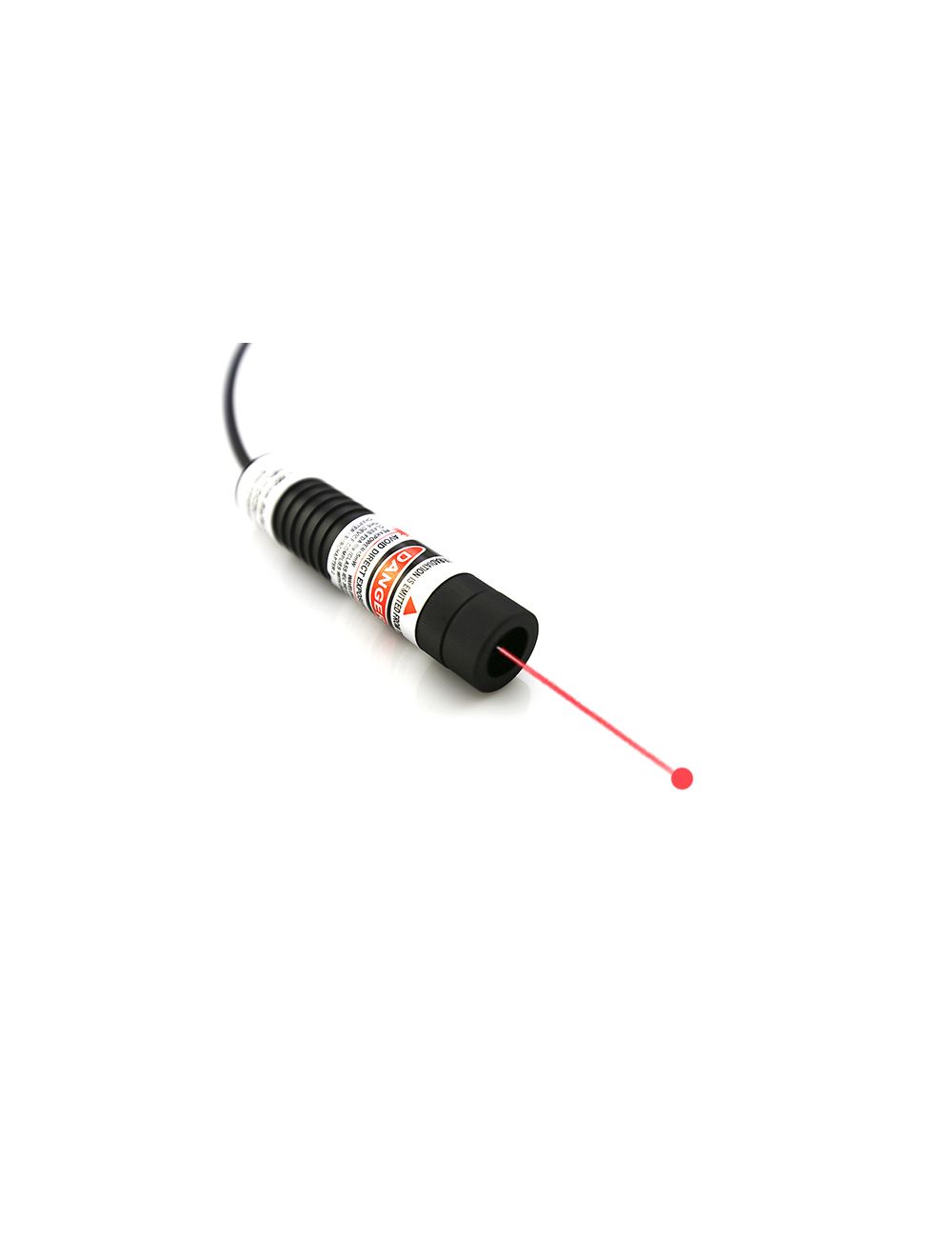

650nm Red Laser Diode Module

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $76.98

Special Price $64.99

  • Buy 2 for $62.98 each and save 4%
  • Buy 5 for $60.99 each and save 7%
  • Buy 10 for $58.99 each and save 10%

Quick Overview

650nm red laser module offers users the most economic laser source radiation solution for industrial alignment, military targeting, medical and scientific positioning. It combines high quality 650nm red laser diode, optics, durable housing and constant current driving circuit board, ensuring high stability red laser source generation with less power, better thermal emitting and longer serving lifetime.

* Required Fields

Details

650nm red laser diode module manufactured from Berlinlasers combines with mature laser tech 650nm red laser diode with qualified optics, constant current driving circuit board, thermal emitting housing. It is providing the most reliable red laser source workable for a wide application fields.

Direct diode emission obtains even stable laser radiation. Direct diode emission 650nm red laser module offers high stability red laser source for industrial alignment, medical device targeting, scientific, military positioning etc.

Wide power range level laser modules with compact design. Red laser modules allow wide power level of 5mW to 100mW, available with compact design of 16mm and 26mm diameters. Adjustable focus lens and CW modulation optical option provide extremely bright and stable re laser source for various applications. Economic 650nm red laser diode modules obtains better than 5% stability over 8 hours.

Constant current supply for red laser module with stabilized thermal emitting. The adoption of durable aircraft used aluminum house assures sufficient thermal conductivity, calibration and shocking preventing. The internal APC driving circuit board enables always stable red laser beam radiation constantly.

Technical Data:

Item Red Laser Diode Module
Wavelength (nm) 650nm
Output power (mW) 5mW, 10mW, 20mW, 30mW, 50mW, 80mW,100mW
Laser Class IIIa, IIIb
Beam thickness at aperture (mm) <4.2mm*2.5mm
Beam divergence (mrad) <5mrad
Beam mode (before optics) TE
Focus adjustable? Yes
TTL Modulation NO
Operating voltage(v)  5mW-30mW:DC=3.0V; 50mW-100mW:DC=4.2V
Operating current (mA)  5mW-30mW: I<500mA; 50mW-100mW: I<1000mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  5mW-30mW: D16mm×L71mm;50mW-100mW: D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Red laser diode module
2. DC input power Supply optional

Attention: For high powered or OEM 650nm red laser diode module, please contact us free at support@berlinlasers.com.
