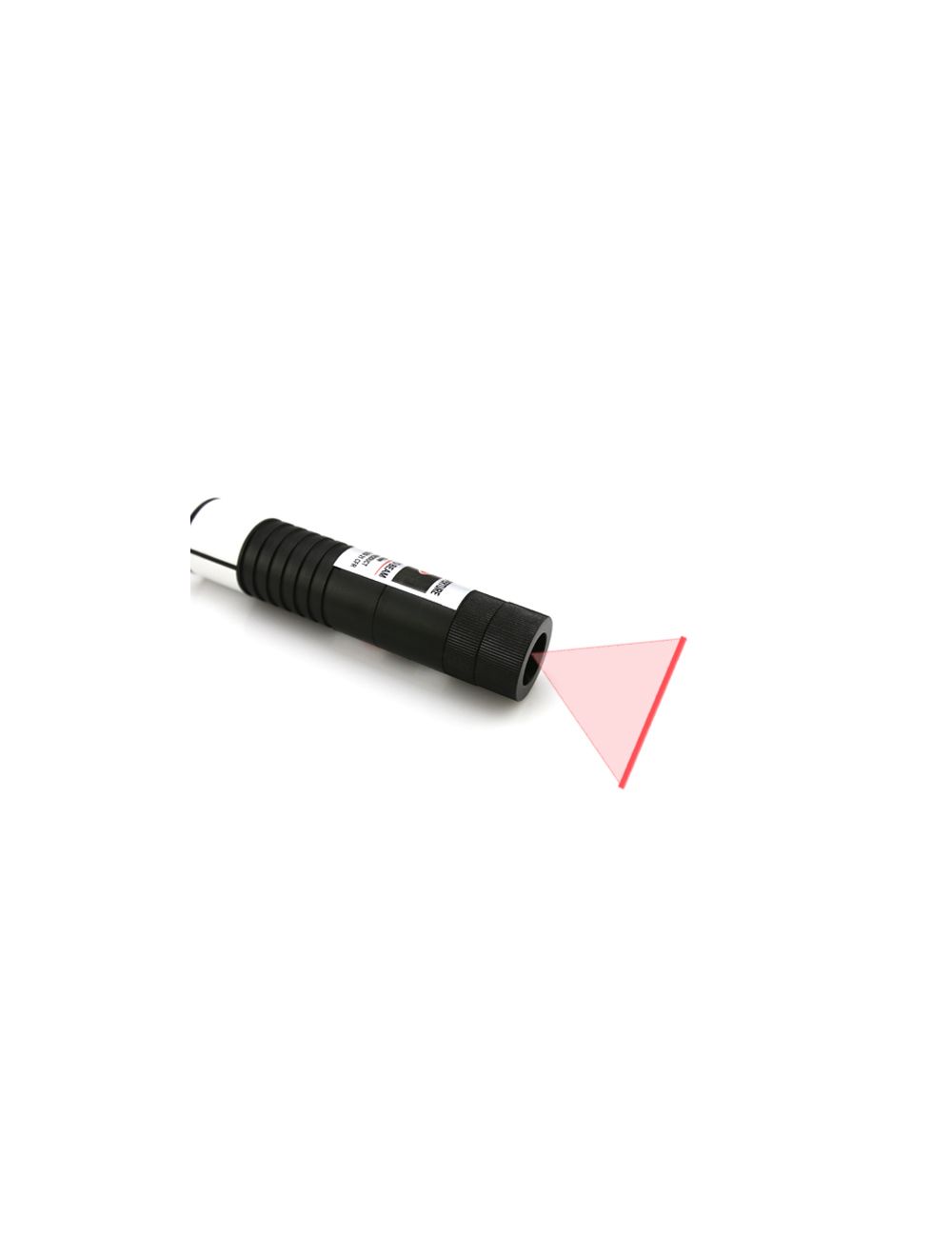

650nm Red Line Laser Module Non-gaussian Distribution

Economic 650nm red laser line generator selects glass cylindrical lens to generate a high straightness and high brightness red laser line. According to special non-Gaussian beam intensity uniform distribution, red laser module just obtains high level of accuracy and precision red laser line alignment for all industrial and high tech fields.

was $109.99 Special Price $88.18
Availability: In stock
  • Buy 2 for $85.99 each and save 2%
  • Buy 5 for $82.99 each and save 6%
  • Buy 10 for $79.98 each and save 9%

Non-gaussian 650nm red line laser module provides a type of calibration efficient red laser line with high uniform beam intensity distribution. Available with wide range of laser fan angles and output power from 5mW to 100mW, focusable red laser module is providing precise straight laser line source for various alignment and positioning.

◆ Focused laser line source for industrial alignment, laser levels and cutting.

650nm red line laser module makes high uniform red line in intensity, high straightness. Non-gaussian line never faded away from middle to both ends, but keeping laser line uniformity, strong laser beam transmittance.

◆ Durable anodized aluminum housing with compact design included.

Laser line generator selects 12mm diameter laser tube, containing complete set of genuine 650nm red laser diode, constant current and intelligent control driving circuit and metal heat sink, generates high stability red laser line precisely. It gets superior anti-interference, anti-statistic, thermal conductive and protection from mechanical shocking etc.

Key features:

Focused laser line with high uniformity
Import 650nm red laser diode, long lifetime of more than 8000 hours
Wide selection of non-Gaussian lens degree: 16°, 20°, 30°, 45°, 50°, 60°, 93°
Wide power range: 5mW, 10mW, 20mW, 50mW, 80mW, 100mW
High laser beam transmittance, no laser light decay in continuous laser line generation
Efficient thermal emitting, operable within -10-75°
Power and time saving, rapid laser line positioning.

Technical Parameter:

Item Red Line laser Module Non-Gaussian
Wavelength (nm) 650nm
Output power (mW) 5mW-100mW
Available Fan Angle (degree) 16°- 93°
Beam diameter at aperture (mm) <2.0mm; at 2m diameter: <2.0mm
Beam divergence (mrad) 5 mrad
Beam mode TE
Focus adjustable? Yes
Operating voltage(v)  5mW-20mW:DC=3.0V; 30mW-100mW:DC=4.2V
Operating current (mA)  5mW-20mW: I<500mA; 30mW-100mW: I<1000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  5mW-20mW: D16mm×L71mm;30mW-100mW: D26mm×L150mm
Expected lifetime (hours) ≥5000 hours
Warranty 6 months


Only trained people are allowed to operate 650nm red line laser module. People should adjust the laser line generator to the best condition and operate under special alignment equipment.

Warning! Laser module emits radiation that can be harmful to human eyes. Never look directly into the laser aperture. Any exposure to laser beam at close distance can cause eye damage.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Red line laser module
2. DC input power Supply

Attention: For high powered or OEM line laser modules, please contact us free at
