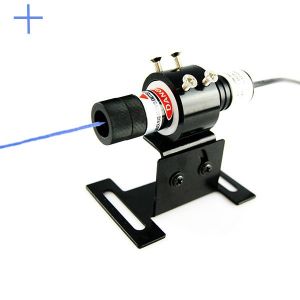

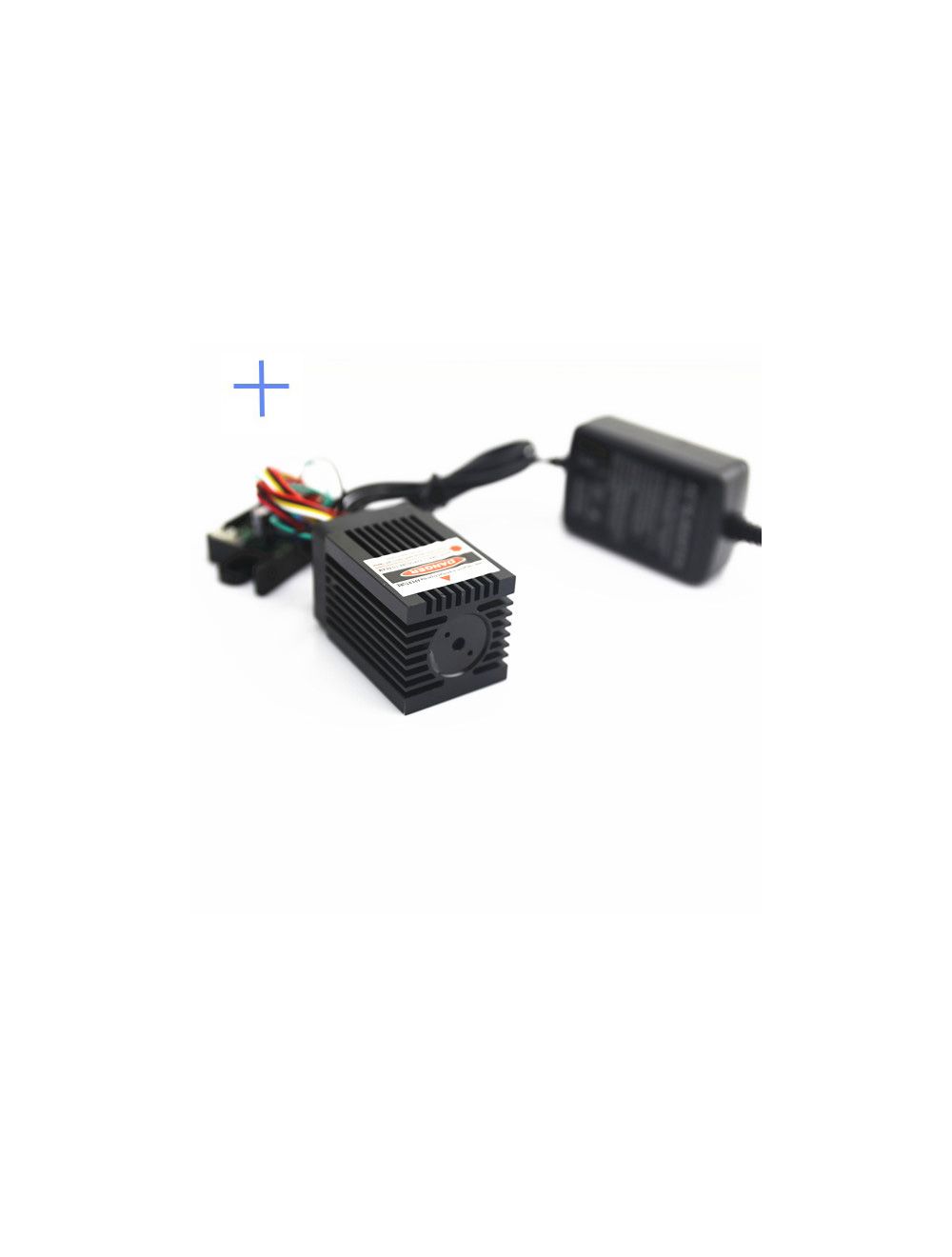

High Power 445nm 150mW-500mW Blue Cross Line Laser Module

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $339.98

Special Price $299.98

  • Buy 3 for $297.98 each and save 1%
  • Buy 5 for $294.98 each and save 2%
  • Buy 10 for $291.98 each and save 3%

Quick Overview

High power 445nm 150mW to 500mW blue cross line laser module employs import 445nm blue laser diode, separate metal heat sink cooling system, and APC, ACC driving circuit board, generating the most intense and powerful blue laser light source in long term use. The application of qualified glass coated lens with selectable optic lens degree ensures high linear quality and high straightness blue vertical and horizontal laser lines with accurate 90 degrees. This industrial stabilized high power 445nm blue laser module fulfills excellent cross line alignment solutions for prominent institutes, labs, colleges and universities etc.

* Required Fields

Details

In need of serious accurate and stable cross line alignment immediately? High power 445nm 150mW to 500mW blue cross line laser module gets excellent thermal stabilization, including separate metal heat sink, copper made 445nm blue laser diode core part and aircraft used aluminum alloy housing material, which is assuring the best thermal conductivity, and the most stable blue two perpendicular lines generation with accurate 90 degrees. Correct selected output power and glass lens high power 445nm blue laser modules fulfill the highest level of accuracy cross line alignment for multiple application fields, including laser show, building construction, decoration, laser therapy, military targeting, communication, and lab experiment etc.

◆ High output power range ensures long distance cross alignment efficiently.

Employed with high power 445nm blue laser diode, available within 150mW, 200mW, 300mW, 400mW and 500mW, high power 445nm blue cross line laser module generates high transmittance and high intensity blue laser beam emission, and highly visible blue cross line source in distance. Import 445nm blue laser diode ensures improving laser beam stability up 40% in continuous cross line alignment.

◆ Qualified optic lens ensures highly accuracy measurement conveniently.

Selected from 10, 15 and 110 degree glass coated lens, high power 445nm cross line laser module generates high linear quality and high straightness cross line source with different cross line length in use. Passing through extremely strict laser beam stability test up 24 hours, the genuine blue cross line alignment allows easy adjustment of line thickness and highly stable performance in long term use.

◆ DC input power supply fulfills continuous cross line alignment.

AC/DC adapter provides constant electric power for high power 445nm blue cross line laser module, and gets extra larger space reserving for thermal emitting in use. Specially designed electric wires are high temperature and corrosion resistance, maintaining highly stable blue cross line emission under strong interference and strong static etc.

◆ APC, ACC driving circuit maintains constant cross line generation stably.

APC, ACC driving circuit board protects high power 445nm blue cross line laser module from seriously increasing temperature and electric current impacting, reducing possibility of laser diode and electric driving circuit burning out or damage. Blue cross line alignment maintains up to 80% beam stability within 8 to 10 hours daily use.

Technical parameters:

Item High Power Blue Cross Line Laser Module
Wavelength (nm) 445nm
Output power (mW) 150mW, 200mW, 300mW, 400mW, 500mW
Available Fan Angle(degrees) 110°
Laser Class IIIB
Beam thickness at aperture (mm) At 2m distance: <2.5mm
Beam divergence (mrad) 2.5mrad
Beam mode (before optics) TEM
Focus adjustable? No
TTL Modulation No
Operating voltage(v)  DC=8.4V
Operating current (mA)  I<3000mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Note:

High intensity and powerful blue laser radiation and laser reflection are produced from laser beam aperture of high power 445nm 150mW to 500mW blue cross line laser module. It only allows operation by skilled users or professionals under proper adjustment to the best condition and special alignment devices.

Avoid eye exposure from any powerful blue laser light at close distance so as to avoid hurt or damage for human eyes and skins. Do not stare at powerful blue light, and remember to wear professional 445nm wavelength preventing laser safety goggles & glasses.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 8.4V ,3000mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. High Power 445nm Blue Cross Line Laser Module
2. DC input power Supply

Attention: For high powered or OEM high power 445nm blue cross line laser modules, please contact us free at support@berlinlasers.com.
