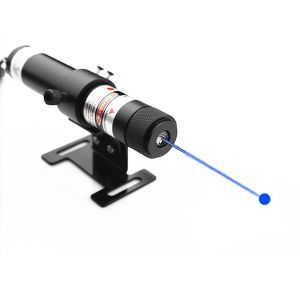

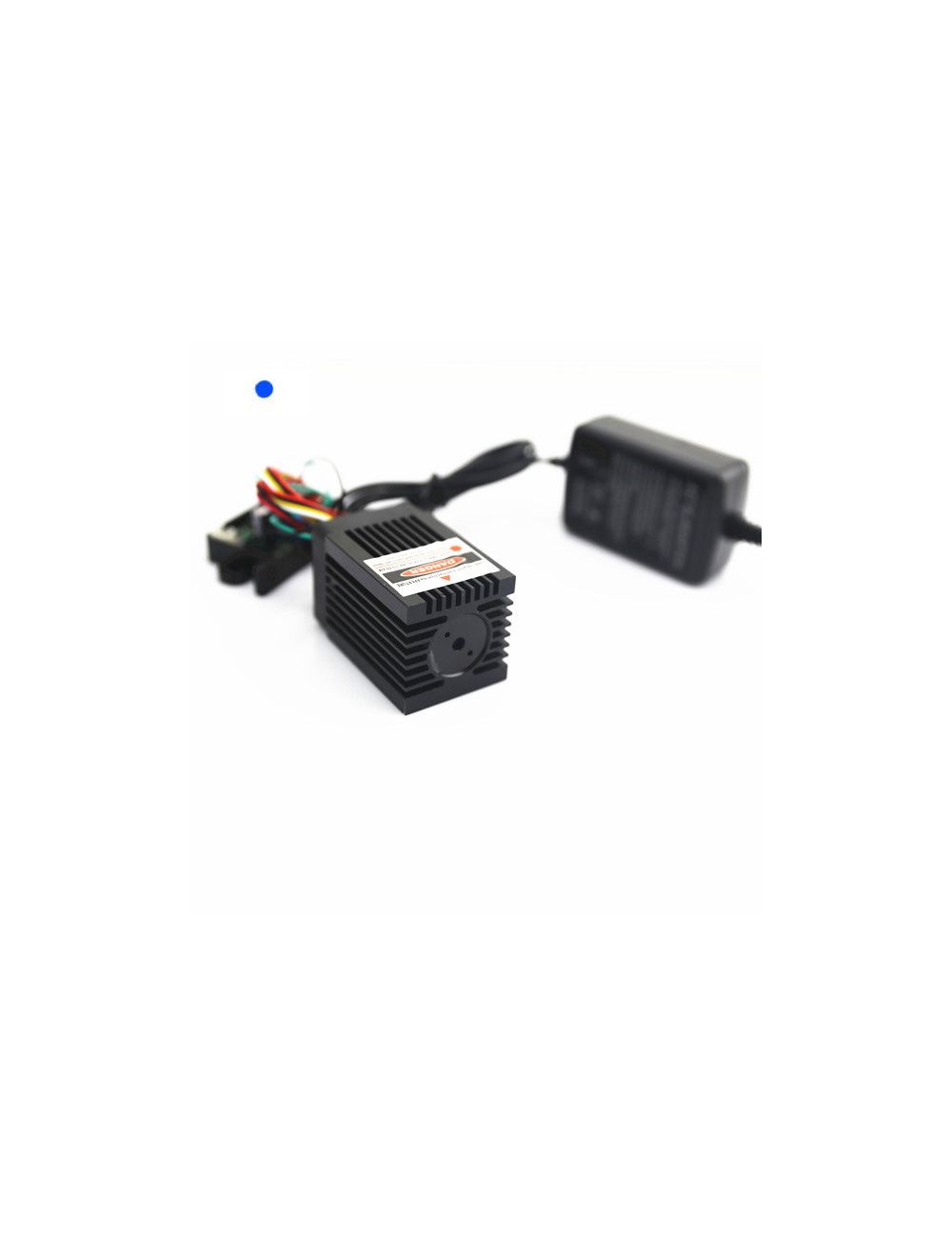

High Power 445nm 150mW-500mW Blue Laser Diode Module

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $305.99

Special Price $279.98

  • Buy 3 for $277.99 each and save 1%
  • Buy 5 for $275.99 each and save 2%
  • Buy 10 for $273.99 each and save 3%

Quick Overview

Integrated with import 445nm blue laser diode within high power range of 150mW to 500mW, separate thermal emitting system and APC, ACC driving circuit board, high power 445nm blue laser diode module projects the most intense blue laser beam and the clearest blue reference dot alignment in long distance. This industrial stabilized 445nm blue laser module adopts external DC input power supply, gets improving beam stability and easy adjustment of laser beam focus, fulfilling high level of accuracy blue laser dot alignment for institutes, lab, prominent colleges, university etc.

* Required Fields

Details

Being made with full consideration of environmental stabilization, high power 445nm 150mW to 500mW blue laser diode module adopts high durable aircraft used aluminum alloy housing and copper made blue laser diode core part, obtaining superior thermal conductivity and highly stable blue reference dot targeting under all harsh working occasions. After easy installation and adjustment of dot targeting direction, high power 445nm blue laser makes super the highest laser beam transmittance, and the most convenient blue dot projection for industrial, 3D printing, laser medical treatment, scientific research, laser show, laser displaying dot alignment works etc.

◆ DC power supply ensures continuous blue laser dot alignment.

The adoption of AC/DC adapter converts electric current within 100V to 240V into lower voltage of 9V 1000mAh DC input power supply, ensuring the most convenient and rapid blue laser dot alignment in major countries and regions. Extending wires for high power 445nm blue laser module and DC power supply are high temperature and corrosion resistance. The genuine blue laser dot alignment maintains stable and reliable performance under strong interference and static.

◆ Adjustable focus makes sure of the most accurate dot alignment in distance.

Import 445nm laser diode made high power blue laser module generates the most intense blue laser beam emission in distance. After quite easy adjustment of laser beam focus, blue laser light is concentrated into the most compact diameter blue reference dot for long distance and high lighting dot aligning fields.

◆ Qualified optic lens assures super clear dot alignment constantly.

Employed by excellent quality glass coated lens, the genuine dot alignment with high power 445nm blue laser module ensures highly clear dot projection, without any appearance of laser light decay or blur in long term use. Passing through strict laser beam stability tests, including rapid electric current adding, alternative high and low temperature changing test and aging preventing test, it provides high stability dot alignment under operation by skilled users or professionals.

◆ APC, ACC driving circuit assures long term constant blue dot projection.

Under rapid temperature increasing of high power 445nm blue laser diode module, APC, ACC driving circuit board ensures efficient preventing of serious electric current impacting, making sure of up to 80% laser beam stability in continuous dot aligning work. It gets reduced possibility of 445nm blue laser diode and electric driving circuit burning out or damage, obtaining more than 8000 hours serving lifetime in use.

Key features:

◆High power 445nm blue laser module gets featured advantages of easy operation, low time consumption and reduced relying on professional skills.
◆High power range of 150mW to 500mW ensures excellent blue laser light source and the clearest dot generation in distance.
◆CW modulation

Technical parameters:

Item High Power Blue Laser Diode  Module
Wavelength (nm) 445nm
Output power (mW) 150mW, 200mW, 300mW, 400mW, 500mW, 1000mW
Laser Class IIIB, IV
Beam thickness at aperture (mm) <2.5mm
Beam divergence (mrad) ≤2.5mrad
Beam mode (before optics) TEM
Focus adjustable? Yes
TTL Modulation NO
Operating voltage(v)  DC=9V
Operating current (mA)  I<1000mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Note:

Intense beam high power 445nm 150mW to 500mW blue laser diode module allows operation by skilled users or professionals only. It allows operation easily under proper adjustment to the best condition and special alignment device.

High intensity blue laser beam and thermal energy might cause serious hazard to human eyes. Avoid eye exposure at close distance. Do remember to wear 445nm wavelength preventing laser safety goggles for every time use of blue laser dot alignment.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 9V ,1000mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. High Power Blue Laser Diode Module
2. DC input power Supply

Attention: For high powered or OEM high power 445nm blue laser modules, please contact us free at support@berlinlasers.com.
