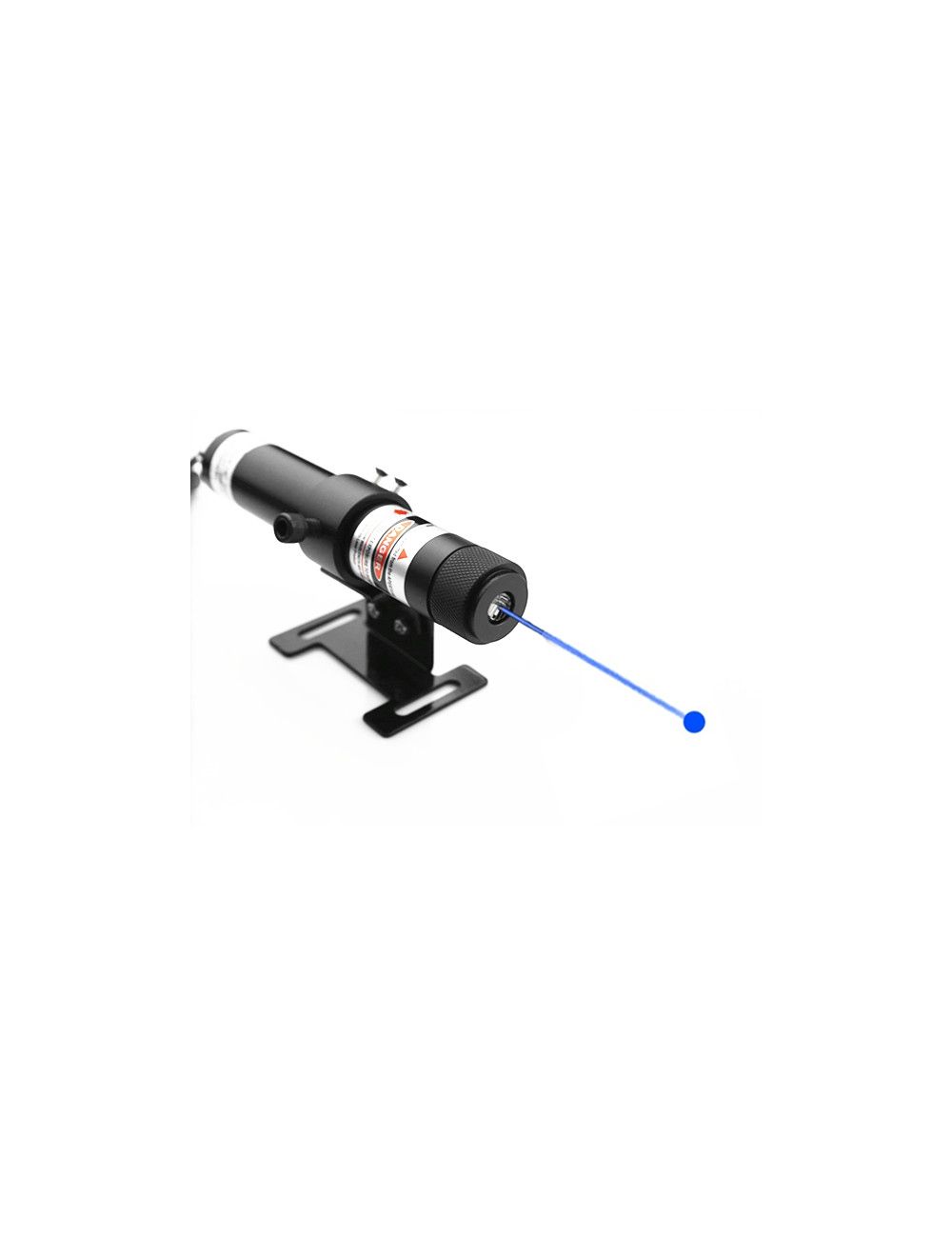

High Power 445nm Blue Dot Laser Alignment

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $306.99

Special Price $279.99

  • Buy 3 for $277.99 each and save 1%
  • Buy 5 for $275.99 each and save 2%
  • Buy 10 for $273.99 each and save 3%

Quick Overview

In need of even longer distance dot alignment? High power blue dot laser alignment is just providing the best and the most accurate blue reference dot targeting for all kinds of industrial and high tech dot measuring work fields. Employed by import high power 445nm blue laser diode and excellent metal heat sink cooling system, this direct diode emission made blue laser module assures easy installation and adjustment, and fulfilling the clearest blue reference dot targeting for various industrial, 3D printing, medical, scientific research , laser show, laser displaying dot alignment fields etc.

* Required Fields


High power 445nm blue dot laser alignment gets excellent equipment with import 445nm blue laser diode with copper raw material as its core part, and high duration aircraft used aluminum alloy housing material, assuring the best thermal conductivity, and improving laser beam stability of at least 40% in continuous blue dot aligning work. This high power blue laser module is very compactly designed and manufactured, allowing convenient blue dot instruction for those of prominent institutes, universities and labs etc.

● Adjustable focus design assures high accuracy blue dot alignment.

This compact structure blue dot laser alignment adopts free adjustment of laser beam focus design, ensuring high intensity blue laser beam concentration immediately, forming into the clearest dot instruction on various surfaces effectively.

● APC, ACC driving circuit assures constant dot alignment in long term use.

The intelligent feedback system makes sure of active action of constant increase temperature of laser module tube, protecting high power blue laser module from rapid increasing temperature. It keeps up to 80% beam stability and excellent laser light cycling use under long term blue reference dot targeting within 8 to 10 hours per day.

● Superior Thermal stabilization assures the most reliable blue reference dot targeting.

The adoption of external DC input power supply makes sure of constant electric power source supply for blue dot laser module, and larger space reserving as its metal heat sink cooling system. Under operation by skilled users or professionals, 445nm high power blue laser module assures reliable dot aligning under strong interference and static, without laser light decay or blur.

Key features:
Selectable output power from 150mW to 1000mW just assures accurate and rapid blue laser dot alignment under multiple work distances and lighting occasions.
Strictly tested blue laser module guarantees the most reliable dot aligning under harsh occasion, long term and long distance, no appearance of blue laser light dim or blur.
CW modulation

Technical parameters:

Item High Power Blue Dot Laser Alignment
Wavelength (nm) 445nm
Output power (mW) 150mW, 200mW, 300mW, 400mW, 500mW, 1000mW
Laser Class IIIB, IV
Beam thickness at aperture (mm) <2.5mm
Beam divergence (mrad) ≤2.5mrad
Beam mode (before optics) TEM
Focus adjustable? Yes
TTL Modulation NO
Operating voltage(v)  DC=8.4V
Operating current (mA)  I<3000mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days


High power 445nm blue dot laser alignment should only be used by skilled users or professionals under proper adjustment to the best condition and under special alignment equipment.

Users should avoid eye exposure at close distance since thermal energy might be hazard to human eyes. Never stare at powerful beam from high power 445nm blue laser module, and remember to wear proper 445nm wavelength preventing laser safety goggles.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 8.4V ,3000mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. High Power Blue Dot Laser Alignment
2. DC input power Supply

Attention: For high powered or OEM high power 445nm blue dot laser alignments, please contact us free at support@berlinlasers.com.
