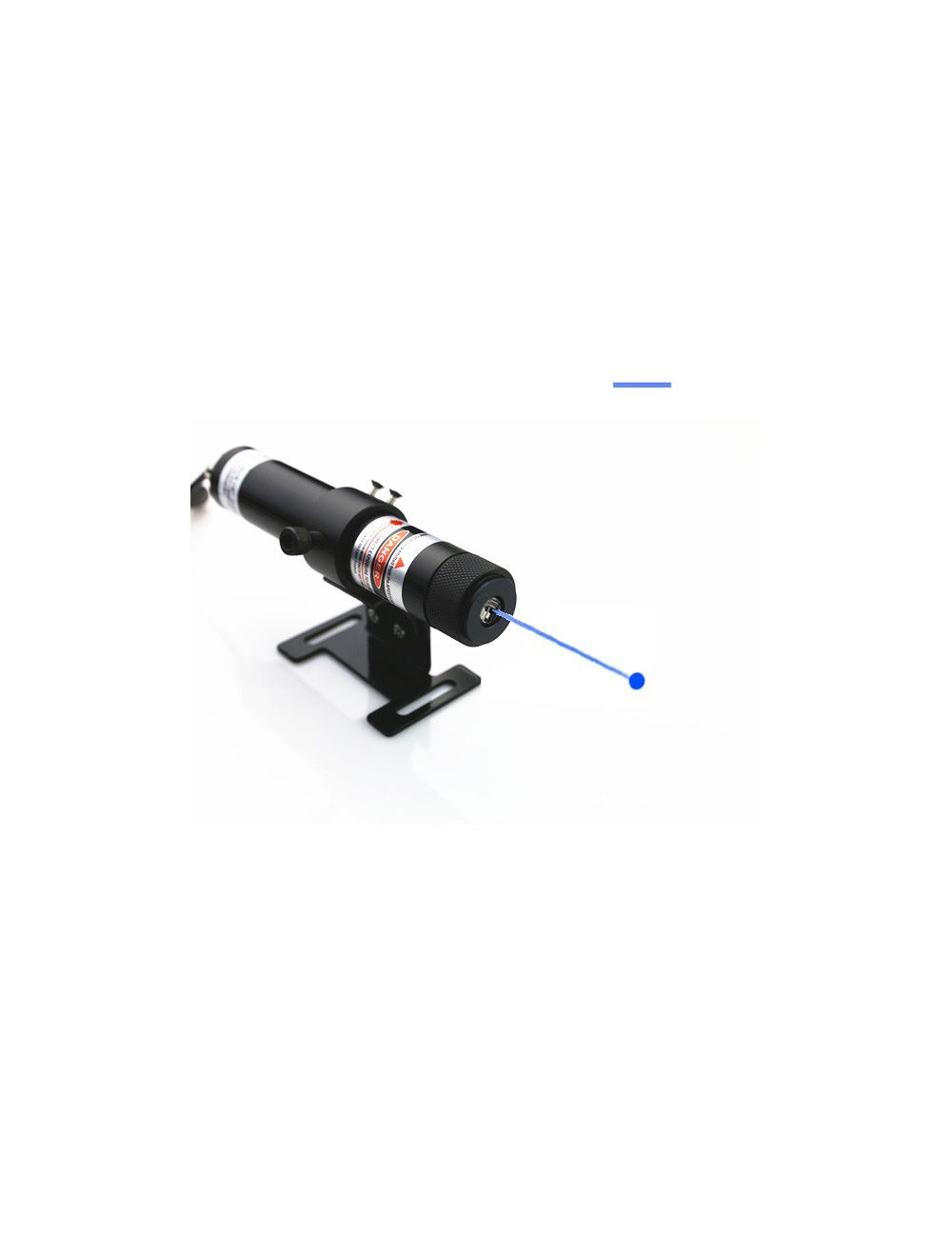

High Power Blue Line Laser Alignment

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $329.99

Special Price $298.99

  • Buy 3 for $296.99 each and save 1%
  • Buy 5 for $294.99 each and save 2%
  • Buy 10 for $292.99 each and save 3%

Quick Overview

Employed by qualified import 445nm blue laser diode and optic lens degree, high power 445nm blue line laser module guarantees the clearest and the most accurate blue reference line instruction for all high tech and precise device manufacturing works. This blue laser module keeps direct diode emission and wonderful equipment with metal heat sink cooling system, APC driving circuit board, ensuring improving blue line aligning stability in long term and long distance line measuring work fields. It is just the best blue laser line solution for prominent colleges, university, institutes and lab etc.

* Required Fields

Details

High power blue line laser alignment consists of qualified aircraft used aluminum alloy housing material, copper made laser diode core part, just achieving the best thermal conductivity and the most durable structure, supporting long term continuously blue reference line targeting for multiple occasions. Correct operating voltage DC input power supply provides constant electric current supply for 445nm blue laser module, which is just providing the best blue line aligning solutions for industrial laser line alignment, laser show, telecommunication, laser displaying, laser medical treatment etc.

● Selectable output power enables clear line alignment for multiple occasions.

Within wide output power range of 150mW to 500mW, high power blue line laser alignment is applied for all kinds of long term and long distance line alignment works. Strict laser beam stability test, including alternative temperature changing test, super rapid electric current adding test and aging preventing test has just assured the clearest blue line targeting, no beam decay or blur in use.

● CIntelligent feedback system assures good laser light cycling use and long lifetime.

High power 445nm blue laser module adopts APC, ACC driving circuit board design, equipped with basic thermal emitting, it assures stable blue line targeting constantly. This laser line alignment gets recommended operating time within 8 to 10 hours per day, keeping up to 80% laser beam stability and excellent laser light cycling, maintaining more than 8000 hours serving lifetime.

Key Features:
Selectable output power of 150mW, 200mW, 300mW, 400mW and 500mW enables easy and accurate blue laser line alignment under multiple occasions. Sunlight is not workable.
Selectable optic lens of separate crystal lens and glass coated lens, allows free choice of lens degree from 10 degree to 110 degree, achieves convenient and accurate line alignment constantly.
Direct diode emission gets improving beam stability under proper operation by skilled users or professionals.
Constant blue laser line positioning under strong static, strong interference etc.
CW modulation

Technical parameters:

Item High Power Blue Line Laser Alignment
Wavelength (nm) 445nm
Output power (mW) 150-500mW
Available Fan Angle(degrees) 10°-110°
Laser Class IIIB
Beam thickness at aperture (mm) <2mm; At 2m distance: <2.5mm
Beam divergence (mrad) 2.5mrad
Beam mode (before optics) TEM
Focus adjustable? No
Operating voltage(v)  DC=8.4V
Operating current (mA)  I<3000mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days


Note:

High power 445nm blue line laser alignment keeps high intensity blue laser beam emission, only allowing operation by skilled users or professionals under proper adjustment to the best condition and under special alignment equipment.

Avoid eye exposure to any powerful blue laser light from laser beam aperture or other close distance. Never stare at powerful beam and produced thermal energy from high power 445nm blue laser module, and remember to wear proper 445nm wavelength preventing laser safety goggles.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 8.4V ,3000mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. High Power Blue Line Laser Alignment
2. DC input power Supply

Attention: For high powered or OEM high power 445nm blue line laser alignment, please contact us free at support@berlinlasers.com.
