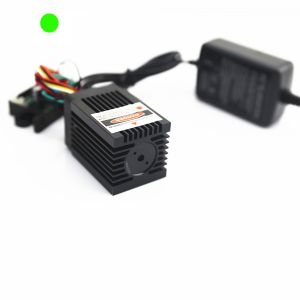

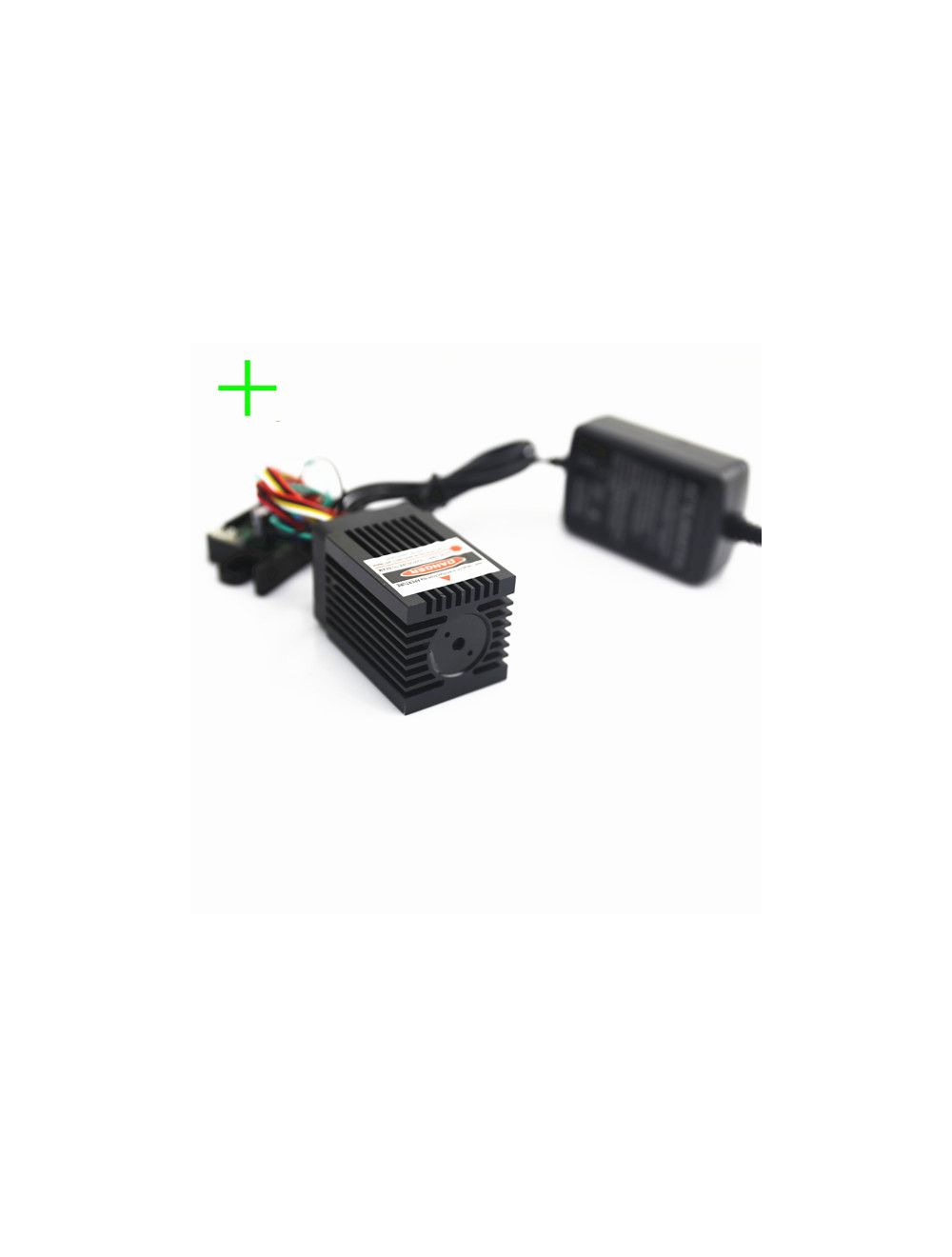

High Power 532nm 200mW Green Cross Line Laser Module

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $389.98

Special Price $335.98

  • Buy 3 for $333.98 each and save 1%
  • Buy 5 for $331.98 each and save 2%
  • Buy 10 for $329.98 each and save 2%

Quick Overview

High power 532nm 200mW green cross line laser module makes excellent designs of thermal emitting system, APC, ACC driving circuit board, and DC input power supply, which is keeping generation of high laser beam transmittance green laser source and continuous two perpendicular lines with accurate 90 degrees in distance effectively. This focused beam 532nm green laser gets convenient installation and adjustment, fulfilling high level of accuracy green cross line generation for multiple fields, including precise machinery processing, textile garment positioning, screening printing laser alignment, heat transfer machine, industrial devices, laser medical therapy, cross line laser positioning etc.

Details

High power 532nm 200mW green cross line laser module makes excellent designs of thermal emitting system, APC, ACC driving circuit board, and DC input power supply, which is keeping generation of high laser beam transmittance green laser source and continuous two perpendicular lines with accurate 90 degrees in distance effectively. This focused beam 532nm green laser gets convenient installation and adjustment, fulfilling high level of accuracy green cross line generation for multiple fields, including precise machinery processing, textile garment positioning, screening printing laser alignment, heat transfer machine, industrial devices, laser medical therapy, cross line laser positioning etc.

◆ DC input supply enables continuous green cross line alignment easily.
AC/DC adapter equipped for high power 532nm 200mW green cross line laser module accepts wide range electric current input within 100V to 240V, converting into 9V 1000mAh electric source for continuous cross line generation. Designed with high temperature and corrosion resistance electric wires, the real green cross line alignment keeps perfect performance under strong interference or strong static etc.

◆ High power of 200mW ensures extremely long distance aligning.
High power 532nm green cross line laser module generates the most sensitive and easily absorbed green laser light to human eyes, which is applied for quite clear and accurate green cross line alignment at long distance and high lighting efficiently. Unless real operation processed under sunlight, genuine green cross line projection keeps no mistake and no decay light emission at all.

◆ Qualified optic lens generates high linear quality cross line source continuously.
Equipped with qualified glass coated lens and selectable optic lens degree of 10, 15 and 110 degree, high power 532nm green cross line laser projects high linear quality and high straightness green vertical and horizontal lasers with selectable line length. It gets featured advantages of reduced relying on skills, low time consumption and high work efficiency.

◆ APC, ACC driving circuit board makes sure of constant cross line generation stably.
Industrial stabilized high power 533nm 200mW green cross line laser module keeps efficient preventing of serious electric current impacting from APC, ACC driving circuit, ensuring up to 80% cross line generation stability within daily 8 to 10 hours continuous work. It gets reduced possibility of laser diode and electric driving circuit burning out or damage in long time use.

Technical parameters:

Item High Power Green Cross Line Laser Module
Wavelength (nm) 532nm
Output power (mW) 200mW
Available Fan Angle(degrees) 10°,15°,110°
Laser Class IIIB
Beam thickness at aperture (mm) At 2m distance: <2.5mm
Beam divergence (mrad) 2.5mrad
Beam mode (before optics) TEM00
Focus adjustable? No
TTL Modulation No
Operating voltage(v)  DC=8.4V
Operating current (mA)  I<3000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Note:

High power 532nm 200mW green cross line laser module generates the most intense and powerful green laser radiation and laser reflection from laser beam aperture seriously. It is only allowing operation by skilled users or professional under proper adjustment to the best condition and operation under special alignment equipments.

Warning! Any exposure to powerful green laser light can be seriously harmful to human eyes and skins. Avoid eye exposure from laser beam aperture, and wear 532nm wavelength preventing laser safety goggles & glasses.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 8.4V ,3000mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:

1. High Power 532nm 200mW Green Cross Line Laser Module
2. DC input power Supply

Attention: For high powered or OEM high power 532nm green cross line laser modules, please contact us free at support@berlinlasers.com.
