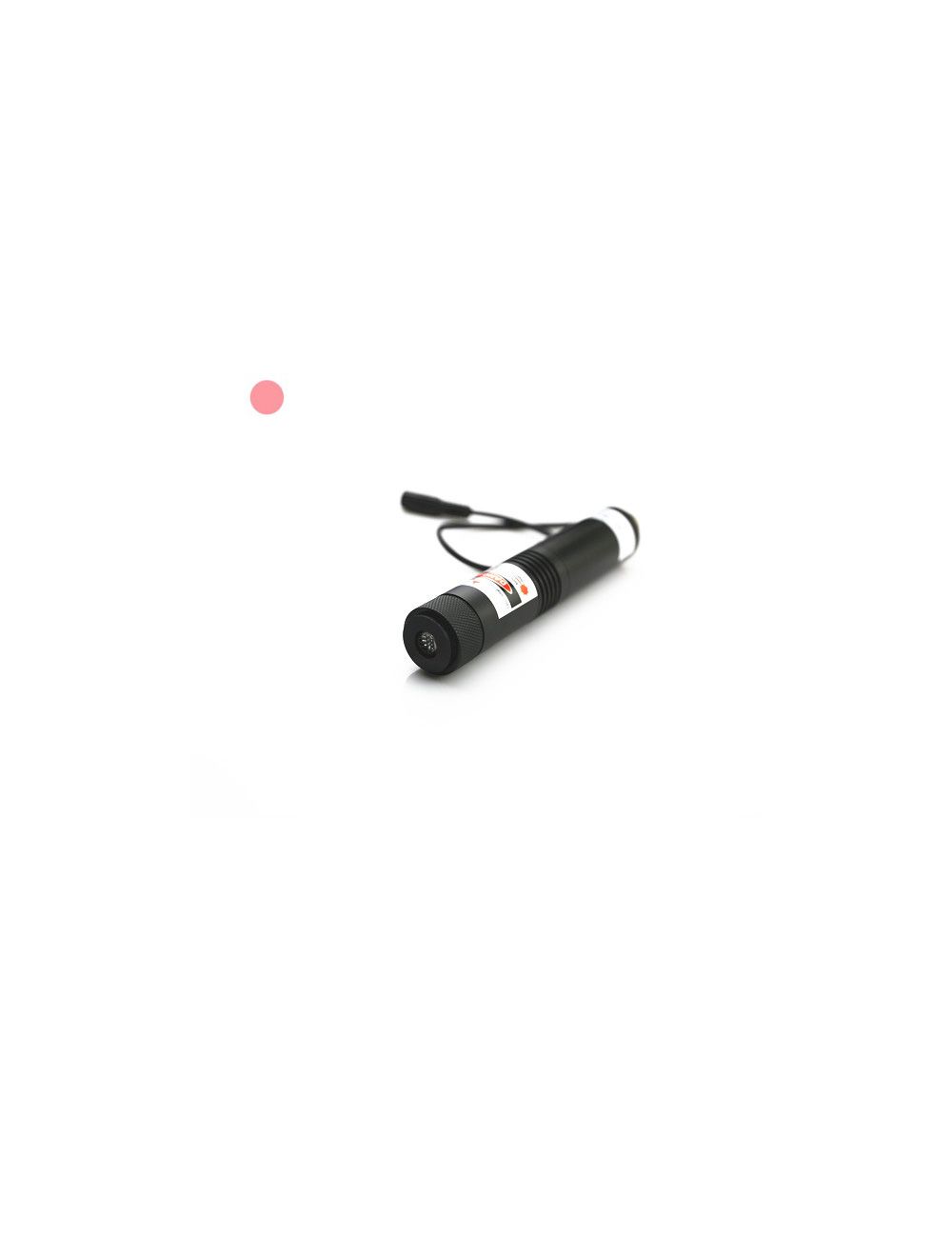

High Power 980nm Infrared Dot Laser Alignment

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $339.99

Special Price $298.99

  • Buy 3 for $296.99 each and save 1%
  • Buy 5 for $294.99 each and save 2%
  • Buy 10 for $292.99 each and save 3%

Quick Overview

Employed by import 980nm infrared laser diode, high power 980nm infrared dot laser alignment gets perfect configuration of excellent thermal emitting system, glass coated lens and APC, ACC driving circuit board inside aircraft used aluminum alloy housing tube, it is obtaining the most stable IR laser dot positioning for all night vision illumination dot aligning works effectively. This direct diode emission high power 980nm infrared laser module generates the most intense IR infrared laser beam and the most reliable infrared laser dot source for a large variety of applications for night vision OEM IR laser instruction, lab experiment, institutes, prominent colleges and university etc.

* Required Fields

Details

High power 980nm infrared dot laser alignment gets the most durable structure of aircraft used aluminum alloy housing and copper material made 980nm infrared laser diode as core part, obtaining superior nice thermal conductivity, and the most reliable IR infrared laser dot positioning within wide range operating temperature as well. This adjustable focus 980nm infrared laser module allows wide range output power of 600mW to 100mW, featured by super high photoelectric ability, and fulfilling the need of high intensity IR laser radiation and the clearest IR laser dot positioning for night vision illumination, including scientific research, lab experiment, IR dot measurement, spectrum analysis, communication, laser medical treatment, night hunting, and infrared laser sighting etc.

● Dual directions thermal emitting ensures the most stable IR dot alignment.

High power 980nm infrared laser alignment is being made with high duration metal housing tube and copper material laser diode, cooperated with metal heat sink cooling system, obtaining superior thermal conductivity and highly stable IR laser dot positioning in long term use. Within daily operating time of 8 to 10 hours, IR infrared laser to alignment maintains high stability up to 80%, and reduced possibility of laser diode and electric driving circuit burning out or damage.

● Import 980nm infrared laser diode assures intense IR beam emission.

Industrial stabilized high power infrared laser module adopts import high power 980nm infrared laser diode and qualified glass coated lens, ensuring improving laser beam stability and excellent infrared laser light cycling use in long term constant dot aligning use. After easy adjustment of laser beam focus and operation under professional alignment device, it achieves the clearest IR dot alignment precisely and accurately.

● Continuous infrared dot alignment supported by DC input power supply.

External AC/DC adapter converts 100V to 240 electric current voltage into 9V 1000mAh electric power source, supporting high power 980nm infrared dot laser alignment with continuous IR dot positioning for majority of countries and regions. Extending electric wires are featured by high temperature resistance and corrosion resistance. The genuine IR laser dot aligning maintains high stability under strong interference and strong static etc.

● APC, ACC driving circuit board assures constant output power supply.

High power 980nm infrared laser module gets rapid temperature increasing in long term IR dot alignment. APC, ACC driving circuit board ensures efficient preventing of intense electric current impacting. Intelligent feedback system assures constant IR dot targeting in long term use.

Technical parameters:

Item High Power Infrared Dot Laser Alignment
Wavelength(nm) 980nm
Output power(mW) 600mW, 700mW, 800mW, 900mW, 1000mW
Beam diameter at aperture(mm) 2mm×6mm@2M
Beam divergence(mrad) 6 mrad
Beam mode TE
Focus adjustable? Yes
Operating voltage(v) DC=9.0V
Operating current(mA) I<1000mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension Dia26mm×Length150mm
Expected lifetime (hours) ≥8000 hours
Warranty 6 months

Note:

High power 980nm infrared dot laser alignment keeps generation of high intense invisible IR laser beam, only allowing operation by skilled users or professional under professional alignment equipment. After proper adjustment of laser beam focus and IR dot aligning direction, it obtains high accuracy IR dot alignment easily.
Warning! high power 980nm infrared laser modules generates invisible IR laser radiation and IR reflection, not visible to human eyes. Do not stare at laser beam aperture and avoid eye exposure. Do remember to wear 980nm wavelength preventing laser safety goggles to ensure secured dot alignment.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 9V ,1000mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. High Power 980nm Infrared Dot Laser Alignment
2. DC input power Supply

Attention: For high powered or OEM 980nm infrared dot projecting laser alignment, please contact us free at support@berlinlasers.com.
