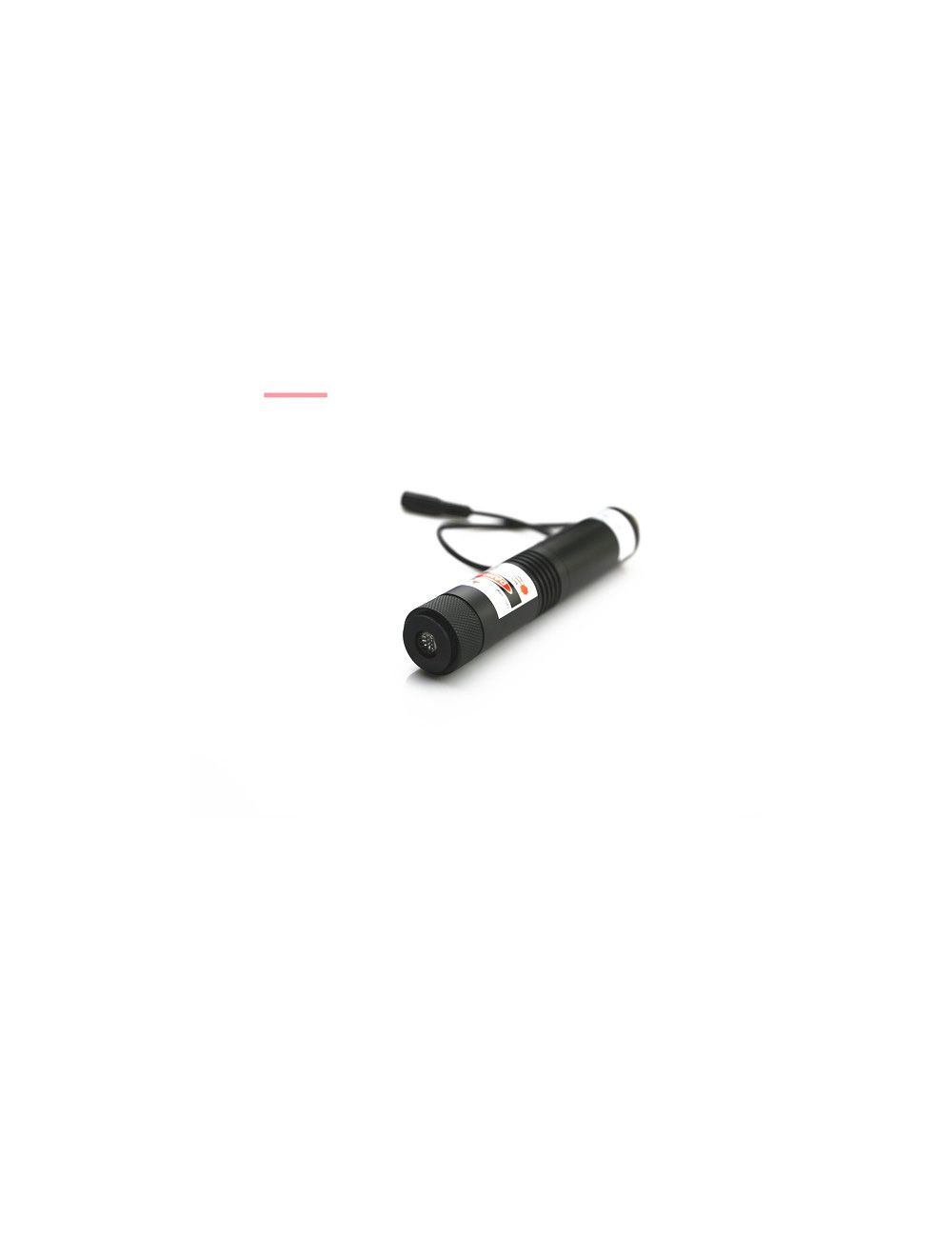

High Power 980nm Infrared Line Laser Alignment

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $369.99

Special Price $319.99

  • Buy 3 for $317.99 each and save 1%
  • Buy 5 for $315.99 each and save 2%
  • Buy 10 for $313.99 each and save 2%

Quick Overview

High power 980nm infrared line laser alignment combines import high power 980nm infrared laser diode, qualified optic lens degree and basic thermal emitting system into durable aircraft used aluminum alloy housing material, which is jus obtaining improving and highly intense infrared laser beam emission from laser beam aperture. Selected by correct output power and optic lens degree, and installed under night vision illumination device, high power 980nm infrared laser module supplies the most accurate and reliable IR reference line alignment for multiple work fields, including prominent colleges or universities, lab and institutes etc.

* Required Fields

Details

In serious need of highly stable and accurate IR line alignment under night vision occasion? Integrated with intelligent feedback system of APC, ACC driving circuit board, high power 980nm infrared line laser alignment obtains the most efficient preventing of electric current impacting, maintains constant electric current supply and output power emission from laser beam aperture. This high power 980nm infrared laser module generates super high photoelectric ability, fulfilling the highest linear quality and high straightness IR infrared laser line aligning for all night illumination fields, including scientific research, lab experiment, IR line measurement, communication, spectrum analysis, laser medical treatment, night vision IR line illumination, and IR laser sighting etc.

● DC input power supply supports constant IR line alignment.
Supported by 9V DC input power supply, high power 980nm infrared line laser alignment keeps constant IR infrared line generation in distance. Extending electric wires for both 980nm infrared laser module and DC input power supply are featured by high temperature and corrosion resistance. It converts 100V to 240V operating voltage into lower voltage, assuring the most convenient and stable IR laser line alignment continuously.

● Multiple selection of output power and optic lens degree assure various IR line length and thickness.
High power 980nm infrared laser module employs excellent quality glass coated lens or separate crystal lens, together with selected output power from import 980nm infrared laser diode, gaining various IR infrared laser line length and line thickness in distance. This focused beam infrared laser line alignment tool enables easy roast of laser beam aperture, after easy mounting on night vision device, obtaining the most satisfied IR line thickness accurately.

● Strict laser beam stability tests assure the most stable IR line alignment constantly.
High power 980nm infrared line laser alignment gets serious need of laser beam stability in long term IR line aligning use. Passing through a series of alternative high and low temperature changing test, rapid electric current adding test and up to 24 hours aging preventing test, high power infrared laser module maintains excellent infrared laser light cycling use, and stable IR laser line alignment within 8 to 10 hours daily use.

Key features:
Convenient installation under night vision IR laser system, CCD camera or black and white camera assures efficient conversion of highly clear and accurate IR infrared laser line alignment.
High output power of 600mW, 700mW, 800mW, 900mW and 1000mW ensures the most intense IR laser beam emission and IR line alignment at long distance accurately.
Selected optic lens degree within 10 to 110 degrees makes sure of high linear quality and high straightness IR line length selections for various night vision IR line alignment uses.
Aluminum alloy housing material and copper material 980nm infrared laser module ensures superior thermal conductivity and highly stable IR line alignment in long term use.
CW modulation.

Technical parameters:

Item High Power Infrared Line Laser Alignment
Wavelength(nm) 980nm
Output power(mW) 600mW, 700mW, 800mW, 900mW, 1000mW
Available Fan Angle (degree) 10°- 110°
Beam diameter at aperture(mm) 3mm
Beam divergence(mrad) 6 mrad
Beam mode TE
Focus adjustable? No
Operating voltage(v) DC=9.0V
Operating current(mA) I<1000mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension Dia26mm×Length150mm
Expected lifetime (hours) ≥8000 hours
Warranty 6 months

Note:

High power 980nm infrared line laser alignment generates the most intense and powerful IR laser radiation and reflection, only allowing operation by skilled users or professionals. Under professional alignment equipment or device, and proper adjustment of IR line thickness, it obtains the most accurate and rapid IR infrared line alignment promptly.

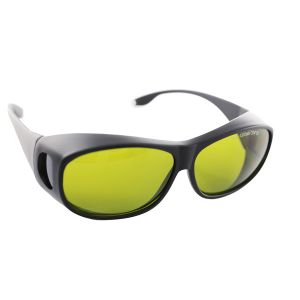

Warning! Long wavelength high power 980nm infrared laser model generates invisible laser beam, not observed by human eyes. Avoid direct eye exposure to high power IR laser light emission and do remember to wear 980nm wavelength preventing laser safety glasses.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 9V ,1000mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. High Power 980nm Infrared Line Laser Alignment
2. DC input power Supply

Attention: For high power 980nm infrared line projecting alignment laser, please contact us free at support@berlinlasers.com.
