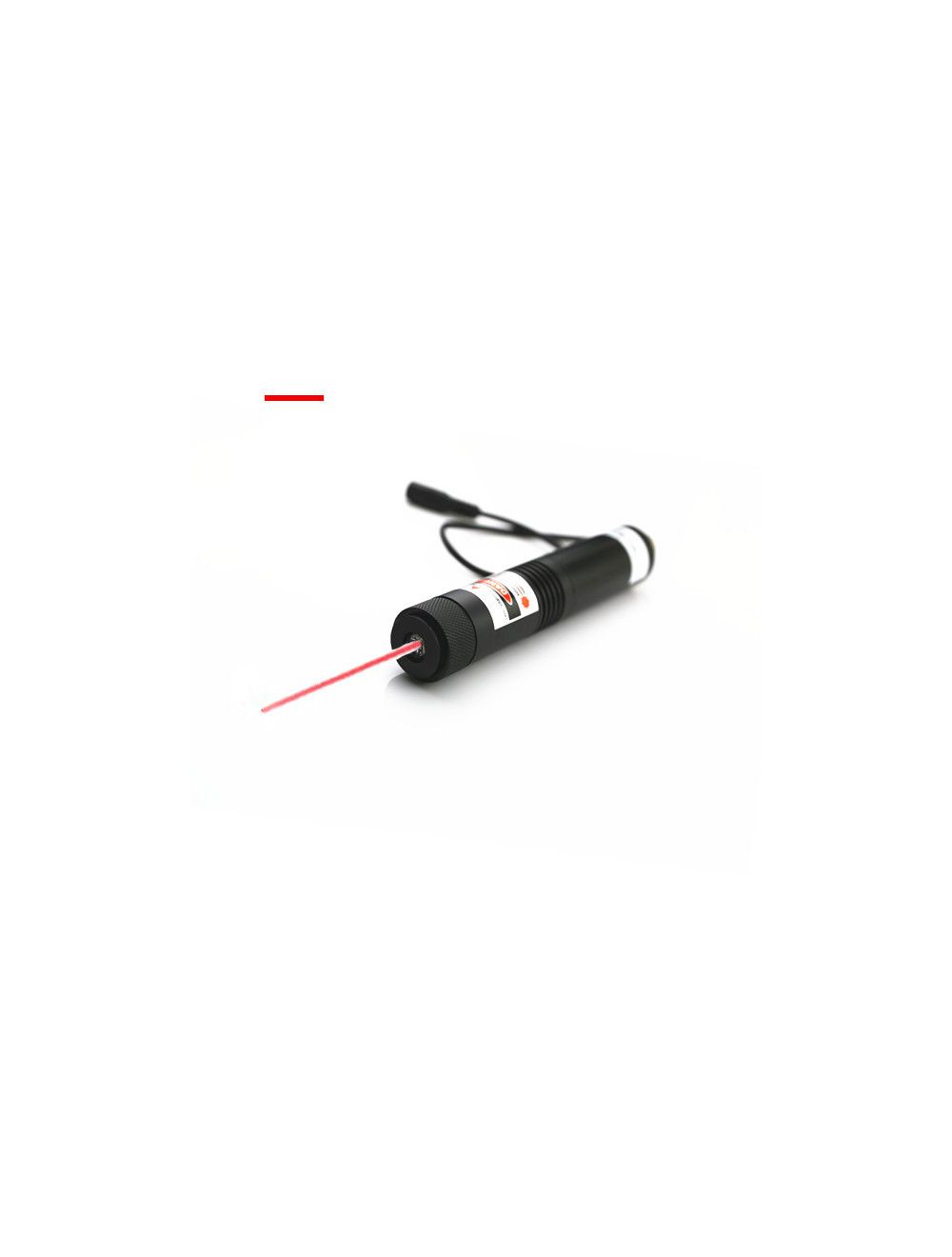

High Power Economy Red Line Laser Alignment
Employed by excellent quality import 650nm red laser diode and glass coated lens or separate crystal lens, high power economy red line laser alignment is easily obtaining improving laser beam emitting stability and high linear quality red reference line targeting immediately. Equipped with basis design with metal heat sink cooling system and APC, ACC driving circuit design, high power 650nm red laser module keeps the most efficient filtering of electric current impacting and protecting of red laser diode, maintaining the most stable red laser line instruction for various prominent institute, college and lab experiment etc.
- Buy 2 for $277.99 each and save 1%
- Buy 5 for $275.99 each and save 1%
- Buy 10 for $273.99 each and save 2%
When high power economy red line laser alignment makes good use of the most mature and the longest developed history made 650nm red laser diode, equipped with aircraft used aluminum alloy housing tube, it is just obtaining the best thermal conductivity and highly stable red reference line instruction in distance. Supported by constant electric power source of DC input power supply, this high power 650nm red laser module maintains quite convenient and constant red line instruction for various industrial and high tech line aligning works effectively.
● Durable structure red laser module assures the most stable line alignment in long term use.
Being made with high duration aircraft used aluminum alloy housing and copper made 650nm red laser diode core part, high power 650nm red laser module gets superior thermal conductivity and highly stable line alignment under wide environmental temperature. It maintains good line aligning performance under harsh occasion of mechanical shocking, calibration or moving after proper installation.
● Focused beam red line laser with good linear quality.
Cooperated with excellent glass coated lens or separate crystal lens, high power economy red line laser alignment gets high linear quality red reference line with selectable line length in use. It gets focused red laser beam from beam aperture, after quite simple roast, red laser line thickness can be easily adjusted until getting the most satisfied line instruction immediately.
● High power red laser module designed with the best thermal emitting system.
In constant line alignment, laser line module tube temperature increases seriously. It gets excellent design with metal heat sink cooling system and APC driving circuit board inside metal housing, easily obtaining highly stable line alignment within 8 to 10 hours per day, and long serving lifetime of more than 8000 hours.
Key features:
● Constant DC power supply supported red laser module gains continuous laser line alignment, supporting 100V to 240V electric current input converting to 8.4V.
● Wide range output power of 150mW to 500mW assures super strong laser beam transmittance and quite long distance line alignment stably.
● Wide range optic lens within 10 degree to 110 degrees keeps generation of high linear quality red laser line targeting clearly and accurately.
● CW modulation
Technical parameters:
| Item | High Power Economy Red Line laser alignment |
| Wavelength (nm) | 650nm |
| Output power (mW) | 150mW, 200mW, 300mW, 400mW, 500mW |
| Available Fan Angle (degree) | 10°- 110° |
| Beam diameter at aperture (mm) | <2.5mm |
| Beam divergence (mrad) | 5 mrad |
| Beam mode | TE |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝8.4V |
| Operating current (mA) | I<3000mA |
| Operating temperature(℃) | 15℃～30℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D26mm×L150mm |
| Expected lifetime (hours) | ≥8000 hours |
| Warranty | 6 months |
Notes:
High power economy red line laser alignment allows operation by trained people only. People should adjust it to the correct position and operate under special alignment equipment.
Warning! Red laser module emits intense laser beam and thermal energy that can be harmful to human eyes. Avoid any laser radiation and reflection exposure at close distance. Never look directly into the laser aperture and do remember to wear 650nm wavelength preventing laser safety goggles constantly.
Power Supply:
Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 8.4V ,3000mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm
Packing List:
1. High Power Economy Red Line Laser Alignment
2. DC input power Supply
Attention: For high powered or OEM alignment lasers, please contact us free at support@berlinlasers.com.
