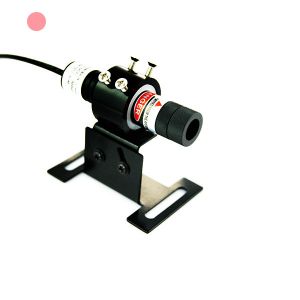

Pro Red Dot Projecting Laser Alignment

Payment Option:

Availability: In stock

Regular Price: $89.98

Special Price $79.98

  • Buy 2 for $77.98 each and save 3%
  • Buy 5 for $75.98 each and save 6%
  • Buy 10 for $73.98 each and save 8%


  • Berlinlasers-635nm-dot-5-100mw-technical-datasheet
  • Quick Overview

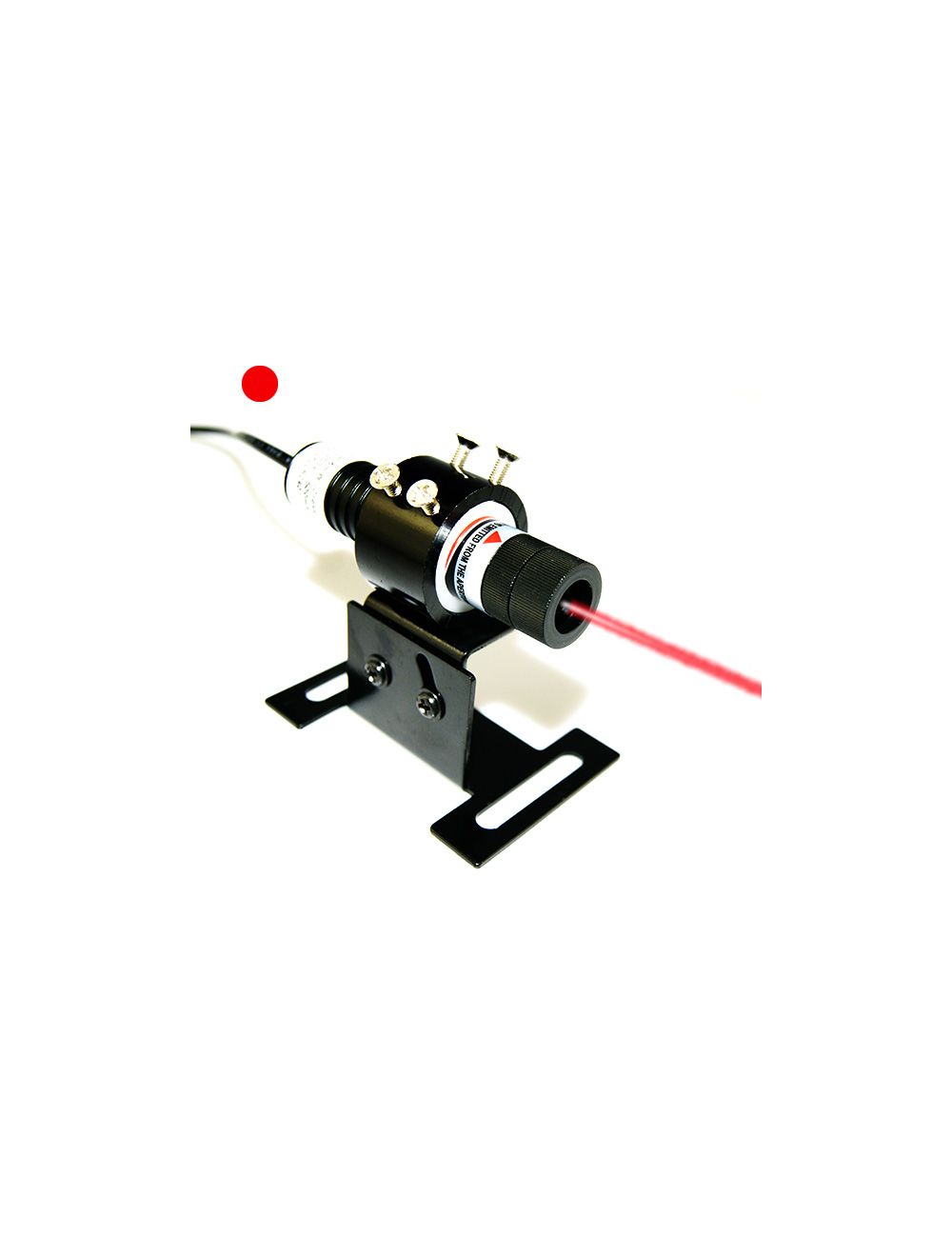

    Professional red dot projecting laser alignment projects a quick reference dot on targeted objects. Emitted the most visible beam from the extremely bright 635nm laser diode, this red laser module designed with adjustable focus red laser dot allows all kinds of accurate dot projecting in all alignment application.

    * Required Fields


    Cooperated with widely applicable industrial laser alignment system, Pro red dot projecting laser alignment provides the most visible and brightest red dot on examined surface. 635nm red laser dot is at least two or three times as bright as 650nm red laser, this red laser module allows the most accurate and highest precision dot alignment work in all kinds of applications.

    Features of 635nm Industrial Red Laser Alignment:

    Durable structure and stable performance. This aircraft aluminum material red laser module produced by hardened anode oxidation allows its durable structure in all occasions. It adopts the best 635nm red laser diode module and body material to achieve high stability and reliability in dot alignment work.

    Low beam divergence and adjustable focus design. 635nm red laser dot module projects the purest red light with extremely beam divergence. Incorporated with focus adjustable design, professionals can get the highest precision light spot in dot alignment.

    Long endurance laser in stable output. Red dot projecting laser alignment utilizes DC input to get 24 hours continuous operation in industrial alignment work.

    Technical parameters:

    Item Pro Red Dot-Projecting Laser Alignment
    Wavelength (nm) 635nm
    Output power (mW) 1mW, 5mW
    Laser Class IIIB
    Beam thickness at aperture (mm) <2.8mm
    Beam divergence (mrad) 1-1.5mrad
    Beam mode (before optics) TEM00
    Focus adjustable? Yes
    TTL Modulation NO
    Operating voltage(v)  5mW-20mW:DC=3.0V; 30mW-100mW:DC=4.2V
    Operating current (mA)  5mW-20mW: I<500mA; 30mW-100mW: I<1000mA
    Operating temperature(℃) 15℃~30℃
    Storage temperature(℃) -10℃~50℃
    Dimension  5mW-20mW: D16mm×L71mm;30mW-100mW: D26mm×L150mm
    Expected lifetime (hours) 8000 hours
    Warranty Period 180 days


    Only trained people are allowed to operate 635nm laser alignment. People should adjust the red laser dot to the best condition and operate under special alignment equipment.

    Warning! Laser module emits radiation that can be harmful to human eyes. Never look directly into the laser aperture. Any exposure to laser beam at close distance can cause eye damage.

    Power Supply:

    Input: AC 100-240V, 1.0A , 50/60Hz
    Output: DC 3V ,500mA
    Dimension: 70mm×46mm×27mm
    Length of AC input line: 116cm
    Length of DC output line: 126cm

    Packing List:
    1. Laser Alignment
    2. DC input power Supply

    Attention: For high powered or OEM red dot projecitng alignment lasers, please contact us free at support@berlinlasers.com.

    Product Tags

    Use spaces to separate tags. Use single quotes (') for phrases.

    Customer Reviews 1 item(s)

    Accurate and Stable dot projecting laser alignment tool
    The brightness and beam visibility of 635nm red dot laser alignment is just projecting quite accurate and precise dot generation in my work.
    At 10cm working distance, the projecting red dot diameter is about 1mm. This laser alignment tool is just projecting quite stable and accurate dot projecting when it has pointed more than 8 hours. Its output is very stable. Review by Sanny Streich / (Posted on 4/18/2015)

    Write Your Own Review

    You're reviewing: Pro Red Dot Projecting Laser Alignment
