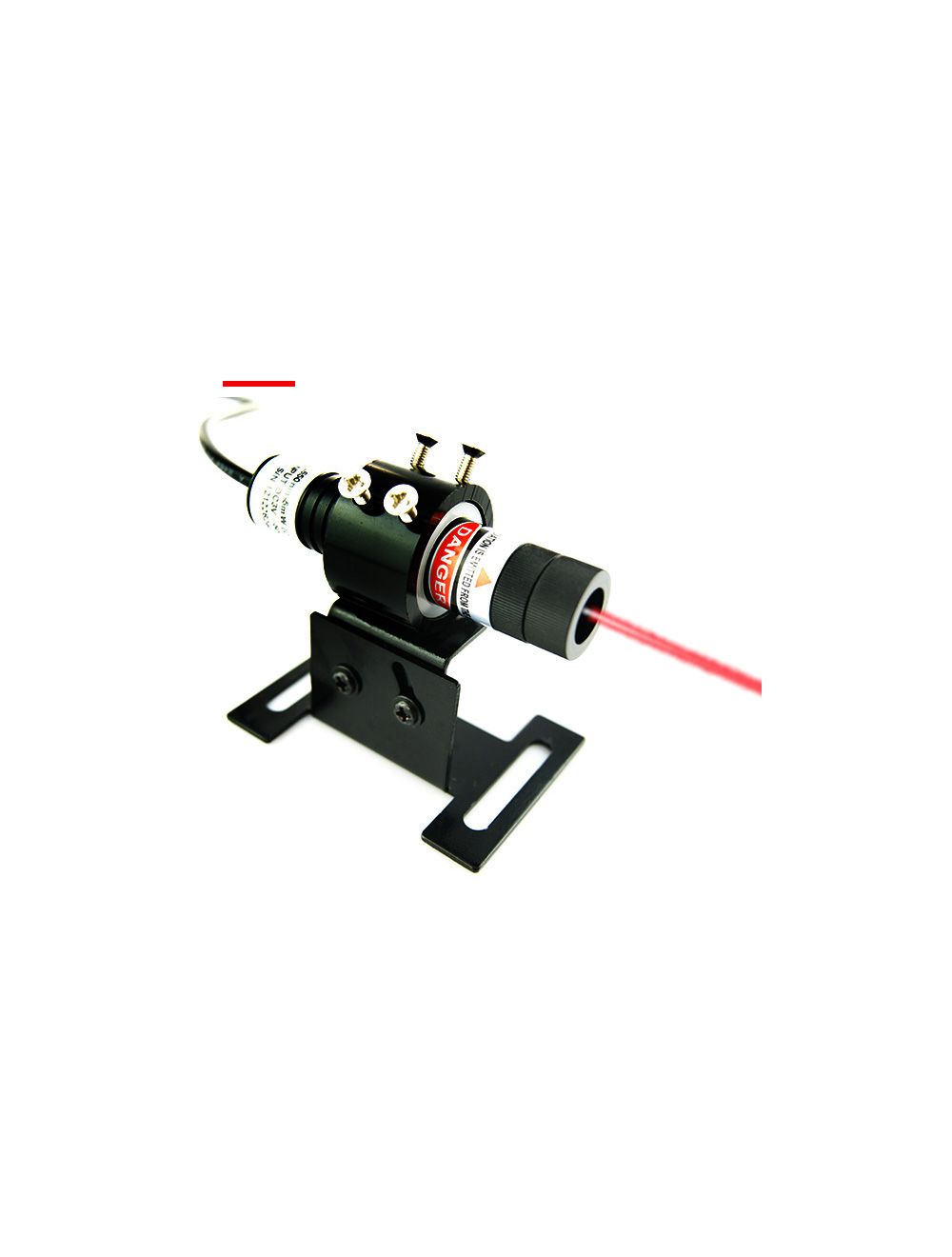

Pro Red Line Projecting Laser Alignment

Payment Option:

Availability: In stock

Regular Price: $125.98

Special Price $95.98

  • Buy 3 for $93.98 each and save 3%
  • Buy 5 for $91.98 each and save 5%
  • Buy 10 for $89.98 each and save 7%
  • Buy 15 for $86.98 each and save 10%

Quick Overview

Pro red line projecting laser alignment provides the most professional line alignment solution for tasks of high level accuracy and precision in need. This adjustable focus red laser module provides a quick and highly visible line on to a surface with fan angles from 5° to 120° and generates high accuracy line at a given great distance.

* Required Fields


Professional applicable high precision and accuracy line projecting alignment laser with focus adjustable design.

Berlin Lasers’ pro red line generating alignment laser allows the highest level of accuracy for any application where highly visible line projection on a surface is in need. 635nm red laser emits two or three times more visible beam than 650nm red laser, is able to project the highest visible line at great distance.

Features of pro red line alignment laser:

Wide fan angles and output power for various alignment tasks. 635nm red laser module available with wide fan angles from 5 degrees to 120 degrees and output power of 5mW to 100mW, determines various line length at great distance.

Adjustable focus laser with perfect performance. Focus adjustable red line generating laser alignment adopts the finest laser diode, circuit board and aircraft grade aluminum material, allowing high stability and accuracy line for high level precision alignment tasks.

Industrial alignment laser with continuous operation. 650nm red laser module is operable in 24 hours a day to achieve various industrial alignment works while equipped with alignment devices.

Technical Parameter:

Item Pro Red Line Projecting laser alignment
Wavelength (nm) 635nm
Output power (mW) 5mW
Available Fan Angle (degree) 5°- 120°
Beam diameter at aperture (mm) <2.0mm; 2m diameter: <2.0mm
Beam divergence (mrad) 5 mrad
Beam mode TE
Focus adjustable? Yes
Operating voltage(v) DC=3.0V
Operating current (mA) I<900mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension D12mm×L56mm
Expected lifetime (hours) ≥5000 hours
Warranty 6 months


Only trained people are allowed to operate laser alignment. People should adjust the laser alignment to the best condition and operate under special alignment equipment.

Warning! Laser module emits radiation that can be harmful to human eyes. Never look directly into the laser aperture. Any exposure to laser beam at close distance can cause eye damage.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Laser Alignment
2. DC input power Supply

Attention: For high powered or OEM alignment lasers, please contact us free at support@berlinlasers.com.

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Customer Reviews 1 item(s)

Review of Pro red line laser alignment 100mW 10 degree
I am very satisfied with my purchased pro red line laser alignment 100mW 10 degree. I want to make a line targeting at 28 feet distance. It just ask me to choose this high powered red line laser.

When I am making line targeting on the wall 28ft far away, it is able to generate a highly bright and visible red line with line length of 78cm, line width of 1.25cm. I want the projecting red line in much higher line thickness, so this high powered 100mW red line laser alignment is just my best choice. It is very stable, reliable, and highly bright in continuous line generation. Review by Scott Lapp / (Posted on 8/13/2015)
