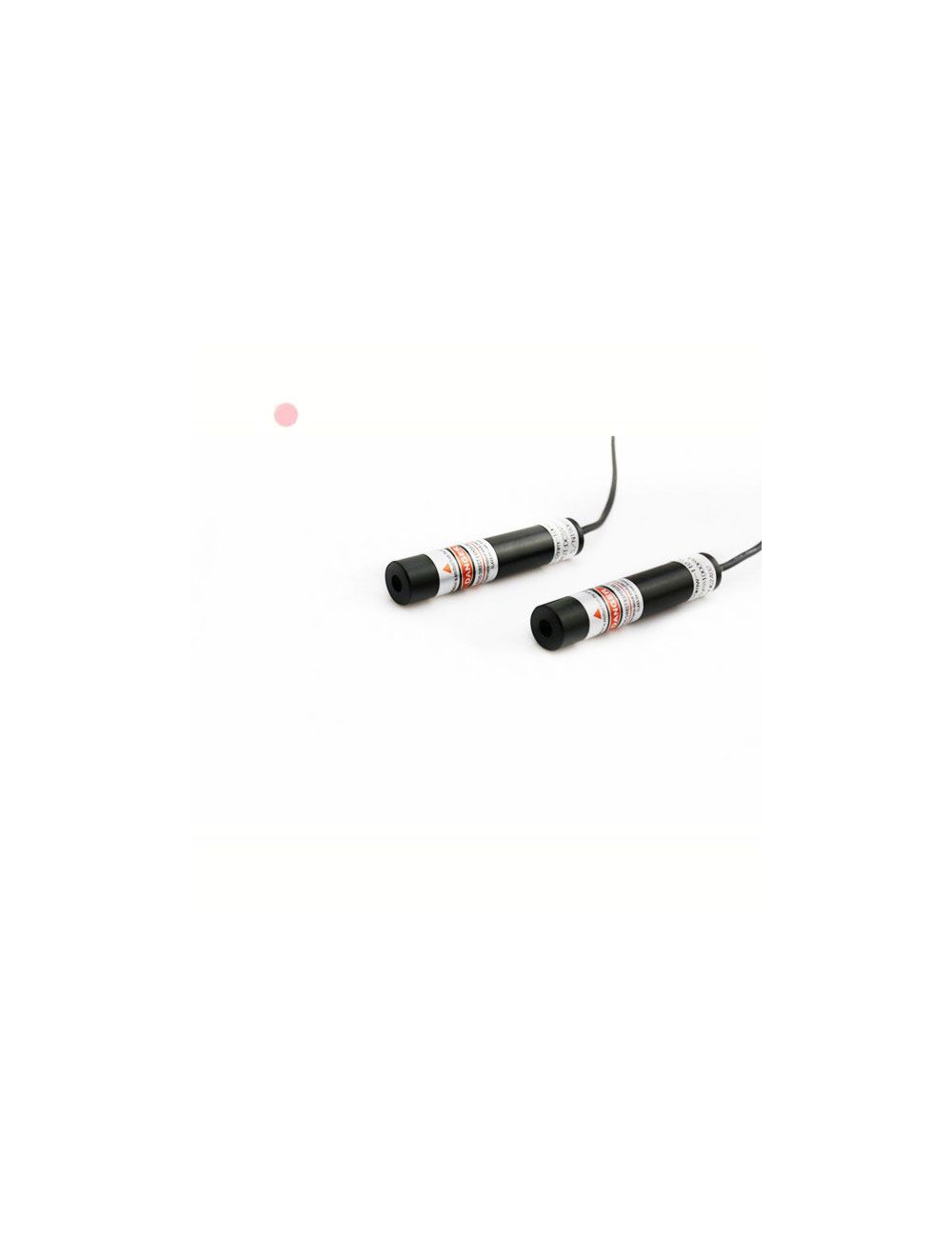

1064nm 50mW 100mW 200mW 300mW 400mW 500mW Infrared Laser Diode Modules
Direct diode emission made 1064nm infrared laser diode module makes advanced use of import IR laser diode, qualified glass coated lens and APC, ACC driving circuit board inside highly durable anodized aluminum alloy housing tube. It enables high intensity and high photoelectric ability infrared laser light emission. Under professional use of night version device, it makes high efficiency infrared laser light generation and converts into the most precise infrared dot measuring results for prominent institutes, labs and colleges.
- Buy 3 for $197.99 each and save 1%
- Buy 5 for $195.99 each and save 2%
- Buy 10 for $193.99 each and save 3%
Night version designed 1064nm infrared laser diode modules gets good features of ultra compact design, long operating lifetime, good direction and easy operation. Being made with good thermal emitting and external electric power source, it makes sure of high stability infrared laser beam emission and increasing accuracy infrared reference dot projection after proper adjustment of laser beam focus.
Key features:
AC/DC adapter with 5V, 9V operating voltages assure large space leaving for tube cooling down, and continuous infrared laser beam and infrared reference dot projection. No effect of overheating and over current impact as well.
Import 1064nm infrared laser diode with 100mW 200mW 300mW 400mW 500mW keeps work with high photoelectric ability infrared laser light emission, and high accuracy IR dot measurement within 100 to 1000 meters.
APC, ACC driving circuit board enables constant power source, and up to 85% laser beam stability IR dot generation. It gets no tube burning out or damage.
Easy screw of adjustable focus optic lens makes quick infrared laser light concentration, and the most precise IR dot alignment in distance.
Up to 24 hours aging preventing and beam stability tests after production fulfills stable performance and no laser light decay or blur.
CW and pulsing laser selectable
Technical parameter:
| Item | Infrared Laser Diode Module |
| Wavelength (nm) | 1064nm |
| Output power (mW) | 50mW 100mW 200mW 300mW 400mW 500mW |
| Laser Class | IIIb, IV |
| Beam divergence (mrad) | 6mrad |
| Beam mode (before optics) | TE |
| Focus adjustable? | Yes |
| TTL Modulation | No |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA; |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm;D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 1064nm infrared laser diode module and 1 ea AC/DC adapter
Applications: collimation, laser medical treatment device, scientific research, infrared laser sight, optical instruments
Note: Human eyes cannot capture any invisible infrared laser radiation and reflection of long wavelength 1064nm far infrared laser modules. It might cause potential hurt to human eyes, especially retina. Please avoid eye exposure to beam aperture. Do remember to wear correct infrared laser safety goggle and glasses so as to free and secured use of IR dot laser.
