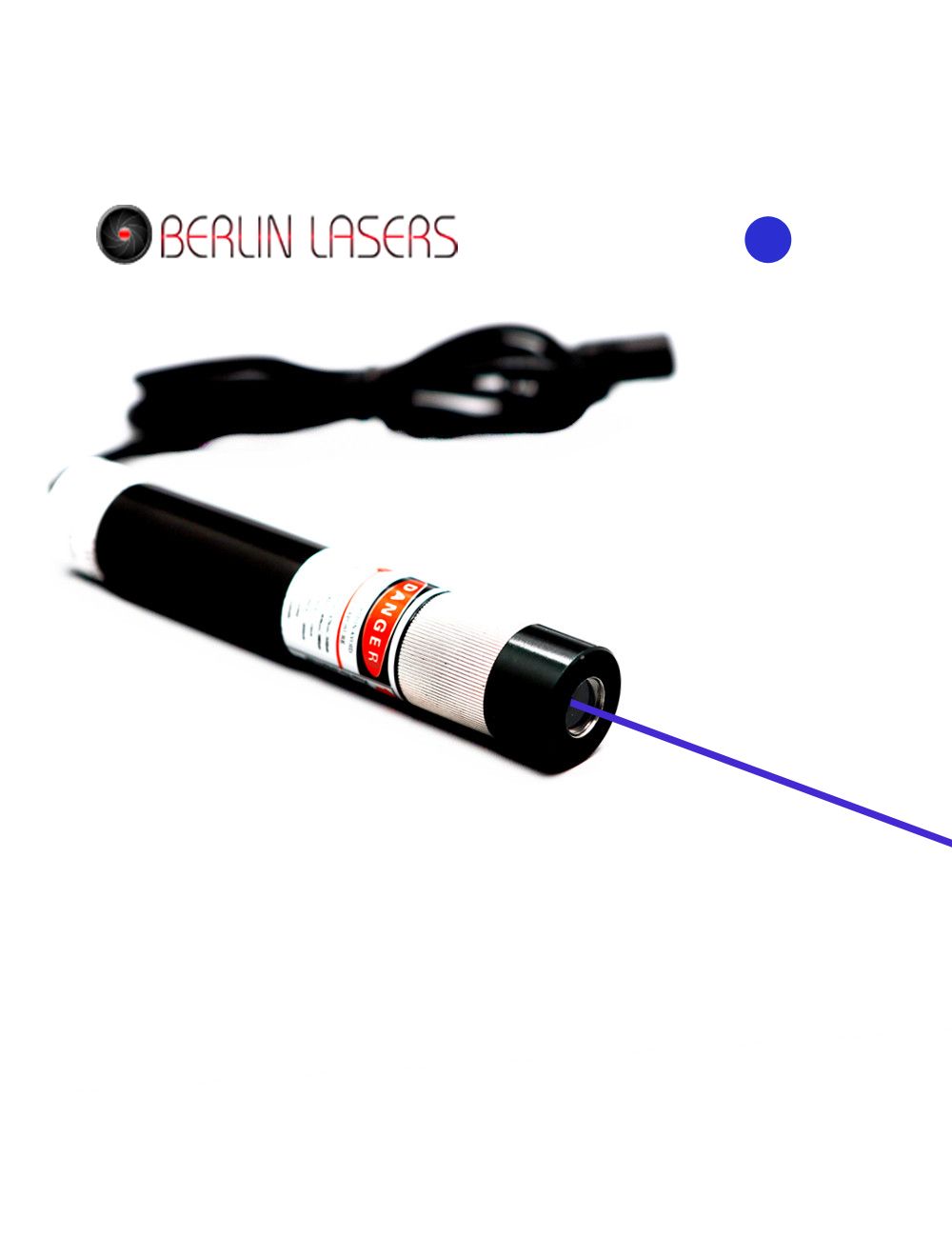

447nm 5mW 50mW 80mW 100mW Blue Laser Diode Modules
Direct Diode emission made 447nm blue laser diode module applies good thermal emitting, APC driving circuit board and constant power source. After correct use of output power and proper mounting onto those of industrial equipment or device, it is providing the best blue laser light source and blue reference dot indication for scientific research, teaching and lab experiment etc.
- Buy 3 for $117.99 each and save 2%
- Buy 5 for $114.99 each and save 4%
- Buy 10 for $110.99 each and save 8%
Wide range output power made 447nm blue laser diode modules provide users high end customized and high stability blue laser light source, featured by ultra compact structure, long lasting dot alignment, no decay light and competitive price. After special use of adjustable focus optic lens and immediate blue laser light concentration at beam aperture, it fulfills increasing accuracy and brightness blue dot indication for all application fields.
Key features:
5mW, 10mW, 20mW, 30mW, 50mW, 80mW and 100mW ensures intense blue laser light emission, and highly clear blue laser dot indication at various work distances and lighting occasions.
447nm dot blue laser module applies inner metal heat sink cooling system and APC ACC driving circuit board, fulfilling up to 85% beam stability dot generation, and reduced possibility of tube burning out or damage in proper use.
AC/DC adapter supports industrial blue laser with continuous blue laser beam and blue laser dot projection. Within freely installed distance of 3 meters, it provides no barrier and no mistake dot alignment constantly.
Ultra compact 16mm or 26mm diameter anodized aluminum alloy tube enables convenient operation, easy mounting and good thermal conductivity.
Technical parameters:
| Item | Blue Laser Diode Modules |
| Wavelength (nm) | 447nm |
| Output power (mW) | 5mW, 10mW, 30mW, 50mW, 80mW, 100mW |
| Laser Class | IIIA, IIIB |
| Beam thickness at aperture (mm) | <2.5mm |
| Beam divergence (mrad) | 3mrad |
| Beam mode (before optics) | TEM |
| Focus adjustable? | Yes |
| TTL Modulation | NO |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm; D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 447nm blue laser diode module and 1 ea AC/DC adapter
Applications: laser show, laser displaying, industrial dot alignment, holographic imaging, Raman, coherent detection
Note: The operation of high optical intensity beam 447nm blue laser up to 50mW generates thermal energy, which might cause hurt to human eyes, especially retina. Do remember to avoid eye exposure to beam aperture, and wear correct laser safety goggles so as to achieve easy and safe use of laser constantly.
