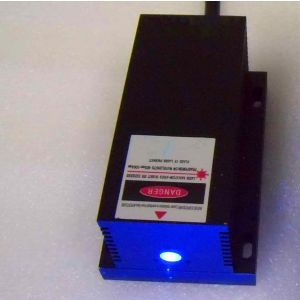

448nm 80mW-3500nm Blue Diode Laser System

448nm blue diode laser system is available with multimode laser beam mode, allowing high output power level of 80mW to 3500mW. It is ideal blue laser source provider for scientific researches fields requiring of high output power stability, long-term serving lifetime and reasonable prices. 448nm blue diode lasers also accept various OEM lasers accruing to requirement of users.

was $859.00 Special Price $839.00
Availability: In stock
SKU
80-3500-448bdls
  • Buy 2 for $830.00 each and save 1%
  • Buy 5 for $821.00 each and save 2%
  • Buy 10 for $811.00 each and save 3%

High power 448nm blue diode lasers get wide output power levels, always providing high intensity and high brightness blue laser sources for all kind of industrial laser use fields. According to direct blue laser beam emission from 448nm blue laser diodes, the desired blue laser source is available with high stability and high reliability during long-term operation.

448nm blue diode laser system is widely used for various high tech work fields, involving laser displaying, Holography, Fluorescence Sensors, Raman Spectrum, Spectrum analysis, Spectrum Calibration and communications, Chip inspection, laser interference, PIV, laser measurement, and a large variety of other applications.

445nm blue diode laser and AC power supply are both FDA safety standard approval, generating high quality and high safety blue laser source for those of university, labs, and research institutes etc..

Key features:

Low cost blue laser source, high beam intensity and high brightness
Multimode laser beam transverse mode, gets wide output power level of 80mW-3500mW
High stability and high reliability blue laser beam emission for long-term operation
Compact structure, easy installation and operation
Good linear analogue
Anti-statistic, protection from overheating and over current, enables up 10,000 serving lifetime

Technical data:

Item Blue Diode Laser System
Wavelength 448±5nm
Output power 80mW-3500mW
FDA Safety Class IIIa, IIIb
Transverse mode near TEM00
Longitudinal Modes Multimode
Operation Mode CW
Power Stability(rms, over 4hours) <1%, <3%, <5%
M2 factor <1.5
Beam divergence, full angle (mard) <2
Warm up time (minutes) <5
Beam diameter at aperture (mm) 4mm*4mm
Operating temperuter (℃) -10-40
Modulation Option TTL/Analogue
Analog Modulation Freq. (Hz) 30KHZ(0~max output when 0-5V signal input)
Severing lifetime (hours) up 10,000
Warranty period 1 year

Dimension of 448nm Diode Laser Head (mm)

448nm 80mW-3500mW Blue Diode Laser System head dimension

Note:

Berlinlasers accepts customize 448nm point laser, line laser and crosshair laser, fiber coupled lasers and OEM lasers on basis of customers' requirements. All multimode 448nm blue diode lasers specification accepts customize according to user's need. For any OEM laser, please feel free to contact us via email support@berlinlasers.com.
