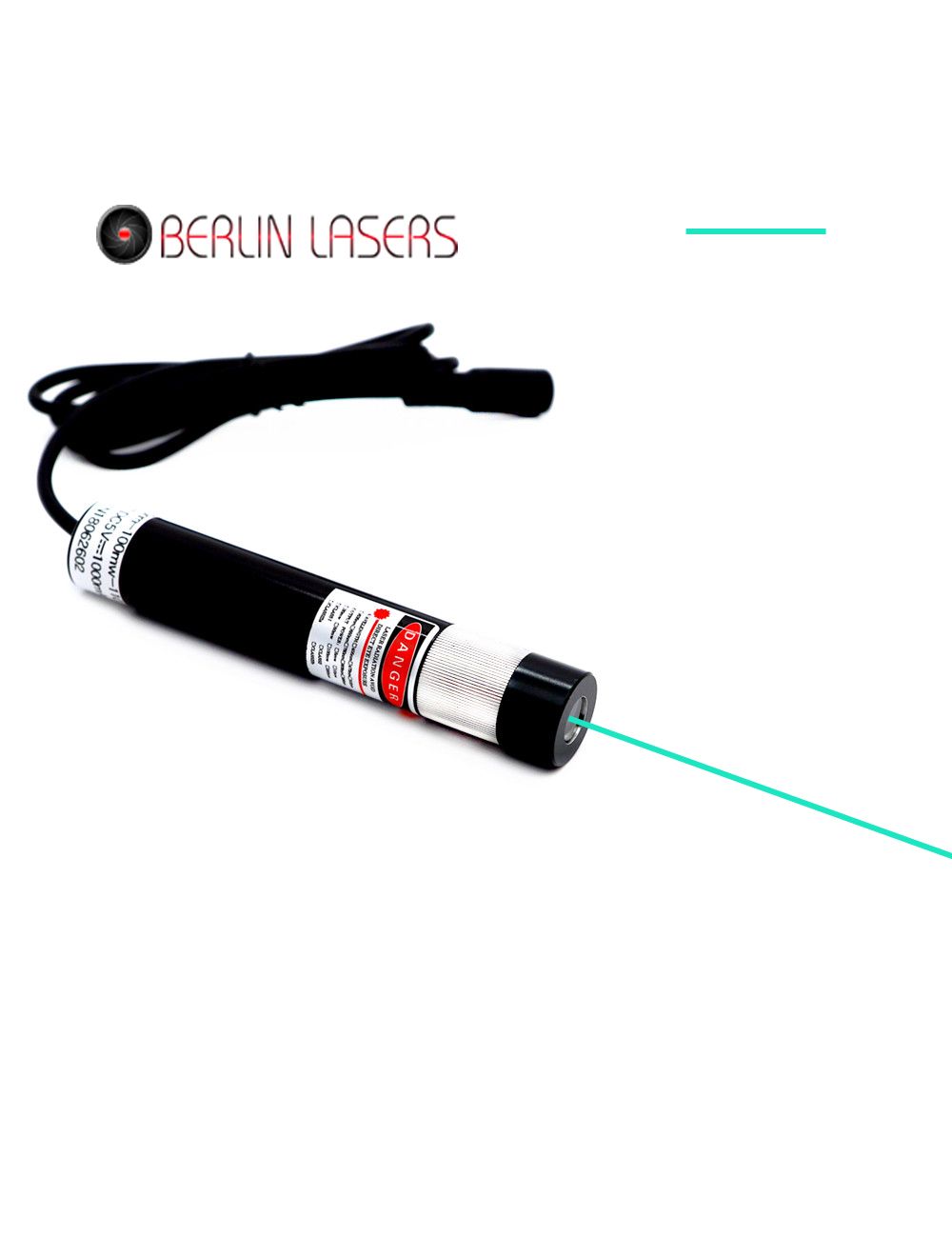

505nm 5mW 10mW 20mW 30mW 50mW 80mW 100mW Green Laser Line Generators
Direction diode emission 505nm green laser line generators make advanced use of import 505nm green laser diode, qualified optic lens and APC, ACC driving circuit board, projects highly visible and stable green laser light from beam aperture. Being made with 16mm and 26mm diameter anodized aluminum alloy housing tube, after easy mounting onto industrial device, 505nm green laser module achieves the most convenient installation, good thermal emitting and highly stable green line alignment for industrial and high tech precisely.
- Buy 3 for $154.99 each and save 1%
- Buy 5 for $152.99 each and save 3%
- Buy 10 for $150.99 each and save 4%
Available with import 505nm green laser diode within 5mW to 100mW, equipping with good thermal emitting and external electric power source, this 505nm green laser line generators keep work with quick response and good direction green line projection from beam aperture. After correct use of output power and optic lens degree, and special design of adjustable focus optic lens, 505nm green laser module gets temporarily focused green laser light, and increasing accuracy and fineness green line alignment for multiple application fields.
Key features:
Ultra compact 16mm and 26mm diameter metal housing tube made 505nm green laser module enable easy installation, convenient and no barrier green line projection.
5V, 9V 1000mA AC/DC adapter assures highly visible green laser beam emission, and highly clear and stable green line alignment, without effect of overheating and over current impact etc.
Qualified glass coated lens and Powell lens within 10 to 110°fan angles provides users high quality Gaussian or non Gaussian distribution green laser light, forming into highly fine and straight green line source.
APC, ACC driving circuit board assures constant output power and electric current supply, reduced tube burning out or damage, and long lifetime of more than 8,000 hours.
CW or pulsing laser selectable
Technical data:
| Item | Green Laser Line Generators |
| Wavelength (nm) | 505nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 16°, 20°, 30°, 45°, 50°, 60°, 93°,110° |
| Laser Class | IIIa, IIIB |
| Beam thickness at aperture (mm) | <2.8mm; At 2m distance: <2.5mm |
| Beam divergence (mrad) | 1mrad |
| Beam mode (before optics) | TEM |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L91mm;D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 505nm green laser line generator and 1 ea AC/DC adapter
Applications: industrial precise line alignment, biological, laser medical therapy, laser pumping, scientific experiment and labs etc
Note: For operation with high power 505nm green laser up to 50mW to 100mW, it projects powerful green laser radiation and thermal energy. It might brings hurt to human eyes and retina. Please remember to wear correct laser safety goggles and avoid eye exposure so as to achieve easy and safe green line alignment constantly.
