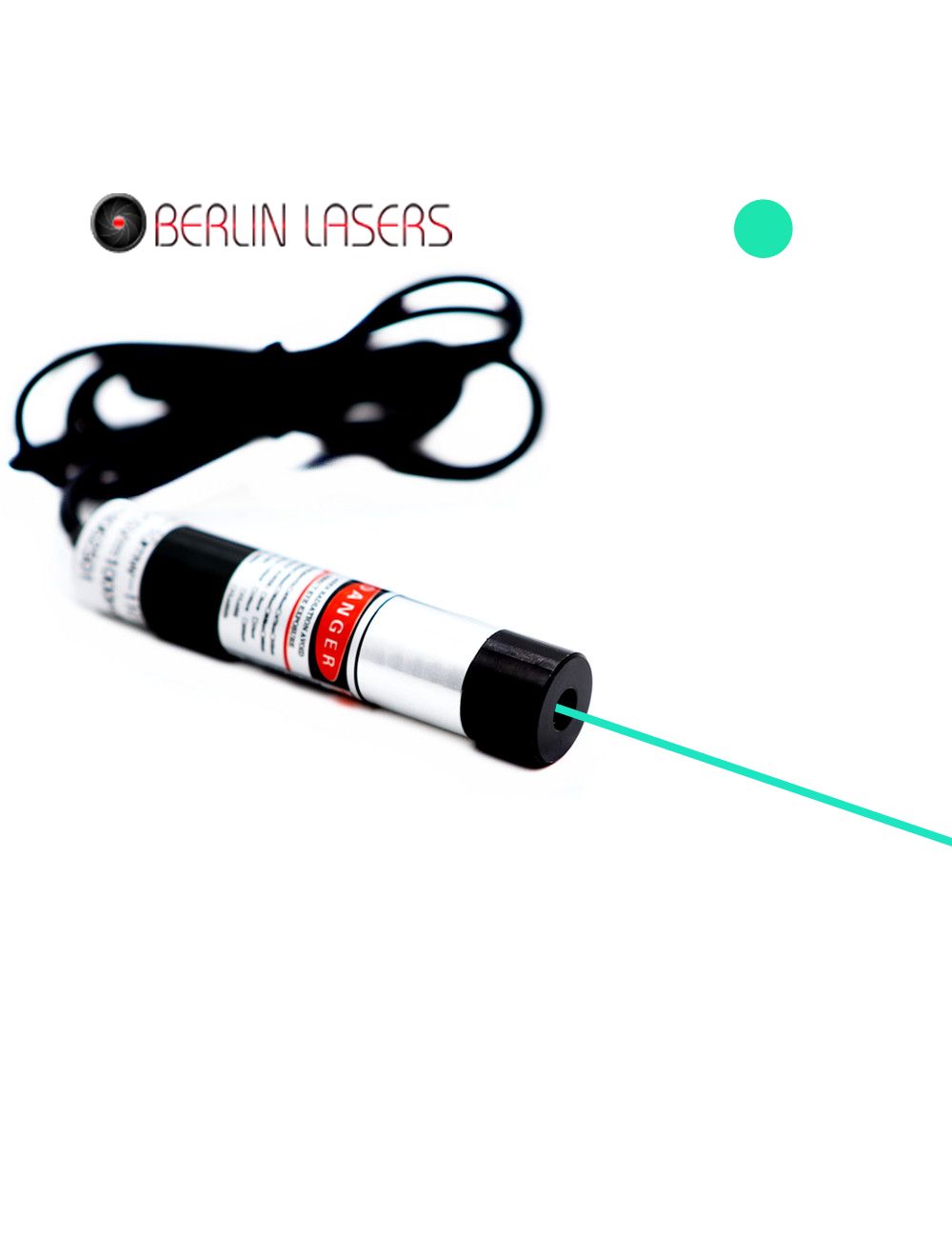

505nm 5mW to 100mW Green Laser Diode Modules
Direct diode made 505nm green laser diode module gets advanced use of thermal emitting system, qualified 505nm green laser diode and glass coated lens, it assures high quality and high brightness green laser light emission. After easy use of an external electric power source and proper adjustment of laser beam focus, it gets increasing accuracy and stability green reference dot aligning solution for multiple application fields, including institutes, labs, colleges etc.
- Buy 3 for $144.99 each and save 1%
- Buy 5 for $142.99 each and save 3%
- Buy 10 for $140.99 each and save 4%
Direct diode emission 505nm green dot projecting laser modules fulfills high beam stability and accurate dot measurement for multiple application fields.
505nm green laser diode module gets different laser light emission of 532nm green DPSS laser system, but makes direct green laser light emission of 505nm green laser diode. Available with wide high optical output power range of 5mW to 100mW, it assures the best quality green laser light source emission and wide operating temperature stabilization. It gets featured advantages of low production cost, ultra compact structure, long operating lifetime and good beam stability.
Key features:
Durable anodized aluminum alloy housing tube with 16mm and 26mm diameter provides users convenient installation and operation, making sure of stable and easy green dot indication without barrier and mistake.
AC/DC adapter selected by 5V, 9V operating voltage supports 505nm green laser diode module within 5mW to 100mW, projects high brightness green laser light and green laser dot at various work distances and lighting occasions.
Adjustable focus optic lens enables immediate green laser light concentration, and converts into increasing accuracy green dot alignment in distance.
APC, ACC driving circuit board protects 505nm green laser under increasing temperature and serious electric current impact, reduced possibility of tube burning out or damage. It gets up to 85% beam stability within 8 to 10 hours constant dot aligning use.
Technical Data:
| Item | Green Laser Diode Module |
| Wavelength (nm) | 505nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Laser Class | IIIa, IIIb |
| Beam thickness at aperture (mm) | <1.2mm |
| Beam divergence (mrad) | 1mrad |
| Beam mode (before optics) | TEM |
| Focus adjustable? | Yes |
| TTL Modulation | NO |
| Operating voltage(v) | DC=5V, 9V |
| Operating current(mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm, D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 505nm green laser diode module and 1 ea AC/DC adapter
Applications: industrial precise dot alignment, biological, laser medical treatment, laser pumping and scientific research work etc.
Note: Any operation with high power 505nm green laser diode module up to 50mW to 100mW generates powerful green laser radiation and reflection. It might cause serious thermal energy hurt to human retina. Do avoid direct eye exposure to beam aperture and wear correct laser safety goggles and glasses so as to assure safe and free use of high power lasers.
