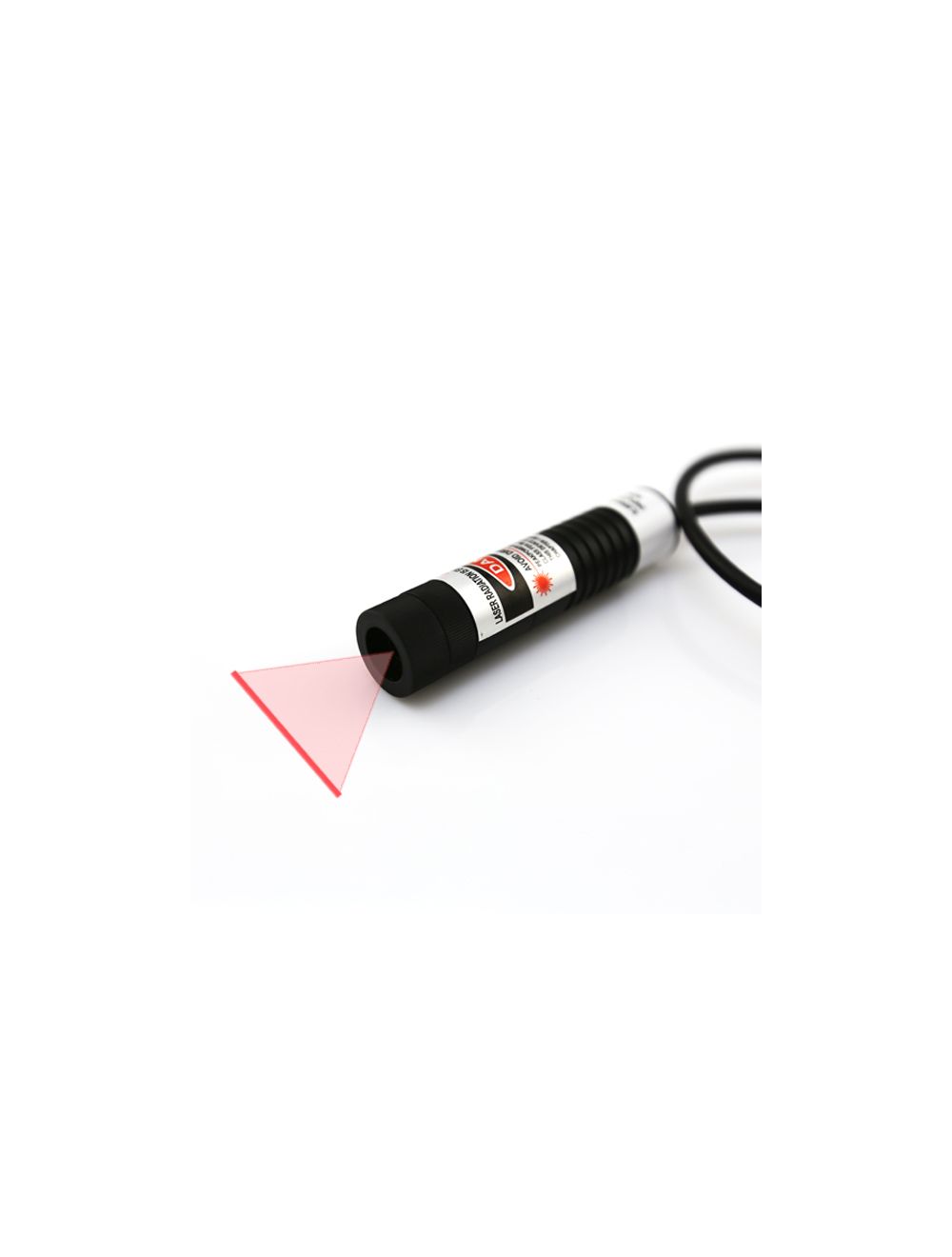

635nm Red Line Laser Module Non-Gaussian Distribution

635nm red line laser module provides genuine non-Gaussian distribution red laser line source, applicable for various industrial laser line alignment, positioning and laser levels etc. According to direct 635nm red laser diode emission, uniform laser line generator produces at least 3 times brighter red alignment laser line, providing users the highest level of accuracy and precision line for multiple uses.

was $135.00 Special Price $105.99
Availability: In stock
  • Buy 2 for $102.99 each and save 3%
  • Buy 5 for $99.99 each and save 6%
  • Buy 10 for $96.99 each and save 8%

Non-gaussian 635nm red line laser module just generates high level of uniformity red laser line in various precise and accurate line alignment works. Employed by import 635nm red laser diode, constant current driving circuit and metal heat sink cooling system, red laser line generator always makes sure of high performance red laser line with high stability and high reliability.

◆ Focusable red laser line source with high uniform, high straightness and super fineness

Applied by glass cylindrical lens with unique beam intensity of non-gaussian distribution, red laser line module just obtains even brighter and uniform laser line projecting. It keeps high beam transmittance and no laser light decay in continuous line alignment work. Laser line brightness will not fade away from middle towards the ends.

◆ Compact designed line laser module with efficient thermal emitting performance.

Available with compact size of only 16mm diameter laser tube, red line laser diode module allows easy and convenient mounting, installation and operation. Aircraft used anodized aluminum housing material ensures perfect thermal conductivity during constant line projection of laser line generator.

Key features:

◆ Qualified red line source with high uniformity, high straightness and good alignment
◆ Focused laser line generator with compact size, easy operation, and long serving lifetime of up 8, 000 hours.
◆ Wide non-Gaussian lens degree: 16°, 20°, 30°, 45°, 50°, 60°, 93°
◆ Wide power range: 5mW, 10mW, 20mW, 50mW, 80mW, 100mW
◆ Thermal conductive, anti-interference, anti-statistic, and strong red laser beam transmittance
◆ Rapid red laser line targeting, power and time saving, workable for mass production.

Technical Parameter:

Item Red Line Laser Module
Wavelength (nm) 635nm
Output power (mW) 5mW-100mW
Available Fan Angle (degree) 16°- 93°
Beam diameter at aperture (mm) <2.0mm; 2m diameter: <2.0mm
Beam divergence (mrad) 5 mrad
Beam mode TE
Focus adjustable? Yes
Operating voltage(v)  5mW-20mW:DC=3.0V; 30mW-100mW:DC=4.2V
Operating current (mA)  5mW-20mW: I<500mA; 30mW-100mW: I<1000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  5mW-20mW: D16mm×L71mm;30mW-100mW: D26mm×L150mm
Expected lifetime (hours) ≥5000 hours
Warranty 6 months


Only trained people are allowed to operate 635nm red line laser module. People should adjust the laser line generator to the best condition and operate under special alignment equipment.

Warning! Laser module emits radiation that can be harmful to human eyes. Never look directly into the laser aperture. Any exposure to laser beam at close distance can cause eye damage.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Red line laser module
2. DC input power Supply

Attention: For high powered or OEM line laser modules, please contact us free at support@berlinlasers.com.
