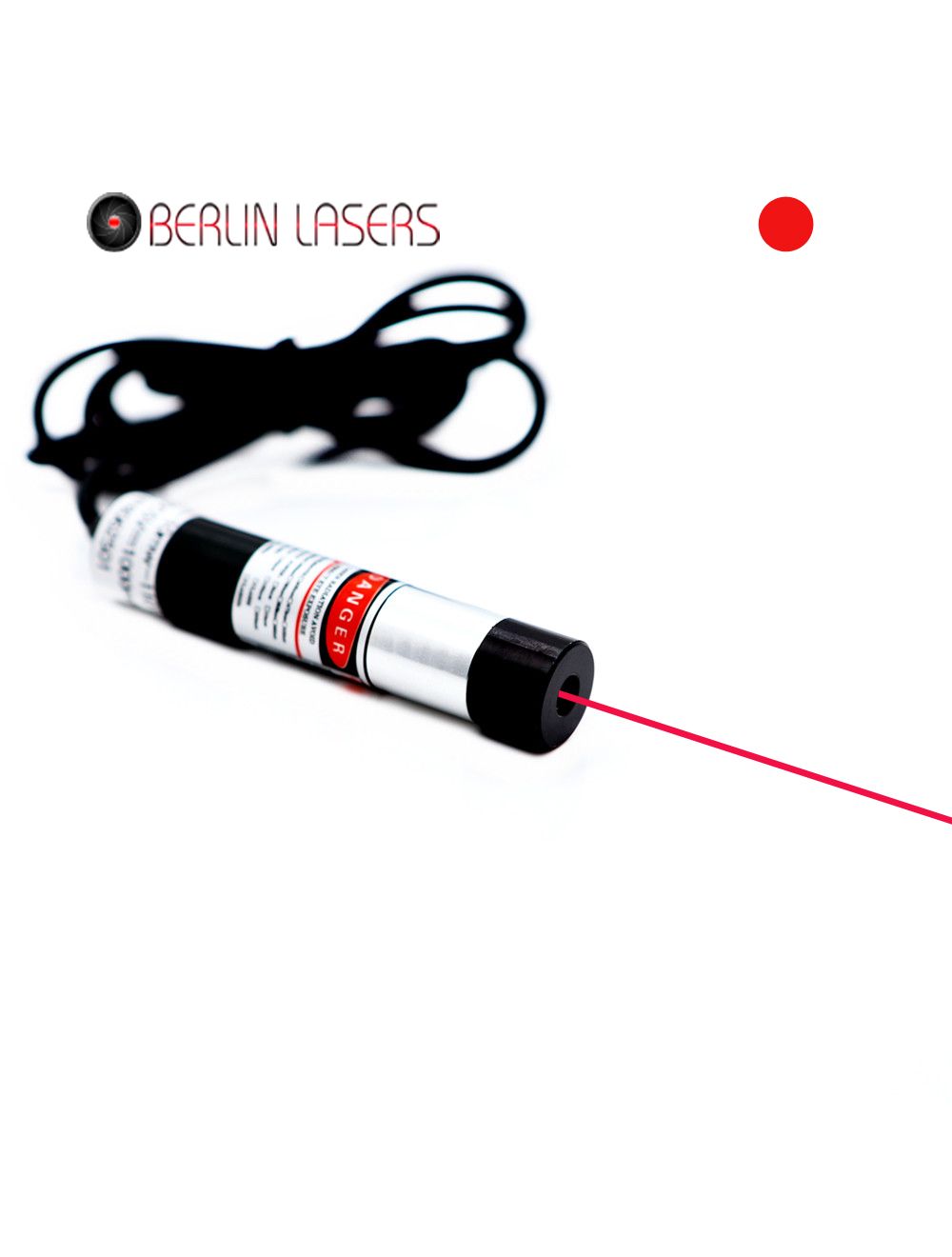

658nm 5mW to 100mW Red laser Diode Modules
In seriously need of the most reliable and stable dot alignment? Direct diode emission made 658nm red laser diode module with good cooling system and qualified glass coated lens assures high intensity red laser light emission, and increasing stability red dot projection for both long time and long distance. After easy adjustment of laser beam focus lens, it provides users the most precise dot aligning source for multiple application fields, including institutes, labs and colleges.
- Buy 3 for $77.99 each and save 3%
- Buy 5 for $75.99 each and save 5%
- Buy 10 for $73.99 each and save 8%
The most reliable and the clearest red laser dot alignment for all precise device manufacturing work fields
Import 658nm red laser diode made red laser diode module within 5mW to 100mW assures highly visible red laser beam emission, and clear red dot projection within long distance and long time use.
AC/DC adapter with 5V, 9V 1000mA power supply assures constant red laser beam emission. It fulfills high stability dot alignment within 8 to 10 hours, no light decay or blur in proper use.
Adjustable focus lens allows immediate red laser light concentration, and increasing accuracy red dot alignment within the maximum distance of 25 meters and high lighting.
APC, ACC driving circuit board protects 658nm red laser diode module perfectly under increasing temperature, and assures up to 85% beam stability within 8 to 10 hours dot measuring work.
Applications: laser marking machine, laser engraving machine, drilling system, lab experiment and scientific research work
Technical data:
| Item | Red Laser Diode Module |
| Wavelength (nm) | 658nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW,100mW |
| Laser Class | IIIa, IIIb |
| Beam thickness at aperture (mm) | 4.2mm×2.5mm |
| Beam divergence (mrad) | <5mrad |
| Beam mode (before optics) | TEM |
| Focus adjustable? | Yes |
| TTL Modulation | NO |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～30℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm;D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 658nm red laser diode module and 1 ea AC/DC adapter
Note: High power 50mW to 100mW 658nm red laser diode module generates powerful red laser radiation and thermal energy. In order to avoid thermal hurt to eyes, do remember to wear proper laser safety goggles and avoiding eye exposure to beam aperture so as to achieve easy and safe use constantly.
Attention: For high powered or OEM 658nm red laser diode modules, please contact us free at support@berlinlasers.com.
