660nm Red Cross Laser Alignment

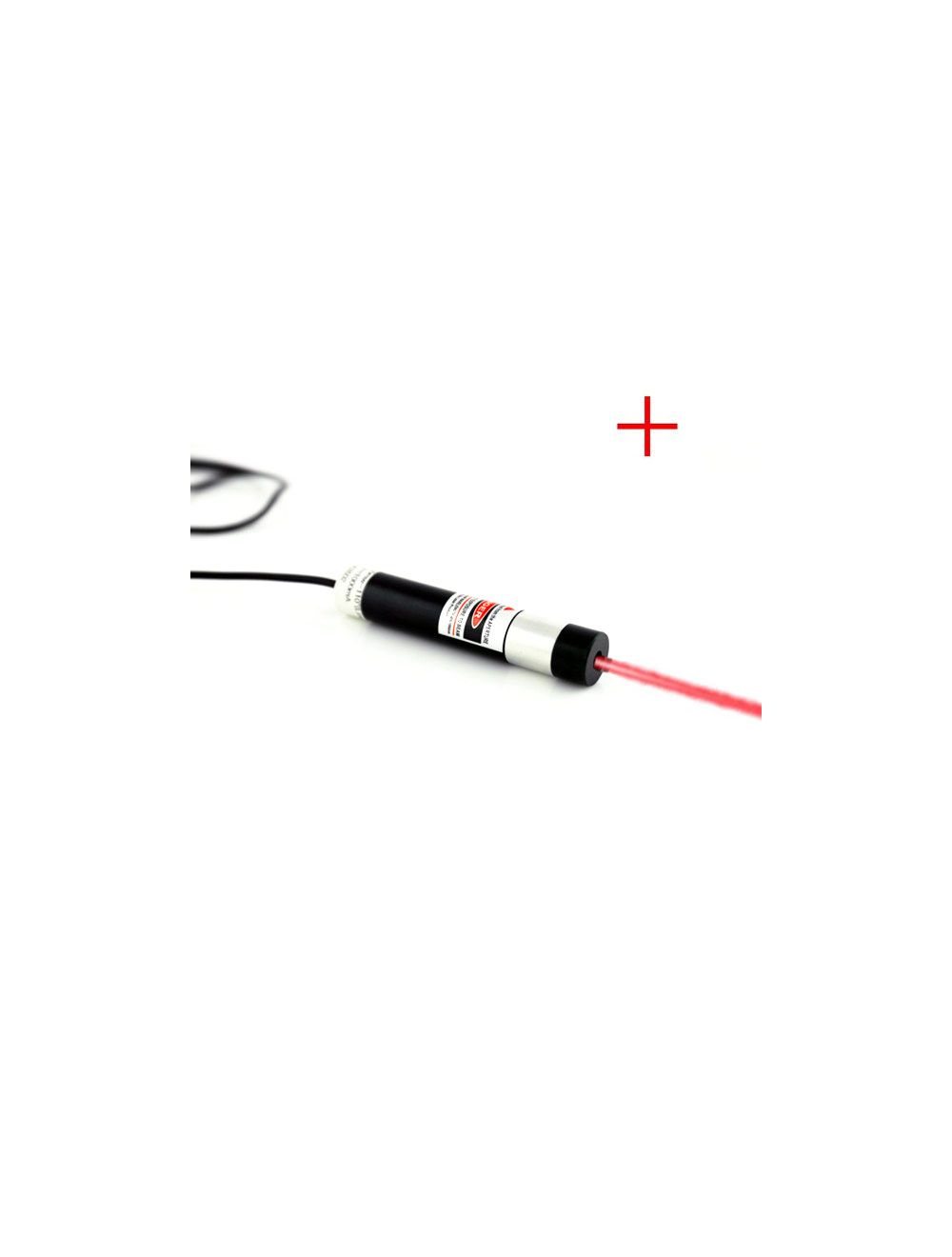

Employing qualified 660nm red laser diode and glass coated lens with different fan angles, laser tech engineer develops a quite practically used device of 660nm red cross laser alignment. It emits high transmittance red laser beam, and the most complex laser beam in pattern of two perpendicular lines with accurate 90 degrees. This compact size 660nm red laser module enables easy installation and quick response cross line alignment for all prominent institutes, labs and universities etc.

was $119.99 Special Price $109.99
Availability: In stock
  • Buy 3 for $107.99 each and save 2%
  • Buy 5 for $105.99 each and save 4%
  • Buy 10 for $103.99 each and save 5%

Integrating import 660nm red laser diode, metal heat sink cooling system and APC, ACC driving circuit board inside high duration aircraft used aluminum alloy housing tube, 660nm red cross laser alignment just gets superior industrial stabilization and highly clear red two perpendicular lines generation in multiple working occasions. Only if 660nm red laser module selects correct glass coated lens degree and output power, it makes sure of high precision cross line measurement for various industrial cross line alignment, lab experiment and scientific research works etc.

AC/DC adapter assures constant red laser light emission.
Accepting 5V, 9V 1000mA DC power supply, 660nm red cross laser alignment 5mW to 100mW keeps work with highly intense red laser beam emission, and clear red cross line source emission at various work distances and lighting occasions.

Qualified glass coated lens ensures high precision cross line alignment.
Employing qualified glass coated lens with different fan angles and special use of glass window in front of beam aperture, red laser module achieves accurate 90 degrees two perpendicular lines with different dimensions. It keeps good laser beam stability, not affecting by moisture or dust.

Adjustable focus lens ensures high fineness cross line alignment.
660nm 5mW to 100mW red laser module generates high quality and high intensity red laser light from beam aperture. After easy screw of adjustable focus optic lens, highly focused red laser light is converting into the finest red cross line source in distance.

Technical parameters:

Item Red Cross Laser Alignment
Wavelength(nm) 660nm
Output power(mW) 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW
Available Fan Angel (degrees) 90°
Beam diameter at aperture(mm) 2m beam diameter: <2.2mm
Beam divergence(mrad) 5 mrad
Beam mode TE
Focus adjustable? Yes
Operating voltage(v)  5mW-20mW:DC=5V; 30mW-100mW:DC=9V
Operating current (mA)  I<1000mA
Operating temperature(℃) 10℃~45℃
Storage temperature(℃) -10℃~50℃
Dimension  5mW-20mW: D16mm×L71mm;30mW-100mW: D26mm×L150mm
Expected lifetime (hours) ≥8,000 hours
Warranty 6 months

Applications: Laser alignment for screen printing system, laser medical therapy device, heat transfer machine, laser car wheel alignment, scientific research etc

Note: For operation of high power 660nm red cross laser alignment up to 50mW to 100mW, besides its operation at long distance, it is also projecting powerful red laser radiation and powerful red laser light from beam aperture. Do avoid any eye exposure to laser beam aperture and do remember to wear 660nm wavelength preventing laser safety goggles.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 5V, 9V, 1000mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:  1ea 660nm red dot laser alignment, and 1ea AC/DC Adapter

Attention: For high powered or OEM alignment lasers, please contact us free at support@berlinlasers.com.
