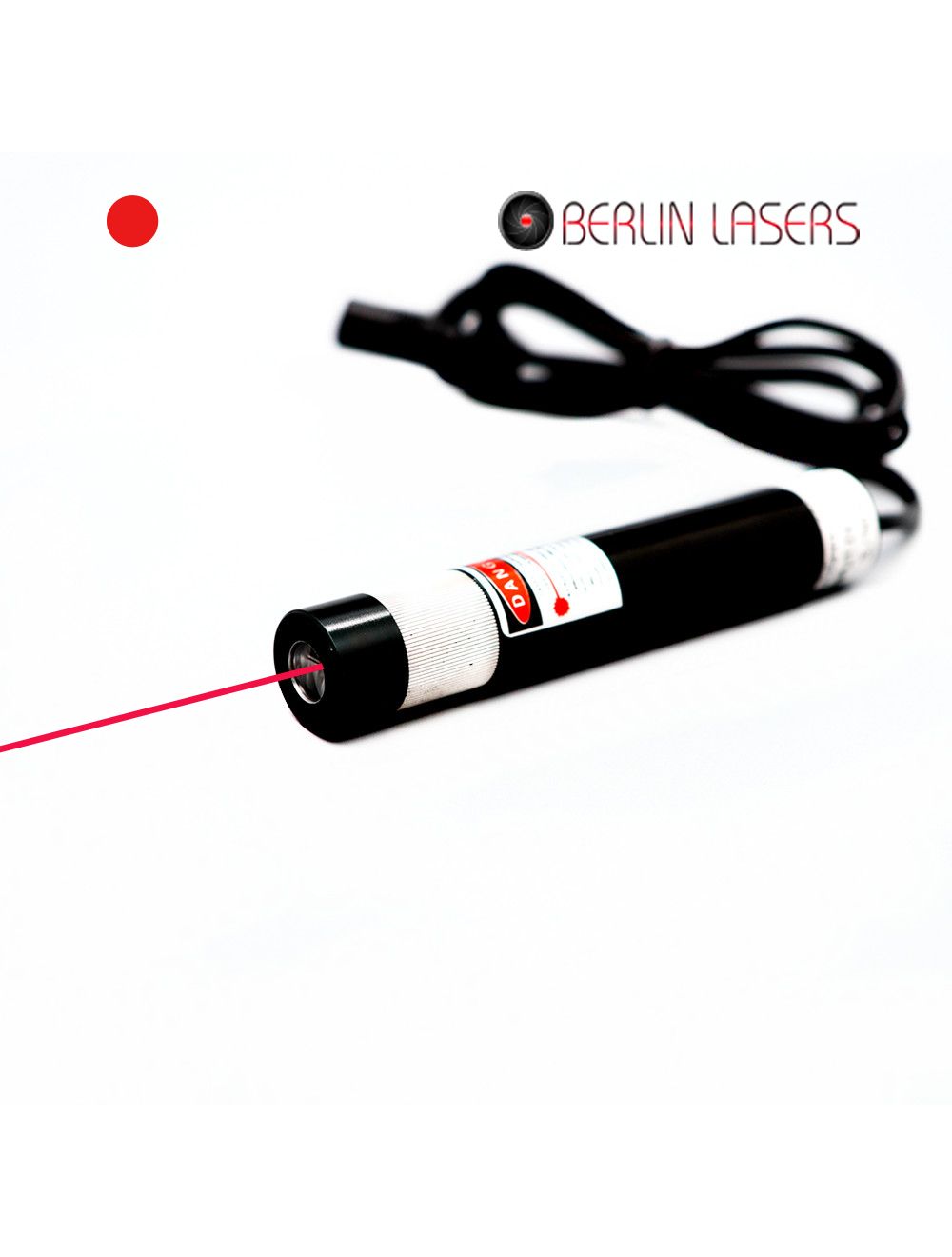

670nm 5mW to 100mW Red Laser Diode Modules
High stability beam emitting tool of 670nm red laser diode module utilizes import 670nm red laser diode, metal heat sink cooling system and glass coated lens, providing users highly visible red laser light source emission. Configured with high duration and ultra compact designed metal housing tube, this dot indicating red laser provides users excellent laser light and dot aligning source for multiple application fields, including institutes, labs and colleges etc.
- Buy 3 for $87.99 each and save 2%
- Buy 5 for $85.99 each and save 4%
- Buy 10 for $83.99 each and save 7%
Available with wide range optical output power of 5mW to 100mW, 670nm red laser diode modules always provide users the most convenient and easy dot generation at various work distances and lighting occasions. Cooperating with external power source and adjustable focus lens, it assures constant red laser beam emission, low product cost and increasing accuracy red dot alignment for both industrial and high tech fields.
Key features:
AC/DC adapter with 5V, 9V operating voltage supports 670nm red laser diode modules with constant red laser beam and red dot emission, no affect by overheating and over current in continuous use.
Metal heat sink cooling system and APC, ACC driving circuit assures the best thermal emitting, and 85% laser beam stability within 8 to 10 hours use.
16mm and 26mm diameter anodized aluminum alloy housing tube allows convenient installation, easy mounting and no barrier dot alignment.
Easy screw of adjustable focus lens gets high concentration red laser light emission, and increasing accuracy and brightness red dot alignment at various work distances.
CW or pulse laser selectable
Technical data:
| Item | Red Laser Diode Module |
| Wavelength (nm) | 670nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW,100mW |
| Laser Class | IIIa, IIIb |
| Beam thickness at aperture (mm) | <4.2mm*2.5mm |
| Beam divergence (mrad) | <5mrad |
| Beam mode (before optics) | TE |
| Focus adjustable? | Yes |
| TTL Modulation | NO |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm; D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 670nm red laser diode module and 1 ea AC/DC adapter
Applications: industrial dot alignment, laser marking machine, laser engraving machine, laser collimation, laser medical treatment, lab experiment etc
Note: The use of 670nm red laser up to 50mW to 100mW emits powerful red laser light and thermal energy of beam aperture. It cause seriously thermal energy hurt to human eyes and retina. Do remember to wear laser safety goggles and avoid eye exposure to beam aperture so as to achieve easy and safe dot measurement constantly.
