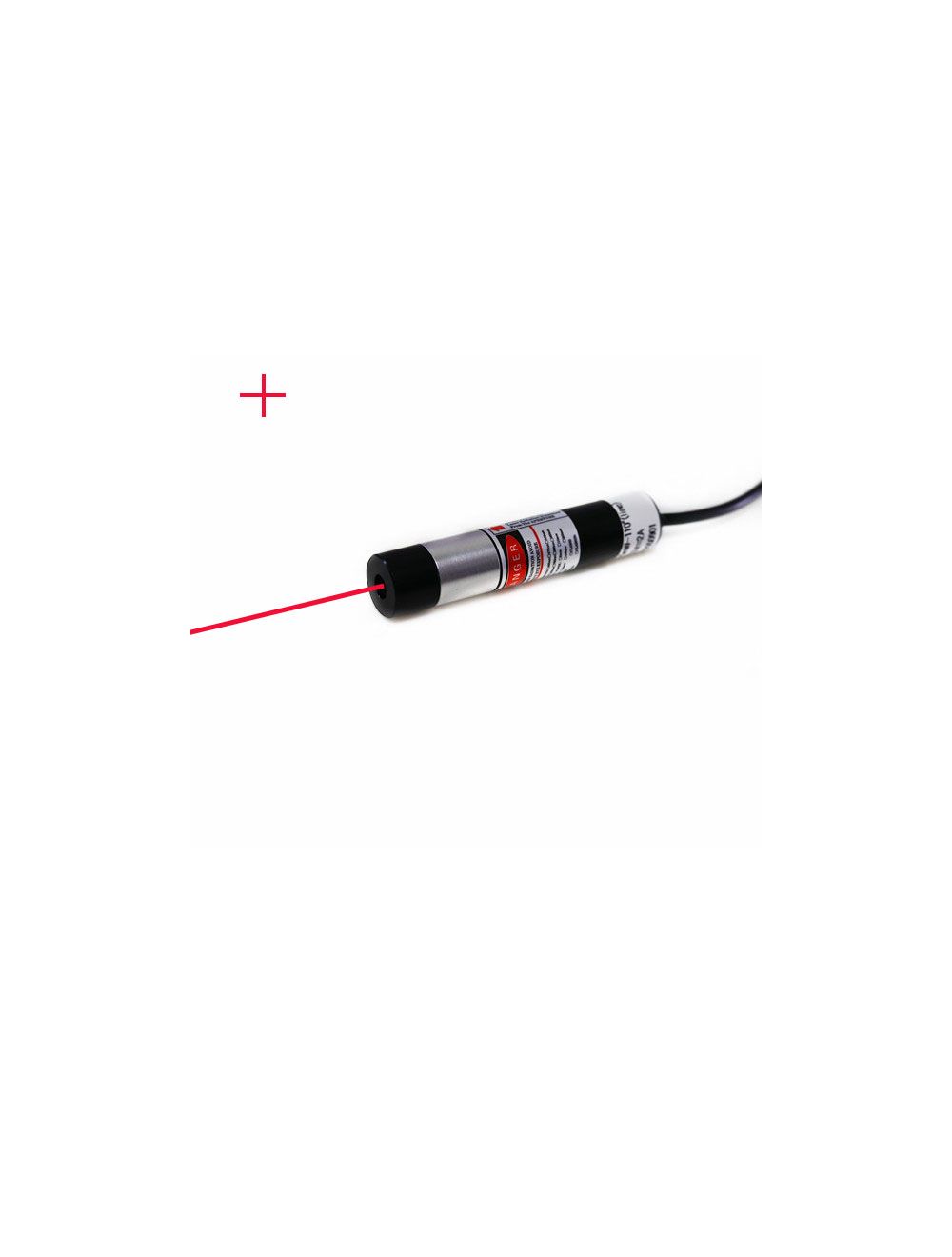

670nm 5mW to 100mW Red Cross Line Laser Modules
Direct diode emission 670nm red cross line laser modules apply qualified import 670nm red laser diode, qualified glass coated lens and electric driving circuit board, project high intensity red laser light, and highly clear two perpendicular red lines with accurate 90 degrees. After easy connects with external electric power source and mounting onto industrial device, 670nm red laser makes no labor force input and no mistake cross line alignment.
- Buy 3 for $107.99 each and save 2%
- Buy 5 for $105.99 each and save 4%
- Buy 10 for $103.99 each and save 5%
Industrial stabilized 670nm red cross line laser modules gets featured advantages of low production cost, quick response, good direction and high beam stability. The most durable anodized aluminum alloy housing tube with 16mm and 26mm diameter assures convenient installation, noncontact and no track red cross line generation for tasks of moderate level of accuracy cross line alignment fields.
Key features:
Import 670nm 5mW to 100mW with metal heat sink cooling system and APC, ACC driving circuit board assures increasing laser beam stability, constant red cross line alignment, and long operating lifetime.
5V, 9V 1000mA AC/DC adapter assures constant red laser beam and red cross line projection, without appearance of overheating or over current impact within maximum use of 8 to 10 hours.
Glass coated lens with 10, 15 and 110 degree fan angles generates different dimension and high linear quality red cross lines, applying for multiple application fields.
Adjustable focus optic lens enables intense red laser light concentration, high precision and high fineness red cross line alignment in distance.
CW or pulsing laser selectable
Technical data:
| Item | Red Cross Line Laser Modules |
| Wavelength(nm) | 670nm |
| Output power(mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angel (degrees) | 10°,15°,110° |
| Beam diameter at aperture(mm) | 2m beam diameter: <2.2mm |
| Beam divergence(mrad) | 5 mrad |
| Beam mode | TE |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm; D26mm×L150mm |
| Expected lifetime (hours) | ≥8,000 hours |
| Warranty | 6 months |
Packing list: 1 ea 670nm red cross line laser module and 1 ea AC/DC adapter
Applications: industrial cross line alignment, laser collimation, laser medical therapy device, lab experiment and high tech
