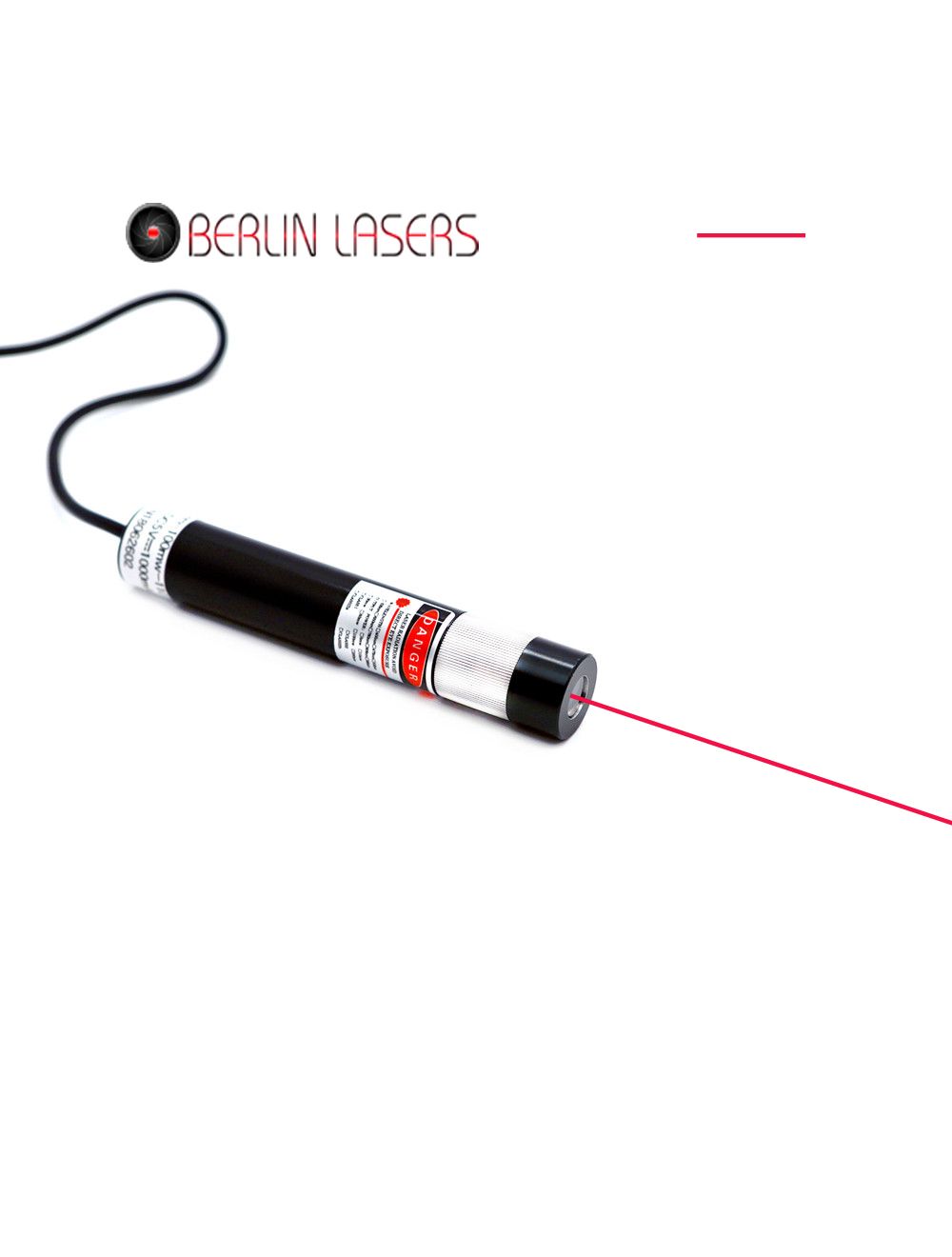

670nm 5mW to 100mW Red Line Laser Modules
670nm red line laser modules employs qualified import 670nm red laser diode, glass coated lens or Powell lens, and APC, ACC driving circuit board, projects high intensity red laser light and high linear quality red reference line with various line lengths. This industrial stabilized laser line generator enables freely adjusted line fineness and line projecting direction, and the best quality red line aligning source for institutes, labs and colleges etc.
- Buy 3 for $97.99 each and save 2%
- Buy 5 for $95.99 each and save 4%
- Buy 10 for $93.99 each and save 6%
Direct diode emission 670nm red line laser modules project high intensity and high brightness red laser light from inner 670nm red laser diodes. Applying high quality glass coated lens and Powell lens within 10 to 110 degree, after up to 24 hours aging preventing test and special use of a glass window, it generates high quality Gaussian beam or uniform distribution red laser light, and high fineness red line with various line lengths. The genuine red laser line alignment applies for various application fields, no affect by moisture or dust.
Key features:
Import 670nm red laser diode within 5mW to 100mW with metal heat sink cooling system and APC, ACC driving circuit board assures increasing laser beam stability, and highly clear red line alignment within maximum distance of 25 meters.
5V, 9V 1000mA AC/DC adapter supports 670nm red laser line generator with constant red laser beam and red reference line projection, no affect by overheating and over current impact.
Ultra compact designed 16mm and 26mm diameter anodized aluminum alloy housing tube assures convenient installation, easy operation, wide operating temperature stabilization and high stability under moving or calibration.
Adjustable focus optic lens enables the best quality red laser light emission and efficient conversion of the finest red line source in distance.
CW or pulsing laser selectable
Technical data:
| Item | Red Line Laser Modules |
| Wavelength (nm) | 670nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 16°, 20°, 30°, 45°, 50°, 60°, 93°,110° |
| Laser Class | IIIa, IIIB |
| Beam thickness at aperture (mm) | <2mm; At 2m distance: <2mm |
| Beam divergence (mrad) | 5mrad |
| Beam mode (before optics) | TE |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L91mm;D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 670nm red line laser module and 1 ea AC/DC adapter
Applications: industrial line alignment, drilling system, lumber machine, laser collimation, laser medical therapy device, lab experiment etc
Note: The use of high power 670nm red line laser up to 50mW to 100mW generates powerful red laser radiation and thermal energy of beam aperture. Please take laser safety measures and wear correct laser safety goggles so as to assure secured and free line alignment constantly.
