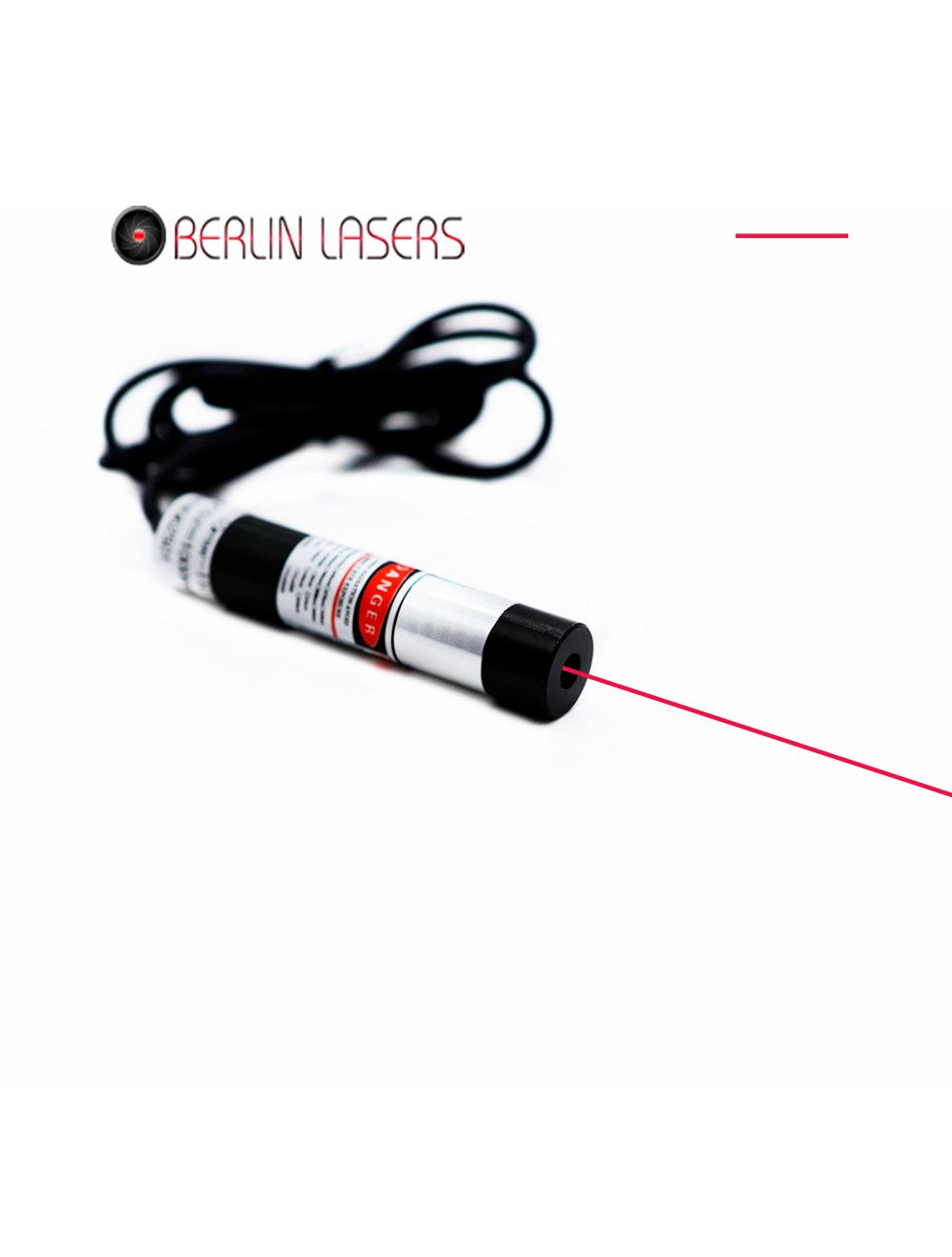

680nm 5mW to 100mW Red Line Laser Modules
Industrial and high tech fields designed 680nm red line laser modules make advanced use of import 680nm red laser diode, qualified optic lens and APC, ACC driving circuit board, projects highly stable red laser light and high stability red line with various line lengths and finenesses. After easy mounting onto industrial machine or device, within freely installed distance of 3 meters, laser line generators makes quick response, good direction and low production cost line alignment for institutes, labs and prominent colleges.
- Buy 3 for $117.99 each and save 2%
- Buy 5 for $115.99 each and save 3%
- Buy 10 for $113.99 each and save 5%
Employed by qualified glass coated lens or Powell lens with wide fan angles, passing through up to 24 hours aging preventing test and beam stability tests, 680nm red line laser modules project Gaussian beam or uniform distribution red laser beam. After correct use of optic lens fan angle and special design of adjustable focus optic lens, it gets the best quality red laser light source, and increasing fineness and brightness red line projection for tasks of moderate accuracy line aligning fields.
Key features:
Import 680nm 5mW to 100mW red laser diode with metal heat sink inside anodized aluminum alloy housing tube assures good thermal emitting, wide operating temperature stabilization, and stable red line alignment within 8 to 10 hours.
5V, 9V 1000mA AC/DC adapter supports 680nm red laser module with constant red laser light and red reference line projection, without affect by overheating and over current impact.
Glass coated lens or Powell lens within 10 to 110 degrees assures Gaussian or Non Gaussian distribution red laser beam. Correct output power and optic lens degree made laser line generator fulfills different accuracy line alignment.
Adjustable focus optic lens ensures immediate red laser light concentration, freely adjusted line fineness line alignment in distance.
APC, ACC driving circuit board makes intelligent feedback control of output power and electric current supply. The genuine red laser line alignment keeps up to 85% beam stability and long lifetime of more than 8,000 hours.
Technical data:
| Item | Red Line Laser Modules |
| Wavelength (nm) | 680nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 16°, 20°, 30°, 45°, 50°, 60°, 93°,110° |
| Laser Class | IIIa, IIIB |
| Beam thickness at aperture (mm) | <2mm; At 2m distance: <2mm |
| Beam divergence (mrad) | 5mrad |
| Beam mode (before optics) | TE |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L91mm;D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 680nm red line laser module and 1 ea AC/DC adapter
Applications: industrial precise line alignment, laser cutting, sand milling, lumber machine, stone, wood, metal processing, spectrum analysis, and optical instrument etc
Note: The use of high power 680nm red laser module up to 50mW to 100mW generates powerful red laser radiation and thermal energy. In order to avoid thermal energy hurt to human eyes and retina, please avoid eye exposure to beam aperture. Do remember to wear correct laser safety goggles so as to achieve secured and clear line alignment constantly.
