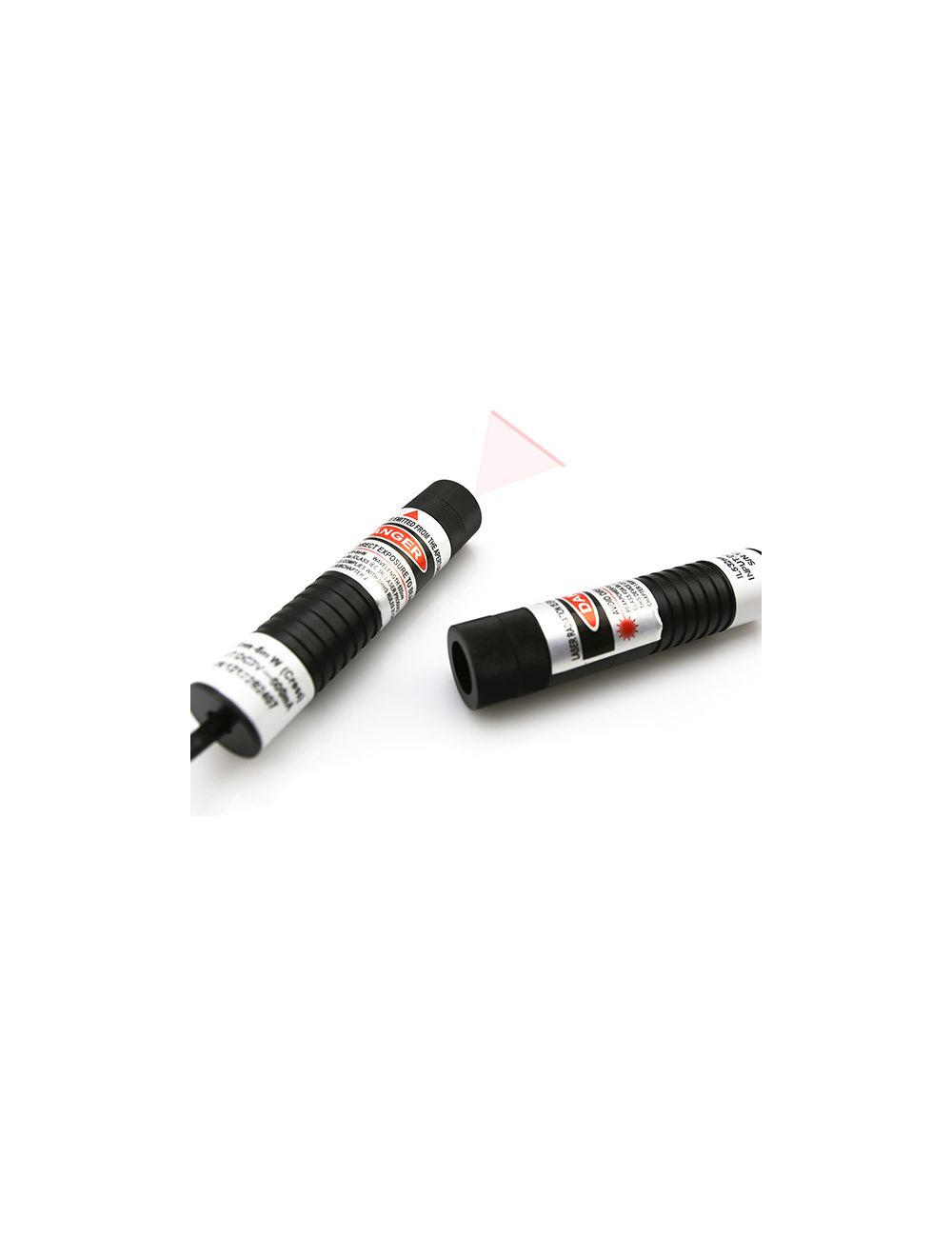

808nm Separate Crystal Lens Infrared Laser Line Generator

808nm separate crystal lens infrared laser line generator employs 16mm diameter aircraft used aluminum alloy housing tube, assuring easy carry, and operate in all kinds of high level of accuracy IR line alignment work fields. Employed by import 808nm infrared laser diode and superior performing metal heat sink cooling system, 808nm infrared laser module keeps high stability infrared laser line targeting, providing high photoelectric ability infrared laser line source for those of prominent institute, colleague, and lab researches etc.

was $149.99 Special Price $135.99
Availability: In stock
SKU
808-ILLGNG
  • Buy 3 for $133.99 each and save 1%
  • Buy 5 for $131.99 each and save 3%
  • Buy 10 for $129.99 each and save 4%

Wide output power range 808nm separate crystal lens infrared laser line generator is constructed with featured advantages of ultra compact and high duration structure, low production cost, easy operation and high beam uniformity. Combined qualified separate crystal lens, import 808nm infrared laser diode, APC driving circuit board, and metal heat sink cooling system into 16mm diameter made infrared laser module, easily obtaining constant infrared laser line source for current measurement, spectrum analysis, laser medical treatment device, military targeting, surveillance, intelligence system and communication etc.

◆ AC/DC power supply assures constant IR line alignment in multiple work fields.
Support by DC input power supply, 808nm infrared laser module accepts wide input operating voltage of 100V to 240V, enables constant infrared laser line alignment within daily operating time of 8 to 10 hours. External electric power source keeps stable electric current supply under strong interference or strong static.

◆ High duration metal housing and metal cooling system assure superior thermal conductivity.
Infrared laser line generator consists of aircraft used aluminum alloy housing material and copper raw material made 808nm infrared laser diode core part, integrated with metal heat sink cooling system, making sure of superior thermal conductivity, and highly stable IR laser line alignment in long term use.

◆ Separate crystal lens assures uniform IR line alignment precisely.
808nm infrared laser module adopts qualified separate crystal lens, within 10 to 93 degree, IR laser line is keeping up to 80% uniformity and various IR line lengths in use. Non Gaussian beam distribution infrared laser line fulfills tasks where the highest level of accuracy line alignment is in need.

Key features:

◆ APC driving circuit gets intelligent feedback control of electric current and output power, assuring high stability IR line alignment.
◆ Wide output power: 100mW, 200mW, 300mW, 400mW enables long distance and high uniformity infrared laser line alignment.
◆ Wide non Gaussian laser fan angles: 16°, 20°, 30°, 45°, 50°, 60°, 93° fulfills various IR line length and line thickness.
◆ High photoelectric ability and high linear quality IR laser line assures easy, long term line alignment under night vision illumination.

Technical Data:

Item Separate Crystal Lens Infrared Laser Line Generator
Wavelength(nm) 808nm
Output power(mW) 100mW, 200mW, 300mW, 400mW
Available Fan Angle (degree) 16°, 20°, 30°, 45°, 50°, 60°, 93°
Beam diameter at aperture(mm) 10cm distance:<2.5mm
Beam divergence(mrad) 6 mrad
Beam mode TE
Focus adjustable? Yes
Operating voltage(v) DC=3.0V
Operating current(mA) I<500mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension Dia16mm×Length71mm
Expected lifetime (hours) ≥8000 hours
Warranty 6 months

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. 808nm Separate crystal lens infrared laser line generator
2. DC input power Supply optional

WARNING! 808nm separate crystal lens infrared laser line generator emits invisible IR laser beam and is harmful to eyes. Infrared laser module should avoid eye exposure at close distance and wear professional infrared laser safety goggles.

Attention: For high powered or OEM 808nm separate crystal lens infrared laser line generator, please contact us free at support@berlinlasers.com.
