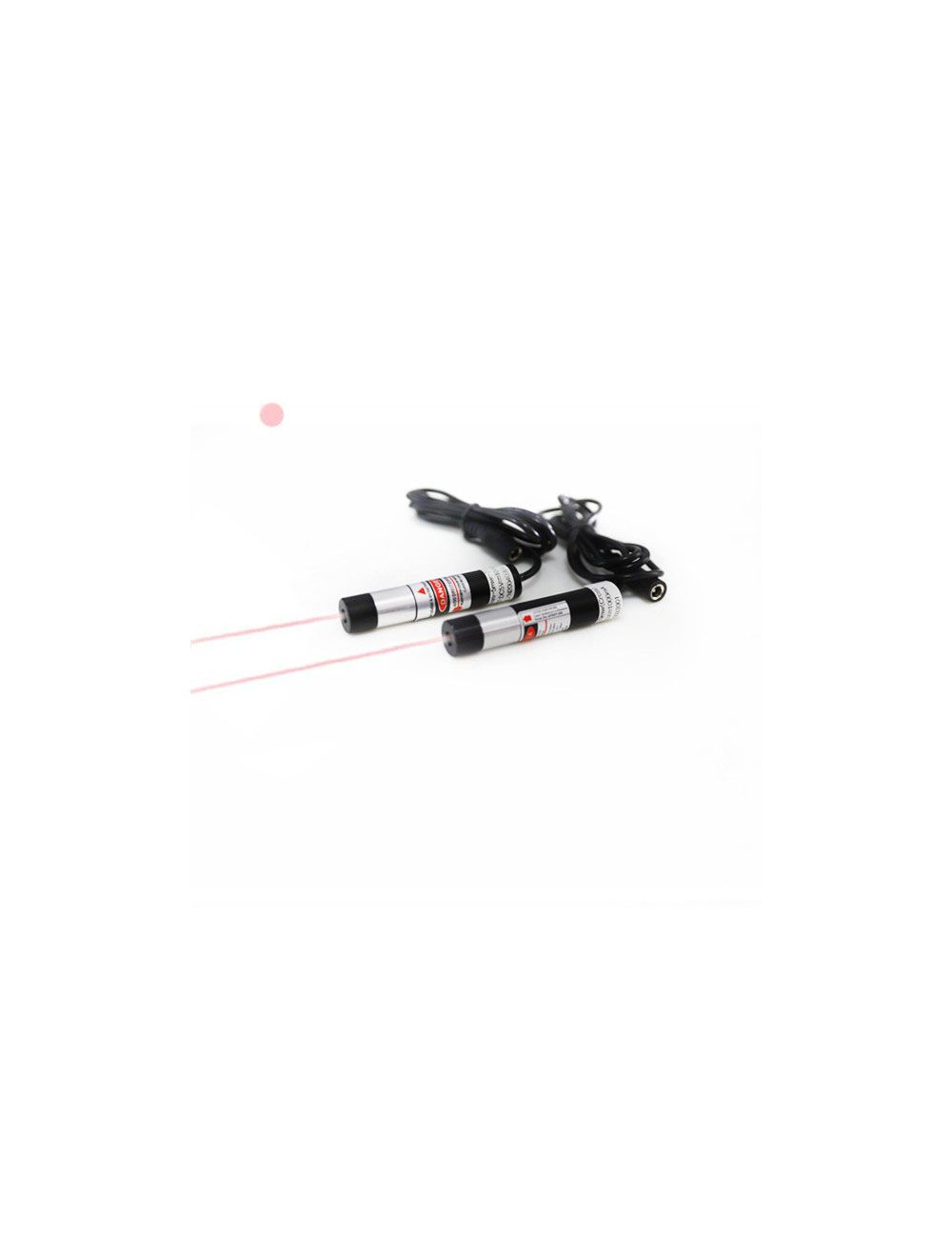

905nm 5mW 50mW 100mW 200mW 300mW 400mW 500mW Infrared Laser Diode Modules
Ultra compact designed 905nm infrared laser diode modules gather import 905nm infrared laser diode, qualified glass coated lens and APC, ACC driving circuit board, performing well with the best quality infrared laser light source of beam aperture. Under operation with easy connects with external electric power source and proper mounting onto night version machine or device, it makes high efficiency infrared laser light emission and converts into the clearest infrared dot aligning source for prominent institutes, labs and colleges etc.
- Buy 3 for $107.99 each and save 2%
- Buy 5 for $105.99 each and save 4%
- Buy 10 for $103.99 each and save 5%
Night version made 905nm infrared laser diode modules applies wide optical output power 905nm infrared laser diodes within 5mW to 500mW, and highly durable anodized aluminum alloy housing material. After easy mounting and special equipment with night version device, including infrared laser camera, black and white camera, it gets high photoelectric ability infrared laser light emission, and generates high accuracy and good direction infrared dot alignment constantly.
Key features:
Import 905nm infrared laser diodes with 5mW 50mW 100mW 200mW 300mW 400mW 500mW assures highly intense and powerful infrared laser beam emission, and highly clear infrared laser dot projection within 100 to 1000 meters in use.
AC/DC adapter assures larger space leaving for 905nm infrared laser diode module tube cooling down, and constant infrared laser dot projection, no affect by overheating and over current impact.
Adjustable focus optic lens enables immediate infrared laser light concentration, and efficient conversion of compact size infrared dot alignment in distance.
APC, ACC driving circuit board protects 905nm infrared laser module under increasing temperature, and gets reduced tube burning out or damage. Infrared laser dot alignments keep up to 85% beam stability within 8 to 10 hours use.
CW and pulsing laser selectable
Technical data:
| Item | Infrared Laser Diode Module |
| Wavelength (nm) | 905nm |
| Output power (mW) | 5mW 50mW 100mW 200mW 300mW 400mW 500mW |
| Laser Class | IIIa,IIIb, IV |
| Beam divergence (mrad) | 6mrad |
| Beam mode (before optics) | TE |
| Focus adjustable? | Yes |
| TTL Modulation | No |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA; |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm; D25mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 905nm infrared laser diode module and 1 AC/DC adapter
Applications: measurement, spectrum analysis, scientific research, lab experiment, infrared laser sight, laser medical therapy device
Note: The operation of 905nm infrared laser diode module within 5mW to 500mW emits invisible infrared laser beam, thus human eyes cannot capture IR laser light directly. Please avoid direct exposure to beam aperture. Do remember to wear correct infrared laser safety goggles so as to makes easy and free IR dot projection constantly.
