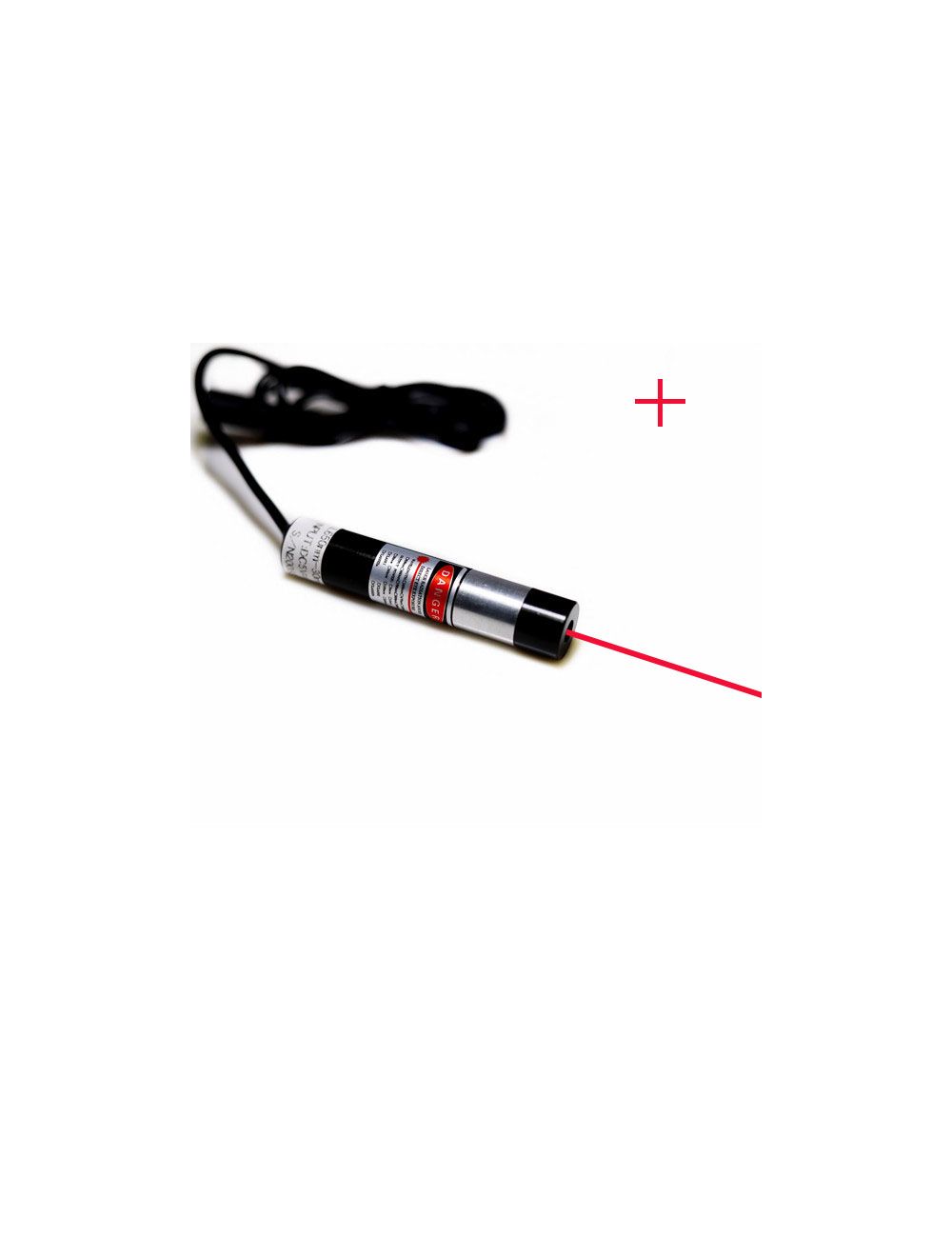

Adjustable Fineness 655nm 5mW to 100mW Red Cross Line Laser Modules
Direct Diode Emission 655nm red cross line laser modules apply import 655nm red laser diode, qualified glass coated lens and electric driving circuit board, keep work with intense red laser beam emission at several miles, and highly clear and stable red two perpendicular lines with accurate 90 degrees. After easy use of external electric power source and mounting onto industrial machine or device, 655nm red laser makes sure of quick response, high stability and no barrier cross line alignment for multiple application fields.
- Buy 3 for $110.99 each and save 2%
- Buy 5 for $108.99 each and save 4%
- Buy 10 for $106.99 each and save 5%
Industrial stabilized 655nm red cross line laser module adopts durable and ultra compact anodized aluminum alloy housing tube, featured by easy operation, good direction, no manual force input, and wide operating temperature stabilization. Employing qualified glass coated lens with special glass window and strict laser beam stability test up to 24 hours, 655nm red laser projects the most complex two perpendicular red cross line, and the lowest cost for both industrial and high tech use.
Key features:
Import 655nm 5mW to 100mW red laser diode with metal heat sink cooling system and APC, ACC driving circuit board inside metal housing tube achieves increasing laser beam stability, no decay light and long operating lifetime.
5V, 9V 1000mA AC/DC adapter makes constant red laser beam and red cross line projection within maximum operating time of 8 to 10 hours, no temperature increasing or no electric current impact.
Qualified 10, 15 and 110 degree fan angles glass coated lens projects different dimension and high linear quality red cross lines, no decay light for long lasting and long distance.
Adjustable focus lens enables high concentration red laser light emission, converts into high fineness and high brightness red vertical and horizontal lines generation.
CW or pulsing laser selectable
Technical data:
| Item | Red Cross Line Laser Modules |
| Wavelength(nm) | 655nm |
| Output power(mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angel (degrees) | 10°,15°,110° |
| Beam diameter at aperture(mm) | 2m beam diameter: <2.2mm |
| Beam divergence(mrad) | 5 mrad |
| Beam mode | TE |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm; D26mm×L150mm |
| Expected lifetime (hours) | ≥8,000 hours |
| Warranty | 6 months |
Packing list: 1 ea 655nm red cross line laser module and 1 ea AC/DC adapter
Applications: laser alignment for screen printing system, heat transfer machine, laser medical therapy and high tech
Note: High intensity and powerful red laser radiation and reflection are generating through high power 655nm red laser up to 50mW to 100mW. It might cause seriously thermal energy hurt to human eyes or retina. Please wear correct laser safety goggles and avoid eye exposure to beam aperture so as to make free and secured measurement.
