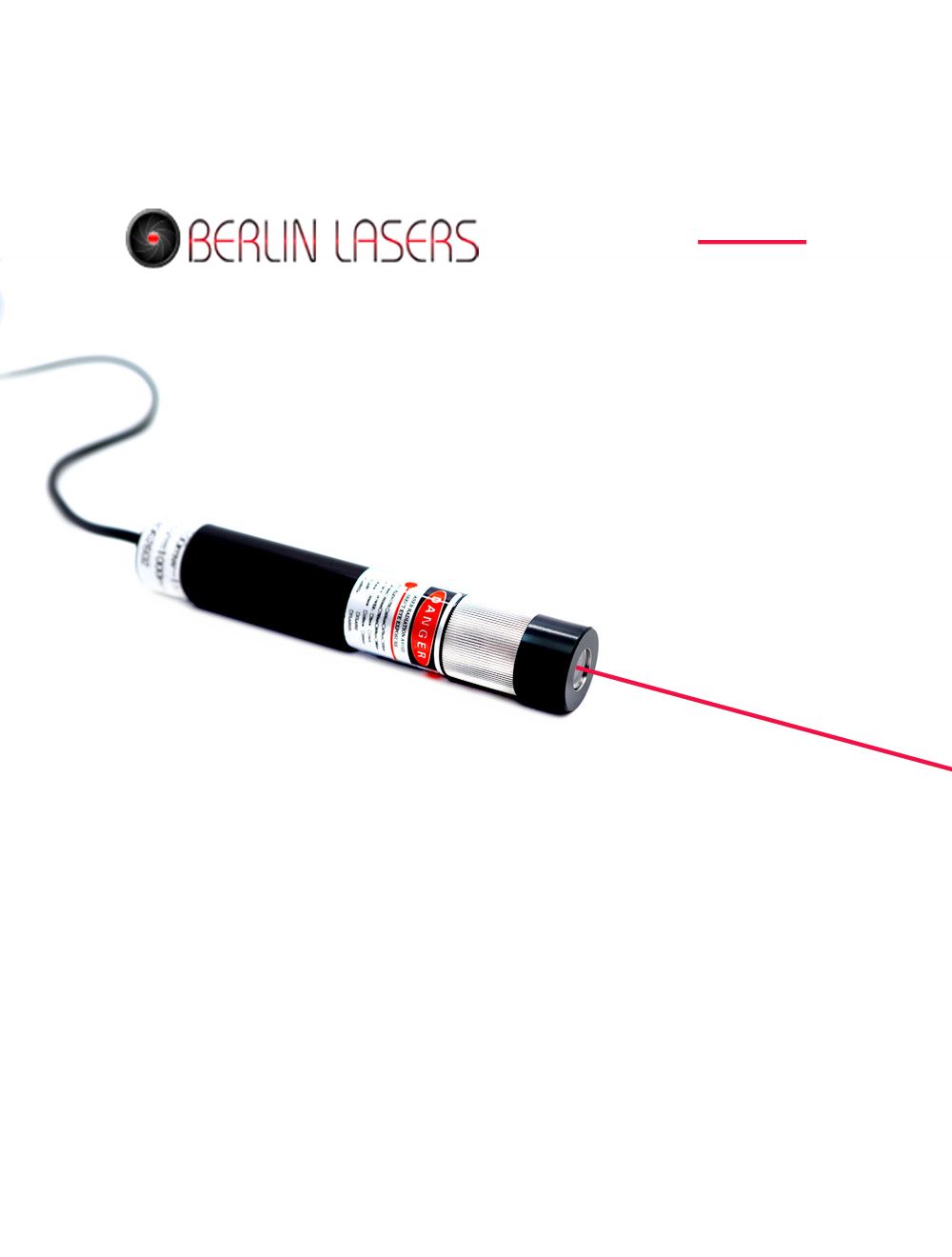

High Fineness 658nm 5mW to 100mW Red Line Laser Modules
The genuine design of 658nm red line laser modules apply import 658nm red laser diode, qualified glass coated lens or Powell lens, and APC, ACC driving circuit board, assuring high stability red laser light emission and red line projection. After easy use of external electric power source, direct diode emission made laser line generators provide users perfect red laser source for tasks of moderate level of accuracy line alignments.
- Buy 3 for $87.99 each and save 2%
- Buy 5 for $85.99 each and save 4%
- Buy 10 for $83.99 each and save 7%
Direct diode emission 658nm red line laser modules provide users high stability, low product cost and long lasting red line alignment source for multiple application fields. Being made with qualified glass coated lens or Powell lens within 10 to 110 degree, equipping with glass widow and up to 24 hours aging preventing test, it achieves high linear quality and high precision red line measurement for prominent colleges, labs and institutes etc.
Key features:
Import 658nm red laser diodes within 5mW to 100mW with metal heat sink cooling system assures increasing laser beam stability of at least 40%, projecting highly stable red laser line emission in continuous use.
AC/DC adapter with 5V, 9V support laser line generator with continuous red laser beam emission, constant red line alignment. No decay light under overheating and over current impact.
Easy screw of adjustable focus optic lens enables freely adjusted red line fineness, and high accuracy measurement within maximum distance of 25 meters.
Ultra compact designed 16mm and 26mm diameter tube made 658nm red lasers assure convenient installation, quick response and no barrier red line alignment.
APC, ACC driving circuit board makes intelligent feedback control of output power and electric current supply, and up to 85% beam stability for long lasting and long distance use.
CW or pulsing laser selectable
Technical data:
| Item | Red Line Laser Modules |
| Wavelength (nm) | 658nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 16°, 20°, 30°, 45°, 50°, 60°, 93°,110° |
| Laser Class | IIIa, IIIB |
| Beam thickness at aperture (mm) | <2mm; At 2m distance: <2mm |
| Beam divergence (mrad) | 5mrad |
| Beam mode (before optics) | TE |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L91mm;D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 658nm red line laser module and 1 ea AC/DC adapter
Applications: industrial line alignment, optical instrument, laser medical treatment device, lab experiment, high tech
