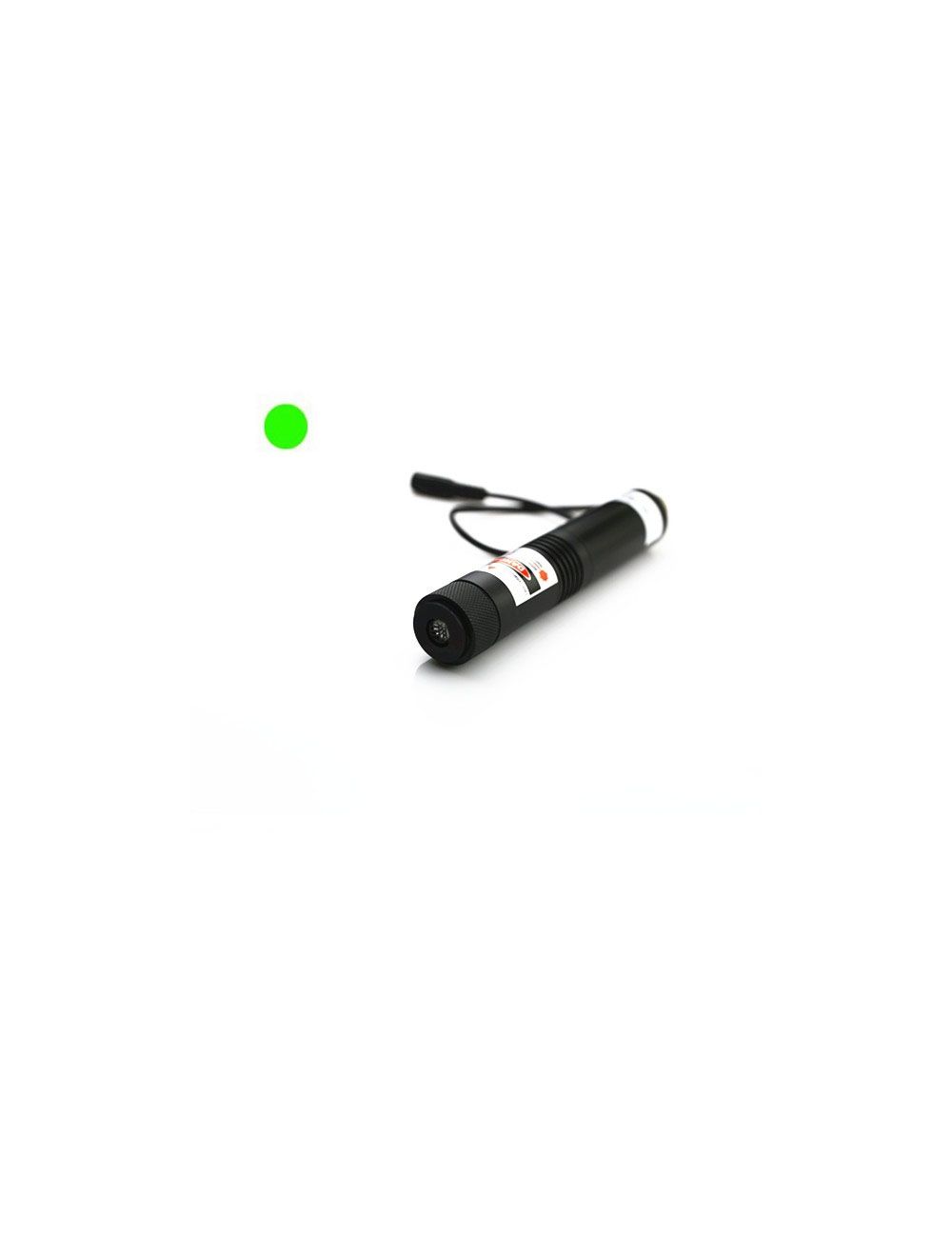

High Power 515nm Forest Green Dot Laser Module 150mW-300mW

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $329.99

Special Price $299.99

  • Buy 2 for $296.99 each and save 2%
  • Buy 5 for $293.99 each and save 3%
  • Buy 10 for $289.99 each and save 4%

Quick Overview

On consideration of thermal emitting and good beam stability, high power 515nm forest green dot laser module employs import 515nm green laser diode and separate metal heat sink cooling system configuration, ensuring increasing beam stability and the best forest green laser source emission stably and reliably. Supported by external DC power source and easy adjustment of laser beam focus, forest green laser provides continuous and the most accurate forest green reference dot alignment for prominent colleges, institutes, labs, scientific research and industrial dot aligning sources etc.

* Required Fields

Details

Beginning with high power up to 150mW to 300mW with import laser diode, high power 515nm forest green dot laser module enables direct diode emission and the most intense and powerful forest green laser source emission for both high lighting and long distance. Under special design of basic thermal emitting and APC, ACC driving circuit board, the genuine forest green laser dot alignment maintains constant and highly stable performance for multiple application fields of laser medical therapy device, drilling system, laser marking and laser engraving work etc.

◆ Direct diode emission forest green laser module assures even more stable dot alignment. Available with shorter wavelength than 532nm green DPSS laser, 515nm forest green dot laser module achieves increasing beam stability of at least 40%. Easy screw of adjustable cylindrical lens obtains concentrated forest green laser light and the most accurate green laser dot projection easily.

◆ Continuous dot alignment for multiple precise device manufacturing works. External AC/DC adapter supports high power 515nm green laser module with continuous dot alignment, also leaves quite larger inner space for thermal emitting. Electric wires extension for both laser tube and DC power source assures easy installation within maximum distance of 3 meters and bears harsh occasion of high temperature and strong corrosion.

◆ Durable structure made forest green dot laser module applied for multiple fields. Being made with durable aircraft used aluminum alloy housing material and inner APC, ACC driving circuit board, high power 515nm green laser obtains superior nice thermal conductivity and intelligent feedback control of output power and electric current supply. Laser beam stability maintains up to 80% under operating within 8 to 10 hours per day.

Technical Data:

Item High Power Green Dot Laser Module
Wavelength (nm) 515nm
Output power (mW) 100mW, 150mW, 200mW, 300mW
Laser Class IIIb
Beam thickness at aperture (mm) <2.8mm
Beam divergence (mrad) <2.5mrad
Beam mode (before optics) TEM
Focus adjustable? Yes
TTL Modulation NO
Operating voltage(v)  DC=9V
Operating current(mA) I<1000mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

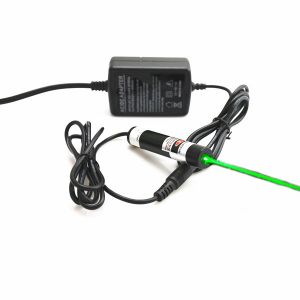

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 9V,1000mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. High power 515nm Green dot laser module
2. DC input power Supply optional

Warning! Any work of high power 515nm forest green dot laser module produces serious thermal energy as well as powerful forest green laser radiation and reflection, causing serious hurt to human eyes for any possible beam exposure at close distance.

Never stare at laser beam aperture. Do remember to operate such high power laser modules under professional aligning devices. Do wear correct 515nm wavelength preventing laser safety goggles & glasses.

Attention: For OEM high powered 515nm green dot laser modules, please contact us free at support@berlinlasers.com.
