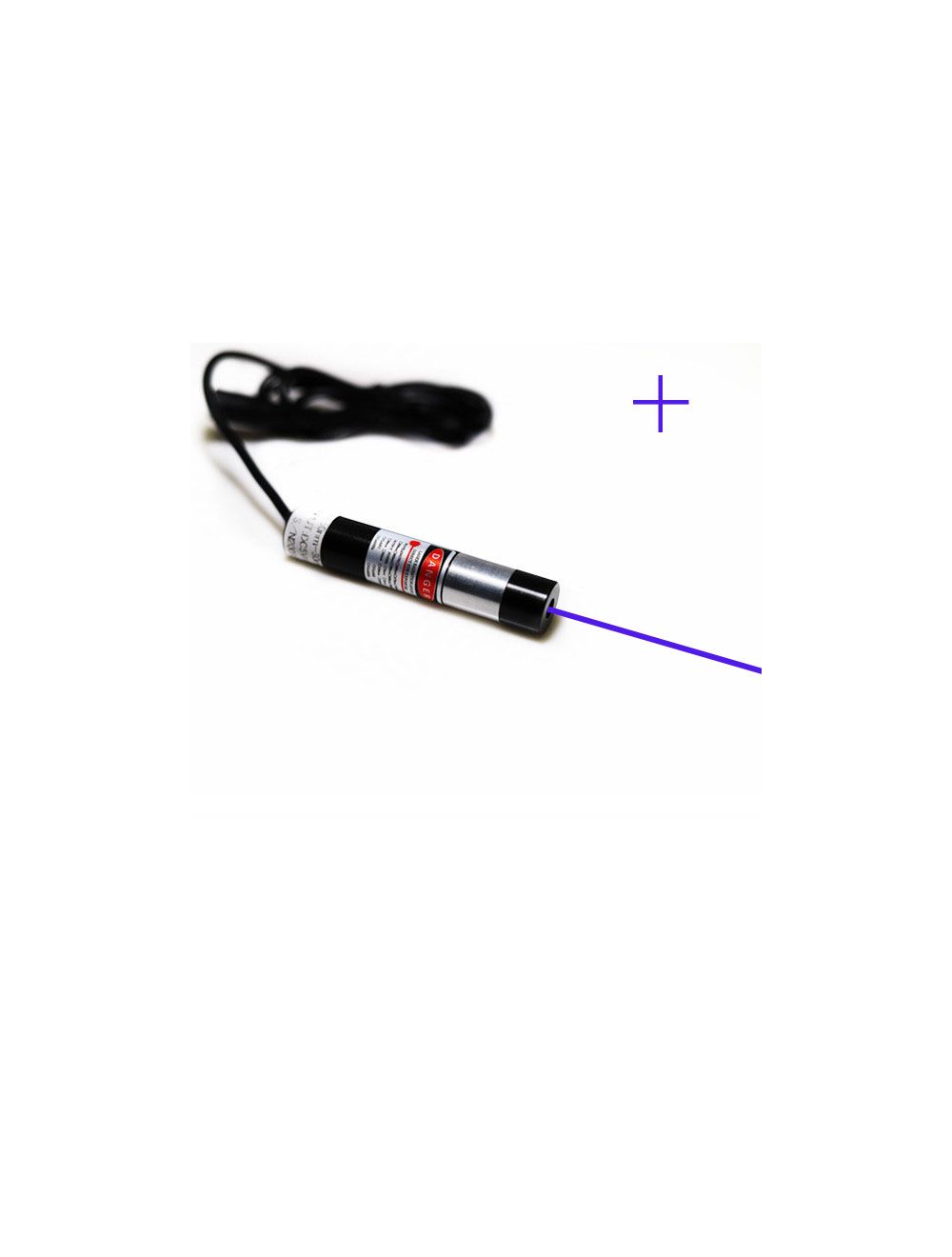

488nm 5mW to 100mW Blue Cross Line Laser Modules
Direct diode emission 488nm blue cross line laser modules apply import 488nm blue laser diode, qualified glass coated lens and electric driving circuit board, project high transmittance blue laser light and highly clear two perpendicular blue lines with accurate 90 degrees. Ultra compact designed blue laser enables easy installation and adjustment, makes no barrier and low product cost cross line alignment for labs, institutes and colleges etc.
- Buy 3 for $187.99 each and save 1%
- Buy 5 for $185.99 each and save 2%
- Buy 10 for $183.99 each and save 3%
Intense beam and anodized aluminum alloy housing 488nm blue cross line laser module gets featured advantages of good direction, quick response, wide operating temperature stabilization. Qualified glass coated lens with special glass window assures high linear quality and highly fine blue cross line projection, and stable performance under moisture or dust.
Key features:
Import 488nm blue laser diode 5mW to 100mW with metal heat sink cooling system inside 16mm or 26mm diameter metal housing tube allows convenient installation, easy cross line projection, and high stability cross line measurement.
5V, 9V 1000mA AC/DC adapter assures constant blue laser beam and blue cross line projection, stable blue cross line projection under overheating or over current impact.
Up to 24 hours aging preventing and beam stability test protect 488nm blue laser module with the best work condition, up to 85% beam stability after long lasting use.
Adjustable focus optic lens enables quick response blue laser light concentration, increasing brightness and fineness blue cross line alignment in distance.
CW or pulsing laser selectable
Technical data:
| Item | Blue Cross Line Laser Module |
| Wavelength (nm) | 488nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 15°, 110° |
| Laser Class | IIIa, IIIB |
| Beam thickness at aperture (mm) | <3mm |
| Beam divergence (mrad) | 1.5mrad |
| Beam mode (before optics) | near TEM00 |
| Focus adjustable? | Yes |
| TTL Modulation | No |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm; D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 488nm blue cross line laser module and 1 ea AC/DC adapter
Applications: laser medical imaging, biomedical, high tech, scientific research and lab experiment etc
Note: High power 488nm blue laser up to 50mW to 100mW generates powerful blue laser radiation and reflection of beam aperture. In order to avoid thermal energy hurt to human eyes and retina, please wear correct laser safety goggles and avoid eye exposure so as to make free and secured use constantly.
