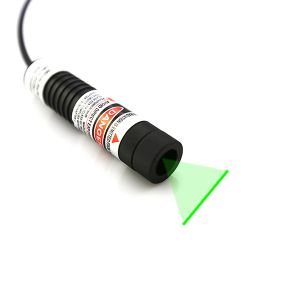

520nm Green Parallel Line Laser Module

520nm 200mW-4000mW Green Diode Laser System

520nm 200mW-4000mW Green Diode Laser System

TEM00 10mW-120mW 520nm Green Diode Laser System

Available with much shorter wavelength than 532nm green DPSS laser, while 520nm green diode laser system is just emitting high stability green laser beam with high beam intensity in color of forest green. Available with special laser beam transverse mode of TEM00, 520nm green diode lasers keep the highest brightness and low beam divergence green laser beam emission and compact size green circular light on work surfaces. It provides perfect green laser source for various high tech work fields for university, lab experiments, and research centers etc.

was $1,339.00 Special Price $1,329.00
Availability: In stock
SKU
tem00-520vdls

520nm green diode laser system gets wide output power level of 10mW to 120mW, always providing high stability and high brightness green laser source for all working distances and all lighting occasions. According to its direct 520nm green laser diode emission, the desired green laser light keeps high output power stability in long-term operation, getting extremely long serving lifetime and the most competitive price.

This special TEM00 beam transverse mode 520nm green diode lasers is widely used for various scientific research applications, involving laser measurement, communications, spectrum analysis, laser projection, laser displaying, biomedical applications, holography, and metrology etc. Both 520nm green laser system and AC power supply are FDA safety standard approval, workable for all lighting occasions efficiently.

Key features:

Compact and reduce dimension structure, easy and convenient to operate
Direct diode emission 520nm green laser, high stability output power, long lifetime and low cost
Wide output power level of 10mW to 120mW
High lighting efficiency and good linear analogue
TEM00 beam mode obtains highest brightness laser beam and compact size circular beam
Protection from statics, over-current, and overheating

Technical data:

Item Green Diode Laser System
Wavelength 520±5nm
Output power 10mW, 20mW, 30mW, 50mW, 100mW, 120mW
Transverse mode TEM00
Operation Mode CW
Power Stability(rms, over 4hours) <1%, <3%, <5%
M2 factor <2
Beam divergence, full angle (mard) <2
Warm up time (minutes) <5
Beam diameter at aperture (mm) <3
Operating temperuter (℃) -10-40
Storage temperature (℃) -10-50
Modulation Option TTL/Analogue
Severing lifetime (hours) TTL/Analogue
Warranty period 1 year

Note:

Berlinlasers accepts customize 520nm point laser, line laser and crosshair laser, fiber coupled lasers and OEM lasers on basis of customers' requirements. All TEM00 520nm green diode lasers specifications accept customize according to user's need. For any OEM laser, please feel free to contact us via email support@berlinlasers.com.
