TTL Modulation 505nm Green Cross Laser Alignment

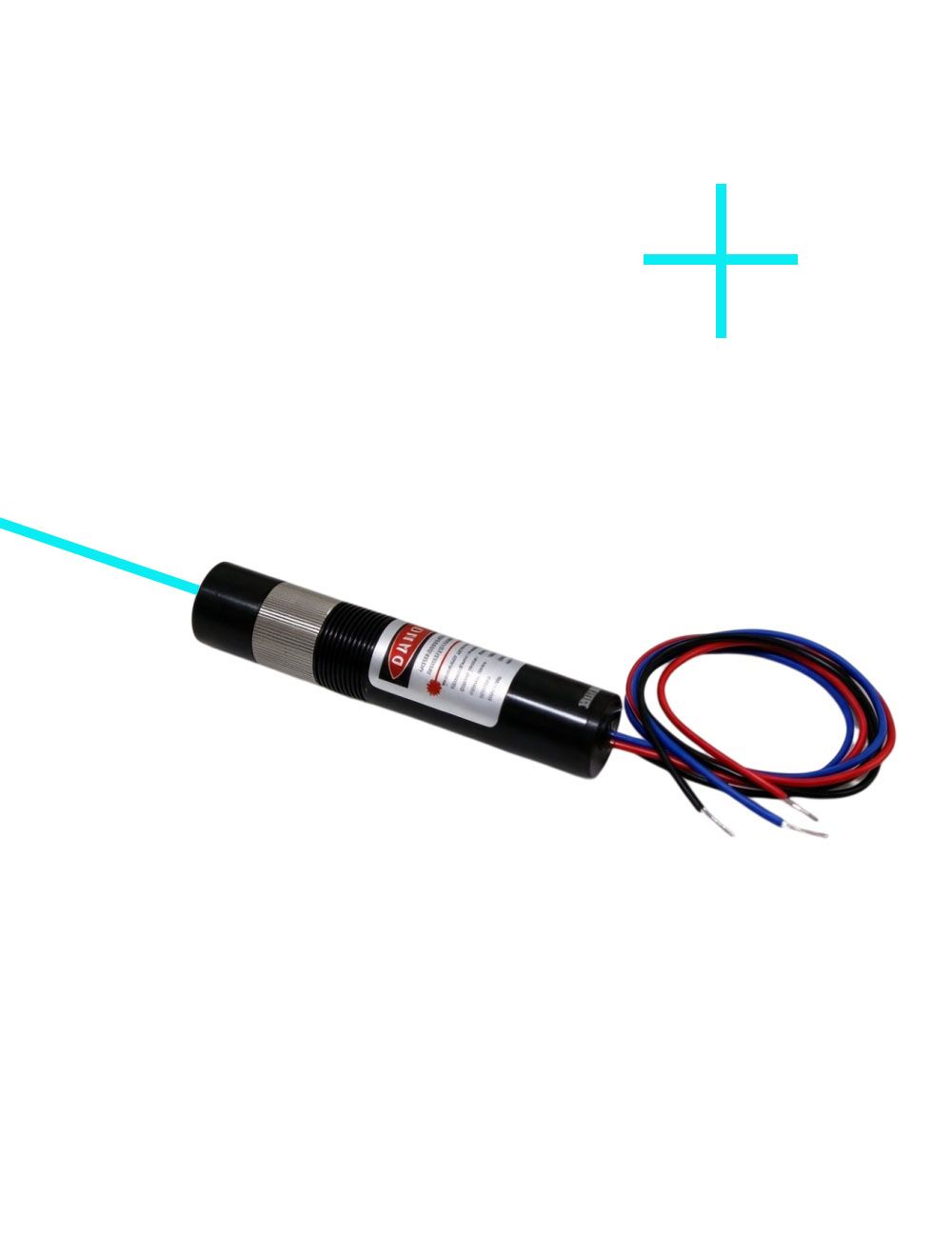

TTL modulation 505nm green cross laser alignment integrates a 505nm semiconductor laser diode and a glass coated lens to project accurate green vertical and horizontal lines. It supports external TTL signal control and features an adjustable focus design to achieve increasing accuracy measurement across various distances. It is applicable for machine vision calibration, CNC tool setting, cutting guidance, and scientific research.
- Buy 2 for $167.99 each and save 1%
- Buy 5 for $165.99 each and save 2%
- Buy 10 for $163.99 each and save 4%
Industrial stability grade TTL modulation 505nm green cross laser alignment features TTL external signal modulation and adjustable focus lens design, configured with metal heat dissipation and APC driving circuit, it gets optimized cross line accuracy and brightness, serving as a high contrast cross line source for industrial alignment, vision system calibration, and precision assembly.
Key features:
◆High visibility 505nm green light converts into clear green cross lines on light colored fabrics, metallic surfaces, and in dark field environments.
◆TTL high speed modulation power source with on/off switch enables strobing to reduce motion blur and thermal load.
◆Qualified glass coated lens with focusable lens ensures increasing brightness and fineness green vertical and horizontal lines projection in the far field, without light blur or dim.
◆APC constant power control inside a heat dissipating metal housing bears vibration, suitable for long term continuous operation.
Technical parameters:
| Item | TTL Modulation Green Cross Line Laser Module |
| Wavelength (nm) | 505nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 15°, 110° |
| Laser Class | IIIa, IIIB |
| Beam thickness at aperture (mm) | <2.8mm; At 2m distance: <2.0mm |
| Beam divergence (mrad) | <4mrad |
| Beam mode (before optics) | TEM00 |
| Focus adjustable? | Yes |
| TTL Modulation Method | TTL Modulation |
| Modulation frequency | 1Hz-1MHz |
| Operating voltage(v) | 3V to 12V |
| Operating temperature(℃) | 10℃～30℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm; D18.9mm×L110mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Applications:
◆CNC and machine tools
◆Machine vision:PCB alignment, and component dimension or defect inspection.
◆Cutting, textile and printing: Fabric cutting, heat transfer machines, screen printing alignment
◆Stone, wood, metal processing: Crosshair marking for sawing, slitting, bending, and welding.
◆Automated Production Lines: Robot TCP calibration, conveyor belt alignment
◆Scientific research and medical: Optical path alignment, medical imaging and treatment equipment.
Attention: For high powered or OEM 505nm TTL modulation green cross line lasers, please contact us free at support@berlinlasers.com.
