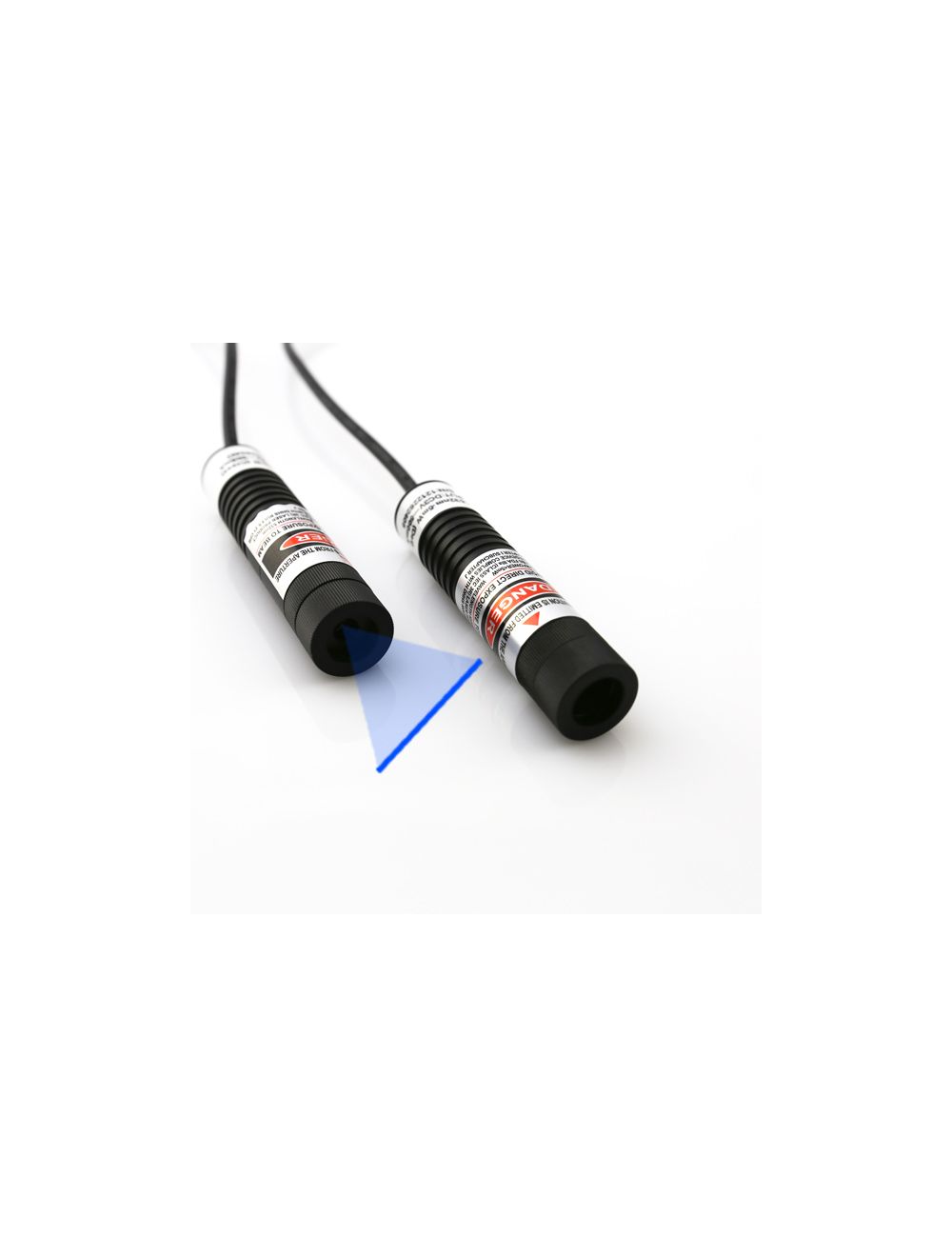

Uniform 445nm Blue Line Laser Module

In need of qualified blue line laser source? Uniform distribution 445nm blue line laser module just fulfills the brightest blue laser line generation with high uniformity, high straightness and high brightness. Combined all components of 445nm blue laser diode with qualified Powell glass cylindrical lens, constant current driving circuit and metal heat sink cooling system, this compact designed blue laser line generator offers the best blue laser line source for OEM laser applications, laser display, decorative light, and signaling.

was $159.99 Special Price $135.98
Availability: In stock
  • Buy 2 for $131.98 each and save 3%
  • Buy 5 for $130.98 each and save 4%
  • Buy 10 for $125.99 each and save 7%

Non-Gaussian distribution 445nm blue laser line generator module adopts 445nm blue laser diode direct beam emission, offering a highly stable and reliable blue line laser source for industrial line alignment, positioning and OEM laser application. Designed with high power and wide selection of laser fan angles, focusable blue line laser module provides extremely bright and visible blue laser line with high fineness, high straightness and high uniformity.

◆ 445nm direction emission blue line laser module offers highly stable and reliable laser line projection.
Compact design blue line laser module adopts metal heat sink thermal emitting system. It is at least 10 times better than formal cooling system. Together with constant current driving circuit board, it assures the most stable and reliable blue line laser emitting for all occasions.

◆ Durable aluminum housing laser diode module workable for wide operating temperature
445nm blue laser line generator employs anodized aluminum material laser tube, assures perfect protection from mechanical shocking and calibration, anti-interference, anti-statistic and thermal conductive. Blue laser line keeps stable with wide operating temperature of -10 degree until 50 degree Celsius.

Key features:

High uniformity and focusable blue laser line projection in continuous laser use. Laser module power keeps stable in 24 hours continuously.
High speed blue line laser targeting with high accuracy and high precision
High laser power range: 50mW, 80mW, 100mW
Non-Gaussian distribution laser fan angles: 16°, 20°, 30°, 45°, 50°, 60°, 93°. Maximum line length achieves 6 meters.
Low energy consumption, low labor force, long serving lifetime.

Technical parameters:

Item Blue Line Laser Module
Wavelength (nm) 445nm
Output power (mW) 50mW, 80mW, 100mW
Available Fan Angle(degrees) 16°, 20°, 30°, 45°, 50°, 60°, 93°
Laser Class IIIB
Beam thickness at aperture (mm) <2.5mm; At 2m distance: <2.5mm
Beam divergence (mrad) 3.0mrad
Beam mode (before optics) TEM
Focus adjustable? No
Operating voltage(v)  DC=3.0V
Operating current (mA)  I<500mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D16mm×L91mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. 445nm blue line laser module
2. DC input power Supply

Attention: For high powered or OEM 445nm blue line laser modules, please contact us free at support@berlinlasers.com.
