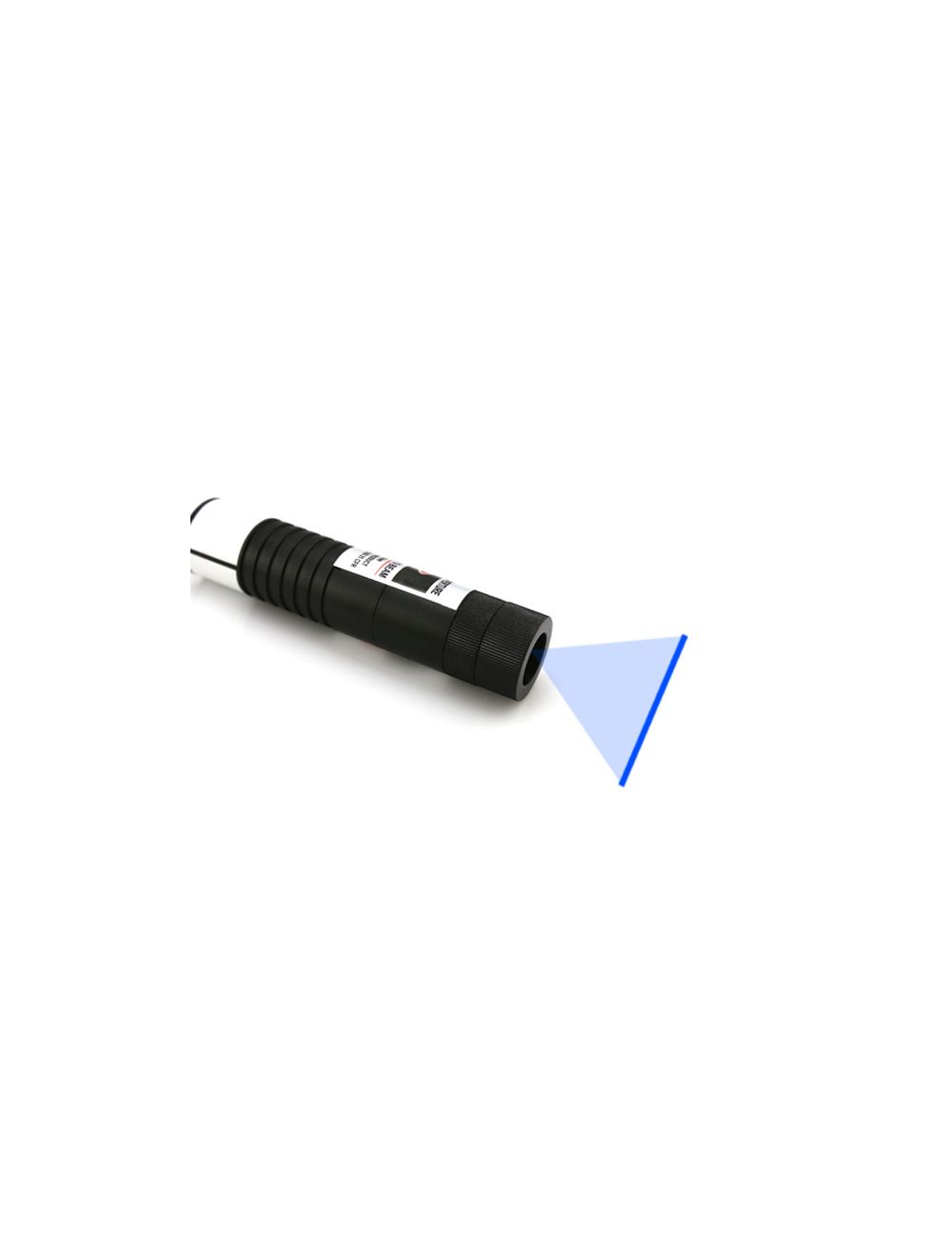

445nm Glass Lens Blue Laser Line Generator

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $159.98

Special Price $135.99

  • Buy 3 for $133.99 each and save 2%
  • Buy 5 for $131.99 each and save 3%
  • Buy 10 for $129.99 each and save 5%

Quick Overview

Employed by import 445nm blue laser diode and qualified glass coated lens, 445nm blue laser line generator is easily obtaining high linear quality and high laser beam transmittance blue reference in use. This blue laser module gets charming blue laser beam emission in laser line alignment work, not only workable for formal industrial line alignment, also providing good blue laser line source for laser displaying, laser show, decoration, and military targeting etc.

* Required Fields

Details

445nm glass lens blue laser line generator consists of high duration aircraft used aluminum alloy housing, cooper raw material made 445nm blue laser diode core part and metal heat sink cooling system, obtaining superior thermal conductivity and highly stable blue line targeting for long term line alignment work. Within wide output power range of 50mW to 100mW, this APC driving circuit board made 445nm blue laser module keeps high fineness and no light decay blue line source generation effectively.

◆ DC input power supply keeps constant blue laser line targeting.
Connected with DC input power supply, high power blue laser line generator gets constant blue reference line targeting immediately. 445nm blue laser module gets free installation within 3 meters, and keeps stable line alignment under harsh occasion including strong interference, strong static etc.

◆ Genuine line alignment with perfect laser beam stability in multiple work fields
This 445nm blue laser line generator is an industrial stabilized line alignment tool. After simple selection of output power and glass coated lens degree, it emits high linear quality blue line with various line lengths for multiple industrial and high tech line aligning use.

◆ Constant current and output power supply for long term line aligning use.
445nm blue laser module gets intelligent feedback system from its APC driving circuit, keeping constant output power and electric current supply, and obtaining highly stable blue line targeting within 8 to 10 hours a day.

◆ Strictly tested laser line alignment tool with long serving lifetime.
Blue laser line generator passes through strict tests including rapid electric adding test, alternative high and low temperature test, up 24 hours aging test, assuring highly stable blue line targeting, no appearance of laser light decay or blur in long term use.

Key features:

Portable 26mm diameter tube design allows easy carry, operate and installation.
Continuous blue laser line targeting after proper connect with DC input power supply.
Wide output power range from 50mW to 100mW assures long distance and high lighting line alignment.
Wide range optic lens degree within 10 degree to 110 degree generates different line length for multiple line aligning use.
High stability blue laser line targeting and long serving lifetime of up 8,000 hours.

Technical parameters:

Item Glass Lens Blue Laser Line Generator
Wavelength (nm) 445nm
Output power (mW) 50mW, 80mW, 100mW
Available Fan Angle(degrees) 10°, 20°, 30°, 45°, 60°, 110°
Laser Class IIIB
Beam thickness at aperture (mm) <2.5mm; At 2m distance: <2.5mm
Beam divergence (mrad) 3.0mrad
Beam mode (before optics) TEM
Focus adjustable? No
Operating voltage(v)  DC=3.0V
Operating current (mA)  I<500mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D16mm×L91mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. 445nm Glass Lens Blue Laser Line Generator
2. DC input power Supply

Attention: For high powered or OEM 445nm blue laser line generators, please contact us free at support@berlinlasers.com.
