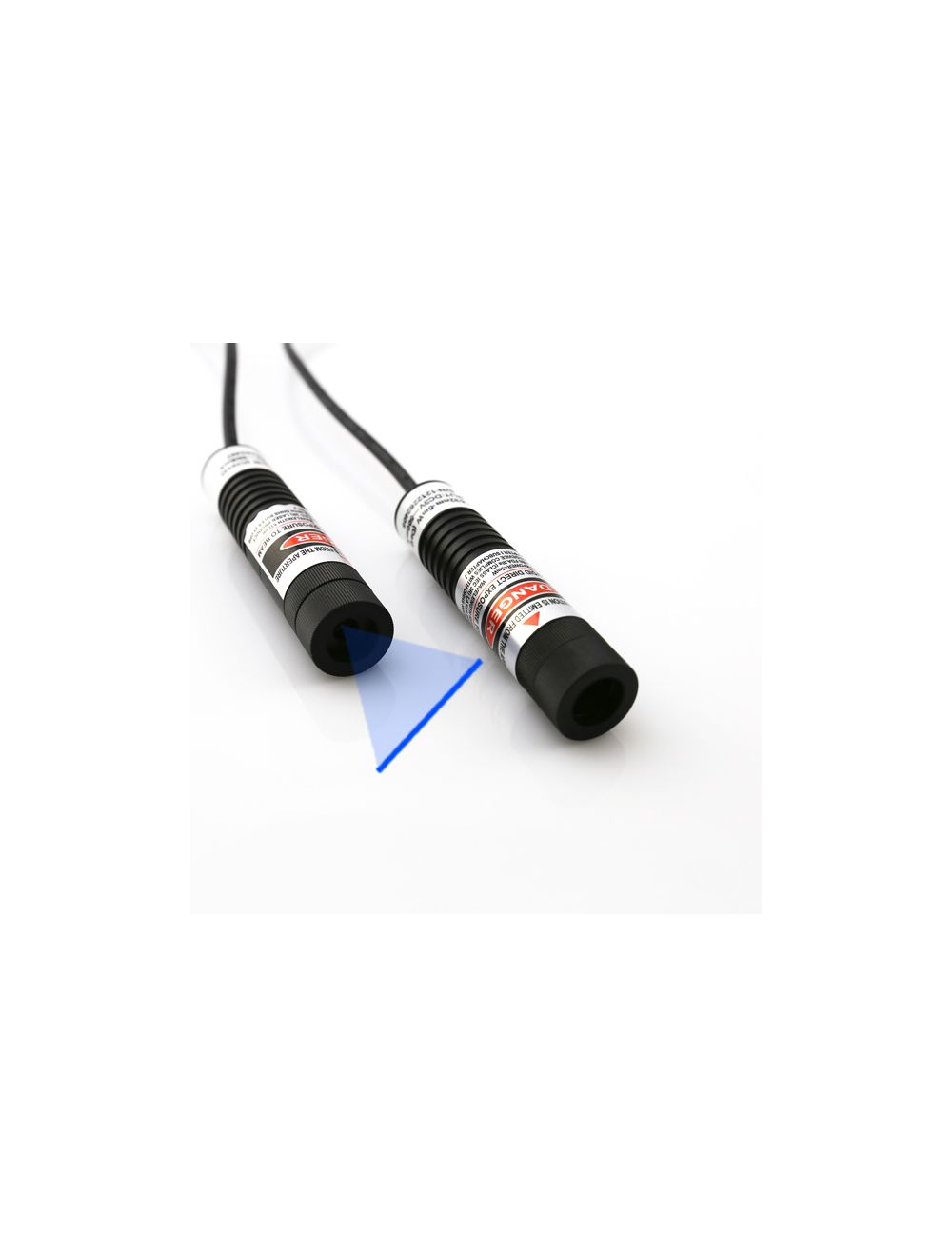

445nm Separate Crystal Lens Blue Laser Line Generator

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $159.98

Special Price $135.99

  • Buy 3 for $133.99 each and save 2%
  • Buy 5 for $131.99 each and save 3%
  • Buy 10 for $129.99 each and save 5%

Quick Overview

445nm separate crystal lens blue laser line generator combines qualified import 445nm blue laser diode and optic lens into compact designed laser tube, generating highly stability and high linear quality blue reference line immediately. Blue laser line keeps up 80% laser beam uniformity, and same line brightness from middle part toward both ends of blue line. This charming blue light emitting 445nm blue laser module provides the highest level of accuracy line alignment for industrial laser line use, laser displaying, laser show, decoration and laser medical treatment research work etc.

* Required Fields

Details

Employed by import 445nm blue laser diode with copper raw material as core part, metal heat sink and aluminum alloy housing material, 445nm separate crystal lens blue laser line generator gets the best thermal conductivity, thus easily obtaining stable enough blue line targeting in long term use. Available with selectable output power and optic lens degree, blue laser module is getting different laser beam fan angle and generating different size blue line length. Simple installation and adjustment of blue line direction and thickness assures the easiest line alignment all the time.

◆ APC driving circuit board assures constant output power and electric current supply.
445nm blue laser module gets high power range of 50mW to 100mW, generating high intense and powerful blue laser beam and thermal energy in long term line alignment use. APC driving circuit makes sure of efficient intelligent feedback control of provided output power and electric current, keeping reliable blue line targeting within 8 to 10 hours a day.

◆ DC input power supply obtains high speed line alignment stably.
External 3V input power supply connected blue laser line generator keeps stable and moderate brightness blue line targeting easily, also keeping good performance under harsh occasion of strong interference, and strong static etc.

◆ Separate crystal lens gets highly uniform and good linear quality blue line alignment.
Within 10 degree to 93 degree, 445nm blue laser module obtains high fineness blue laser line with various line lengths from 0.5 meter to 6 meters. Simple screw of laser beam aperture part obtains different line thickness conveniently.

Key features:

High stability 445nm blue laser line generator passes through strict 24 hours aging preventing test, alternative high and low temperature changing tests etc.
Metal heat sink cooling system and APC driving circuit assure constant blue laser line targeting easily.
Portable 16mm diameter tube made blue laser module allows easy installation, adjustment and operation.
Wide output power range of 50mW to 100mW generates clear enough blue line source for long distance and high lighting occasions.
Wide separate crystal lens degree of 10°to 93°gets various blue laser line lengths for multiple line aligning uses.
Long serving lifetime of more than 8,000 hours under proper operation

Technical parameters:

Item Separate Crystal Lens Blue Laser Line Generator
Wavelength (nm) 445nm
Output power (mW) 50mW, 80mW, 100mW
Available Fan Angle(degrees) 16°, 20°, 30°, 45°, 50°, 60°, 93°
Laser Class IIIB
Beam thickness at aperture (mm) <2.5mm; At 2m distance: <2.5mm
Beam divergence (mrad) 3.0mrad
Beam mode (before optics) TEM
Focus adjustable? No
Operating voltage(v)  DC=3.0V
Operating current (mA)  I<500mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D16mm×L91mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. 445nm blue laser line generator
2. DC input power Supply

Attention: For high powered or OEM 445nm blue laser line generator, please contact us free at support@berlinlasers.com.
