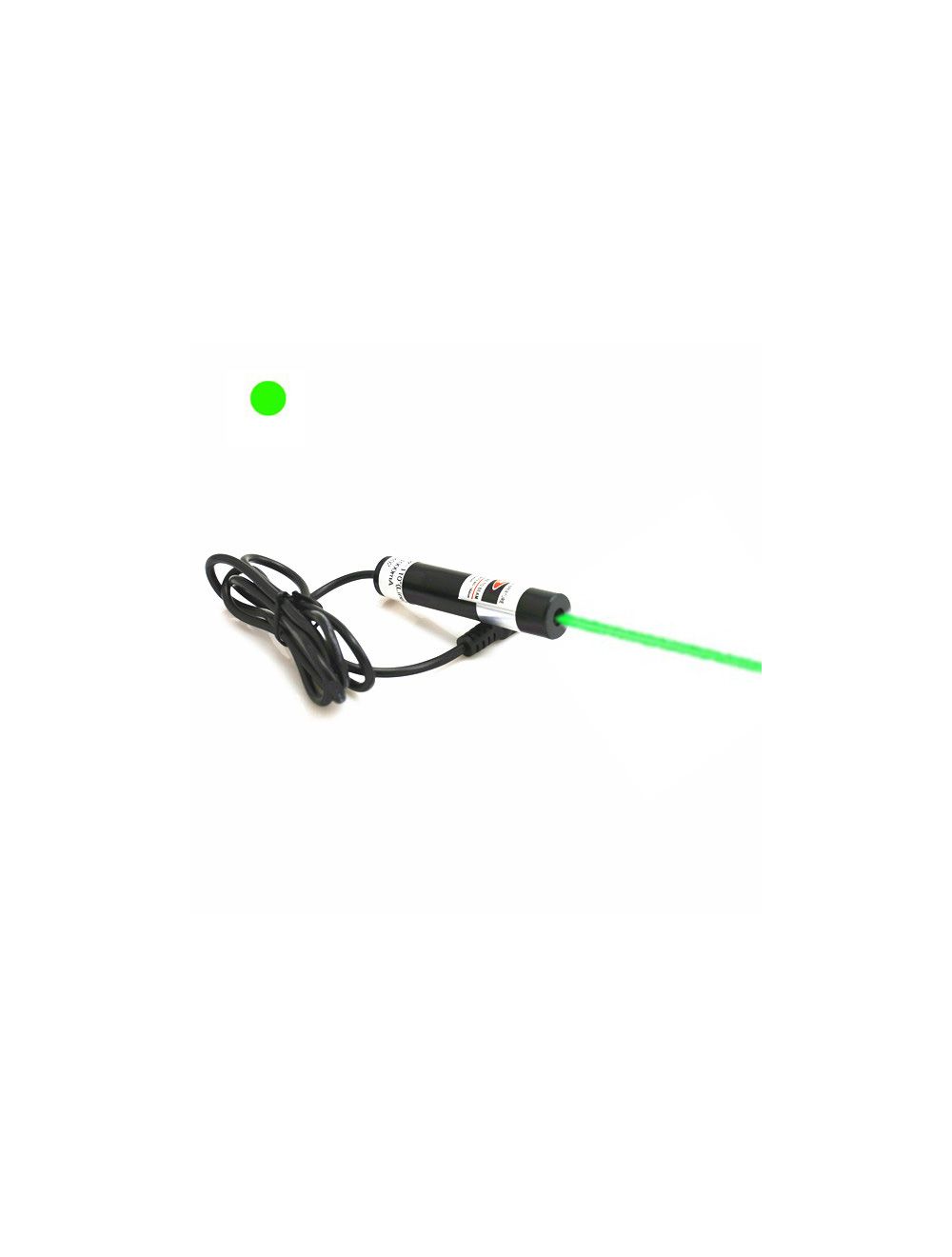

532nm Green Dot Laser Module

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $106.99

Special Price $89.99

  • Buy 2 for $87.99 each and save 3%
  • Buy 5 for $85.99 each and save 5%
  • Buy 10 for $82.99 each and save 8%

Quick Overview

Designed with the most sensitive color and the easily absorbed laser light emission from 532nm green DPSS laser part, 533nm green dot laser module assures the clearest and lowest laser beam divergence green reference dot projection in continuous work. Under easy adjustment of cylindrical lens and proper installation, it obtains no mistake and low labor force input dot aligning solution for industrial dot aligning use, prominent institutes and lab experiment works etc.

* Required Fields

Details

Industrial stabilized green dot laser module - Professional and adjustable focus fulfilled dot aligning solution for industrial dot positioning, wood, food, stone and textile positioning and processing, automatic industrial, lab experiment and scientific research works etc.

Compact structure dot laser gets perfect self control system. Integrated with advanced 532nm green DPSS laser part, APC, ACC driving circuit board, glass coated lens, green dot laser module generates constant and the most accurate green reference dot continuously. Intelligent feedback control of rapid tube temperature increasing and electric current impacting ensures up to 80% beam stability within 8 to 10 hours daily use.

High duration metal housing maintains the most stable performance. The adoption of durable aircraft used aluminum alloy housing fulfills excellent thermal conductivity and wide range operating temperature stabilization. Under serious occasion of mechanical shocking, moving or calibration, 16mm or 26mm diameter tube made green laser keeps stable and reliable performance after proper installation under mounting bracket.

DC input power supply support continuous green laser dot projection. Accepting 100V to 240V electric current, after converting into lower voltage DC input power supply, 532nm green dot laser module is generating highly bright and visible green reference dot projection in long term use. Special electric wires extensions for green laser and DC power source are high temperature and strong corrosion resistance. Easy screw of adjustable cylindrical lens allows the most accurate dot alignment constantly.

Technical Data:

Item Green Dot Diode Module
Wavelength (nm) 532nm
Output power (mW) 5mW, 10mW, 20mW, 30mW, 50mW, 80mW,100mW
Laser Class IIIa, IIIb
Beam thickness at aperture (mm) <2.8mm
Beam divergence (mrad) 1-1.5mrad
Beam mode (before optics) TEM00
Focus adjustable? Yes
TTL Modulation NO
Operating voltage(v)  5mW-30mW:DC=3.0V; 50mW-100mW:DC=4.2V
Operating current (mA)  5mW-30mW: I<500mA; 50mW-100mW: I<1000mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  5mW-30mW: D16mm×L71mm;50mW-100mW: D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Green dot laser module
2. DC input power Supply optional

Attention: Warning! Any green dot laser module up to 50mW generates serious intense thermal energy and radiation that can be harmful to human eyes seriously. Never make direct eye exposure to laser beam aperture at close distance. For high powered or OEM 532nm green dot laser diode modules, please contact us free at support@berlinlasers.com.
