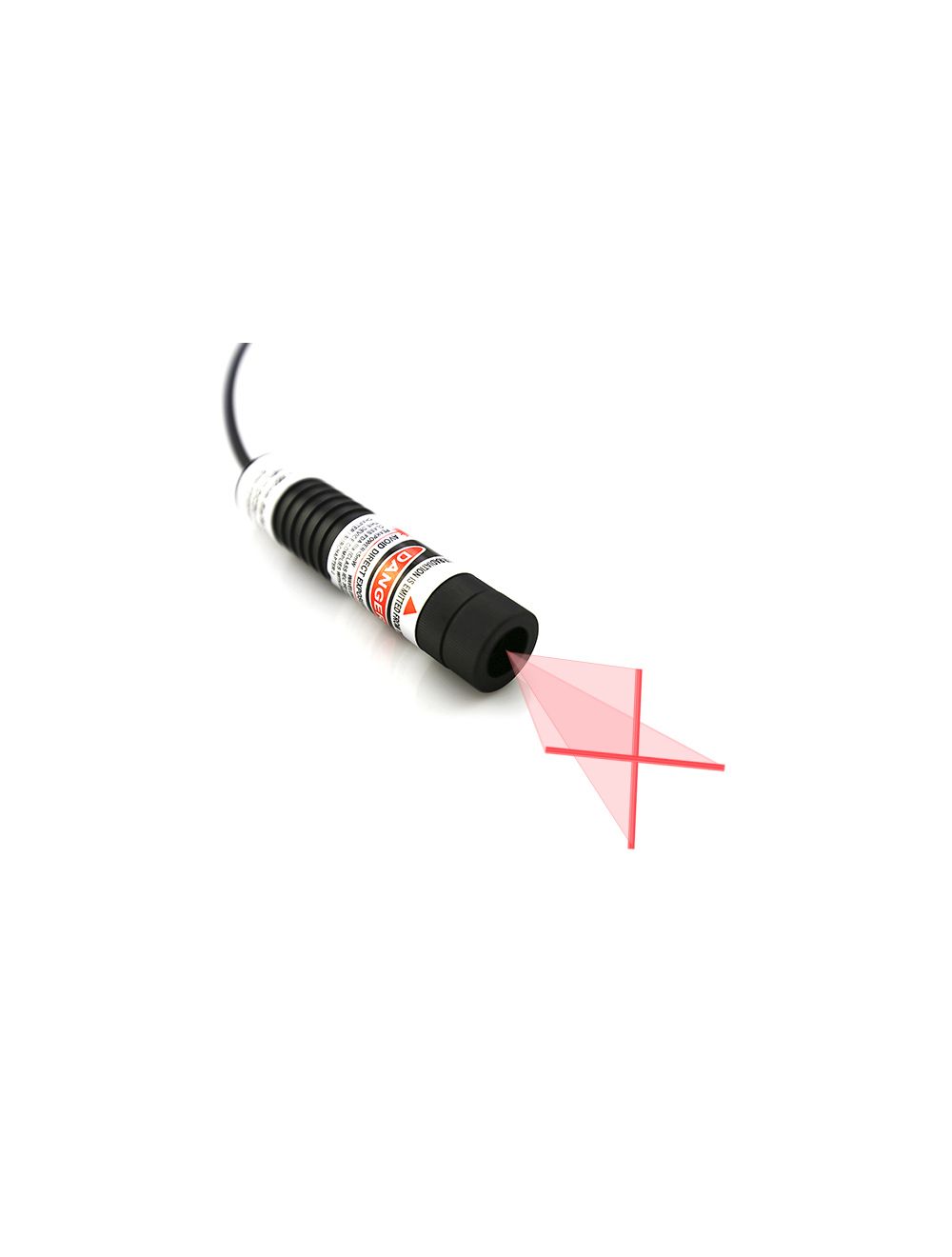

635nm Red Cross Line Laser Module

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $139.99

Special Price $112.89

  • Buy 2 for $109.99 each and save 3%
  • Buy 5 for $106.98 each and save 6%
  • Buy 10 for $102.99 each and save 9%

Quick Overview

When you seriously need to align both vertical and horizontal lines at once, 635nm red cross line laser module enables you highly visible and bright two perpendicular lines on to the working surface. Cross line laser generator gets different line length and line width determined by selected laser fan angles of 10 degree, 15 degree and 110 degree. This red cross hair laser provides the most accurate cross lines at low cost for various industrial alignment, positioning.

* Required Fields

Details

Industrial 635nm red cross line laser module selects 635nm red laser diode with qualified glass cylindrical lens, drawing continuous red cross hair lines at any distance. Selectable cross line laser fan angles allows different cross hair length generation at desired working distance. This bright red cross laser module supports continuous cross hair laser projection and long lifetime of more than 8,000 hours.

Key features:

Constant current and power driving circuit ensures stable and reliable red cross line projection

Selectable laser fan angle: 10°, 15°, 110°, determines different cross line laser length and width

Wide range of output power: 5mW, 10m, 20Mw, 50mW, 80mW, 100mW

Aircraft used anodized aluminum housing: anti statistic, protection from mechanical shocking, calibration, thermal conductive

Efficient metal heat sink thermal stabilization system.

Technical parameters:

Item Red Cross Line Laser Module
Wavelength(nm) 635nm
Output power(mW) 5mW-100mW
Available Fan Angel (degrees) 10°15°110°
Beam diameter at aperture(mm) 2m beam diameter: <2.2mm
Beam divergence(mrad) 5 mrad
Beam mode TE
Focus adjustable? Yes
Operating voltage(v)  5mW-20mW:DC=3.0V; 30mW-100mW:DC=4.2V
Operating current (mA)  5mW-20mW: I<500mA; 30mW-100mW: I<1000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  5mW-20mW: D16mm×L71mm;30mW-100mW: D26mm×L150mm
Expected lifetime (hours) ≥5000 hours
Warranty 6 months

Note:
Only trained people are allowed to operate cross hair laser modules. People should adjust the cross line laser diode module to the best condition and operate under special alignment equipment.

Warning! Red laser module emits radiation that can be harmful to human eyes. Never look directly into the laser aperture. Any exposure to laser beam at close distance can cause eye damage.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. 635nm red cross laser module
2. DC input power Supply

Attention: For high powered or OEM cross hair projecting red laser modules, please contact us free at support@berlinlasers.com.
