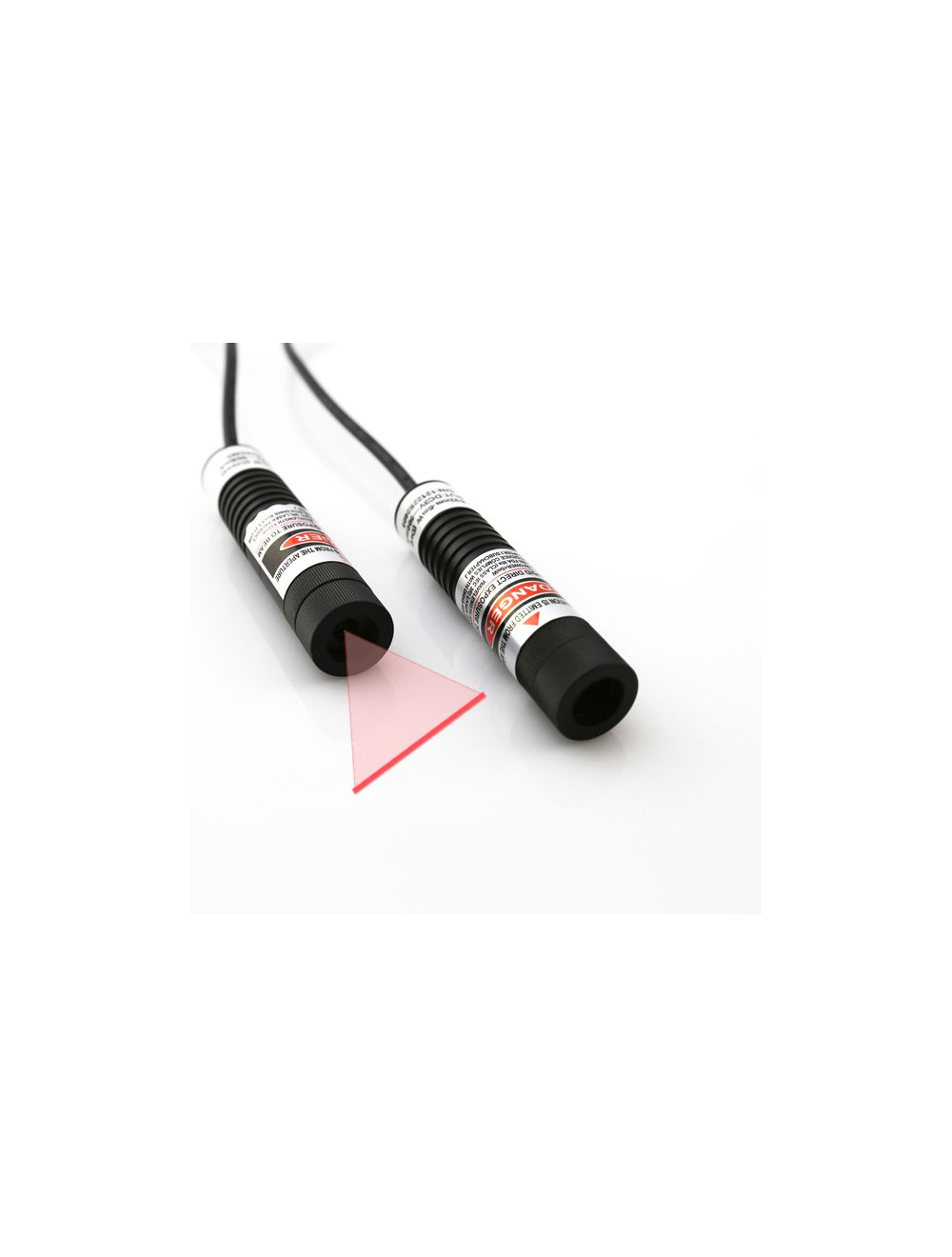

635nm Red Line Laser Module

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $109.98

Special Price $89.98

  • Buy 2 for $86.99 each and save 4%
  • Buy 5 for $83.99 each and save 7%
  • Buy 10 for $80.99 each and save 10%

Quick Overview

Focusable red line laser module selects 635nm red laser diode with qualified formal gaussian distribution lens, providing excellent red laser line source for industrial alignment, laser levels, positioning. 635nm red laser line generator gets at least 3 times brighter laser line projection than 650nm red laser. This laser line module allows the highest level of accuracy and precision line measurement for precise machinery manufacturing, laser wheel alignment, textile processing etc.

* Required Fields

Details

635nm red line laser module employs unique TE beam transverse mode, generates the best quality red laser line with high beam transmittance, high brightness. Gaussian distribution red laser line brightness fades away toward the ends, but this affordable line laser generator always provides moderate level of accuracy and precision laser line for alignment, laser levels, cutting and positioning.

◆ Brightest red laser line source with high stability and reliability

635nm red line laser module is available with compact size, but contains qualified 635nm red laser diode with formal glass lens, constant current driving circuit with intelligent control, and efficient thermal emitting. It makes highly stable red laser line generation constantly, no laser line decay and blur.

◆ Durable structure for wide operation temperature environments

Red laser line generator selects aircraft used anodized aluminum housing material, assures wide operation temperature in multiple environment, even harsh occasions. This line laser module is also workable with perfect protection from mechanical shocking, calibration, makes the most stable red line alignment in use.

Key features:

Rapid and noncontact 635nm red laser line targeting, time and power saving
Formal Gaussian red laser line, high laser line transmittance
Wide range level Gaussian lens degrees: 10°, 20°, 30°, 45°, 60°, 110°
Wide laser power range: 5mW, 10mW, 20mW, 50mW, 80mW, 100mW
Thermal stabilization, long lifetime

Technical Parameter:

Item Red Line Laser Module
Wavelength (nm) 635nm
Output power (mW) 5mW-100mW
Available Fan Angle (degree) 10°- 110°
Beam diameter at aperture (mm) <2.0mm; 2m diameter: <2.0mm
Beam divergence (mrad) 5 mrad
Beam mode TE
Focus adjustable? Yes
Operating voltage(v)  5mW-20mW:DC=3.0V; 30mW-100mW:DC=4.2V
Operating current (mA)  5mW-20mW: I<500mA; 30mW-100mW: I<1000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  5mW-20mW: D16mm×L71mm;30mW-100mW: D26mm×L150mm
Expected lifetime (hours) ≥5000 hours
Warranty 6 months

Note:

Only trained people are allowed to operate 635nm red line laser module. People should adjust the laser line generator to the best condition and operate under special alignment equipment.

Warning! Laser line module emits radiation that can be harmful to human eyes. Never look directly into the laser aperture. Any exposure to laser beam at close distance can cause eye damage.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Red line laser module
2. DC input power Supply

Attention: For high powered or OEM line laser modules, please contact us free at support@berlinlasers.com.
