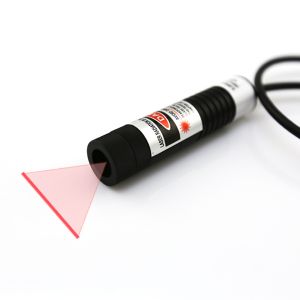

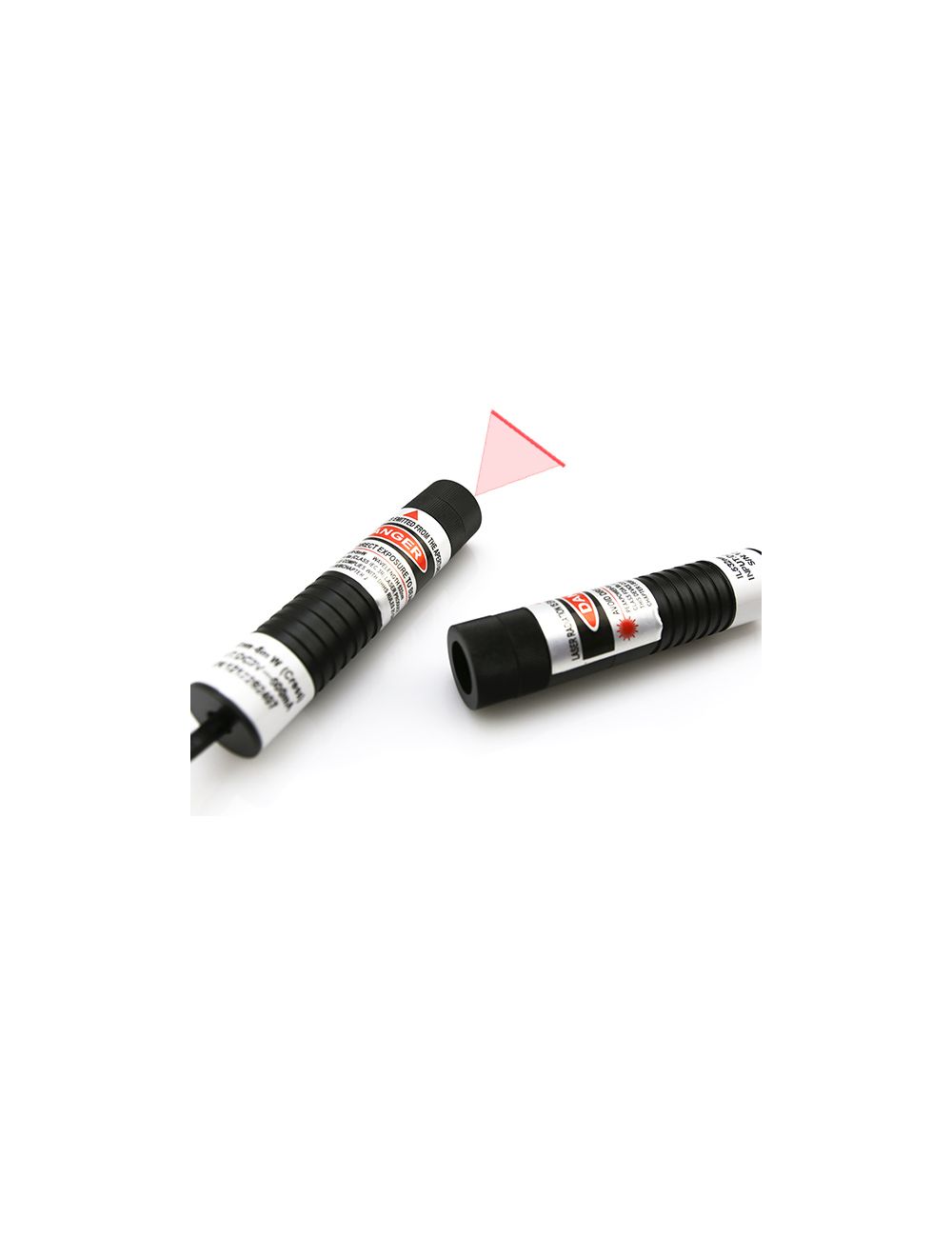

635nm Separate Crystal Lens Red Laser Line Generator

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $135.99

Special Price $105.99

  • Buy 3 for $103.99 each and save 2%
  • Buy 5 for $101.99 each and save 4%
  • Buy 10 for $99.99 each and save 6%

Quick Overview

635nm separate crystal lens red laser line generator employs import 635nm red laser diode, APC driving circuit board and metal heat sink cooling system, keeping constant and high stability red laser line source with up 80% laser line uniformity. Within 10 degree to 93 degrees optic lens degree, red laser module can easily achieve different laser beam fan angle, producing various laser line length for multiple industrial laser line alignment and high tech line use etc.

* Required Fields

Details

When 635nm separate crystal lens red laser line generator is making perfect configuration with aircraft used aluminum alloy housing and copper material made 635nm red laser diode as core part, it is getting the best thermal conductivity and extremely strong environmental stabilization within wide environmental temperature. Supported by 3V or 4.2V DC input power supply, red laser module gets bright and high uniformity red laser line targeting, making sure of the highest level of accuracy line alignment for laser cutting machine, image processing system, sand mill, textile garment processing etc.

◆ Constant current and output power supply from APC, ACC driving circuit.

Red laser line generator employs most import APC, ACC driving circuit board design, getting intelligent feedback of provided output power, making sure of constant red laser line targeting stably and reliably.

◆ DC input power supply gets larger size cooling space and harsh occasion stabilization.

External DC input power supply applies for 100V to 240V input electric current, workable in majority country and region on the earth. Red laser module also keeps stable line laser alignment under strong interference, strong static etc.

◆ High duration and strict tested laser line generator with long lifetime.

Durable aluminum alloy housing tube made 35nm red laser module passes through strict tests, including up 24 hours aging preventing test, super rapid electric current adding test, and high and low temperature alternative test, assuring stable line alignment under mechanical shocking, calibration, and maintaining more than 8000 hours long serving lifetime.

◆ Separate crystal lens assures up 80% laser line uniformity, obtaining the most accurate line alignment conveniently.

Employed by higher cost separate crystal lens, 635nm red laser line generator gets the same line brightness and thickness from line middle part towards both ends. Red laser line keeps no light decay, different laser beam fan angle and line length applicable for multiple laser line alignment uses.

Key features:

◆ Long term continuous red laser line alignment within 8 hours to 10 hours a day
◆ Easy to install, operate and adjust, allowing free installation with 0.5 meter to 3 meters.
◆ Wide output power range from 5mW to 100mW, assuring clear and high speed line alignment at wide range work distance and lighting occasion
◆ Wide optic lens of 10 degree to 93 degree from separate crystal lens, generating high linear quality red laser line within 0.5 meter to 6 meters red line in distance

Technical Parameter:

Item Separate crystal lens red laser line generator
Wavelength (nm) 635nm
Output power (mW) 5mW-100mW
Available Fan Angle (degree) 15°- 93°
Beam diameter at aperture (mm) <2.0mm; 2m diameter: <2.0mm
Beam divergence (mrad) 5 mrad
Beam mode TE
Focus adjustable? Yes
Operating voltage(v)  5mW-20mW:DC=3.0V; 30mW-100mW:DC=4.2V
Operating current (mA)  5mW-20mW: I<500mA; 30mW-100mW: I<1000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  5mW-20mW: D16mm×L71mm;30mW-100mW: D26mm×L150mm
Expected lifetime (hours) ≥5000 hours
Warranty 6 months

Note:

Only trained users or skilled users are able to operate high purity light emitting tool of 635nm separate crystal lens red laser line generator. People should adjust 635nm red laser module to the best condition and operate under special alignment equipment.

Warning! 635nm Red laser module emits radiation that can be harmful to human eyes. Never look directly into the laser aperture. Any exposure to laser beam at close distance can cause eye damage. Remember to wear laser safety goggles for any laser module up 30mW to 100mW.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. 635nm separate crystal lens red laser line generator
2. DC input power Supply

Attention: For high powered or OEM 635nm separate crystal lens red laser line generators, please contact us free at support@berlinlasers.com.
