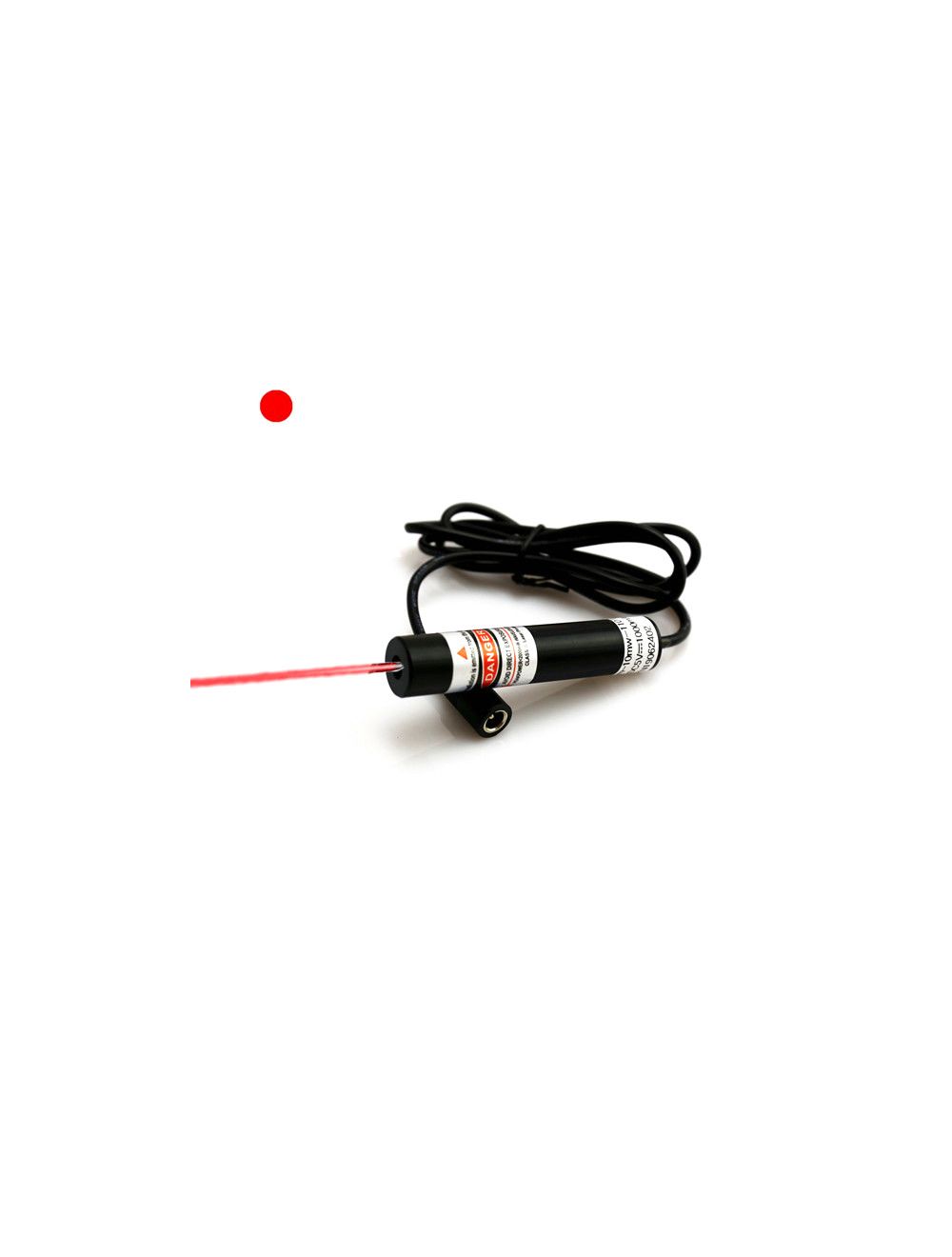

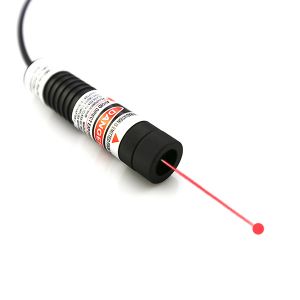

650nm Red Dot Laser Module

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $79.99

Special Price $65.99

  • Buy 3 for $63.99 each and save 4%
  • Buy 5 for $61.99 each and save 7%
  • Buy 10 for $58.99 each and save 11%

Quick Overview

Industrial stabilized 650nm red dot laser module contains whole parts of import 650nm red laser diode, glass coated lens, metal heat sink cooling system and APC, ACC driving circuit board inside quite durable and compact structure metal housing tube. It is obtaining the lowest production cost and the most reliable red reference dot alignment solutions for various accurate laser dot alignment works.

* Required Fields

Details

The excellent quality 650nm red dot laser module gets featured design of free installation and easy adjustment of laser beam focus, providing the most convenient and accurate red reference dot aligning source for majority application fields of industrial positioning, drilling system, laser medical science, textile garment processing, wood, stone, food processing, automatic system etc.

Adjustable focus laser module ensures the most accurate red dot alignment.
Front adjustable cylindrical lens enables easy adjustment of beam focus range until infinity, equipped with proper adjusted dot targeting direction red dot laser assures the clearest measurement in distance.

APC, ACC driving circuit provides constant output power and electric current.
Within wide range output power of 5mW to 100mW, under rapid temperature increasing of laser module tube, APC, ACC driving circuit board ensures intelligent feedback of constant output power and electric current, fulfilling highly reliable red dot projection safe and continuously.

Durable structure protects laser module from various harsh working conditions.
The most durable aircraft used aluminum alloy housing tube with inner metal heat sink cooling system ensures excellent thermal conductivity, and stable red laser dot alignment under mechanical shocking, calibration or moving. Red dot alignment maintains up to 80% beam stability under 8 to 10 hours daily use.

Technical Data:

Item Red Dot Laser Module
Wavelength (nm) 650nm
Output power (mW) 5mW, 10mW, 20mW, 30mW, 50mW, 80mW,100mW
Laser Class IIIa, IIIb
Beam thickness at aperture (mm) <4.2mm*2.5mm
Beam divergence (mrad) <5mrad
Beam mode (before optics) TE
Focus adjustable? Yes
TTL Modulation NO
Operating voltage(v)  5mW-30mW:DC=3.0V; 50mW-100mW:DC=4.2V
Operating current (mA)  5mW-30mW: I<500mA; 50mW-100mW: I<1000mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  5mW-30mW: D16mm×L71mm;50mW-100mW: D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Red dot laser module
2. DC input power Supply optional

Attention: For high powered or OEM 650nm red dot laser modules, please contact us free at support@berlinlasers.com.
