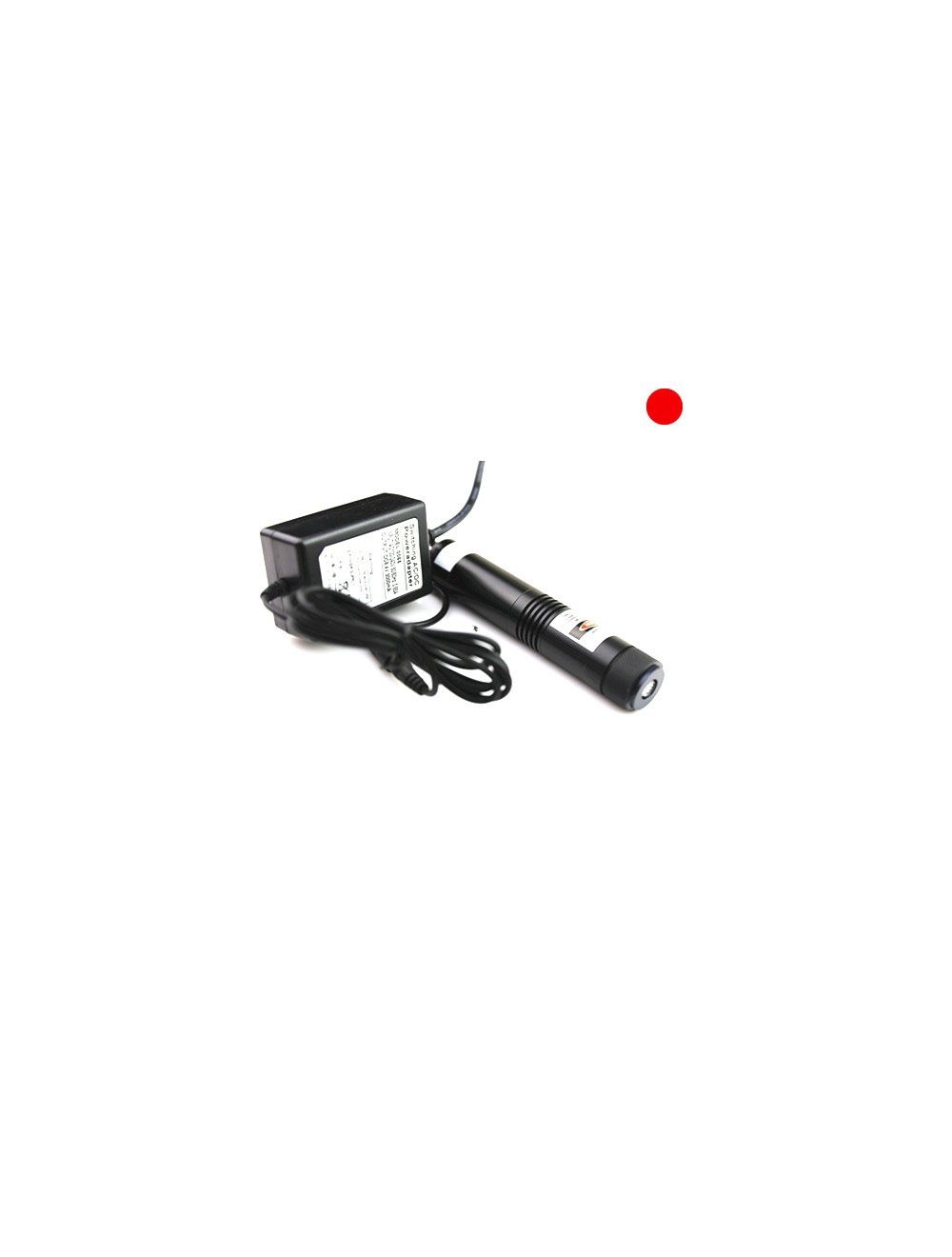

650nm High Power Red Dot Laser Module 150mW-500mW

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $279.99

Special Price $259.99

  • Buy 2 for $256.99 each and save 2%
  • Buy 5 for $252.99 each and save 3%
  • Buy 10 for $248.99 each and save 5%

Quick Overview

Employed by import 650nm red laser diode within 150mW to 500mW, configured with separate metal heat sink cooling system and external DC input power supply, high power 650nm red dot laser module achieves superior nice thermal emitting and increasing stability red reference dot projection in continuous work. This direct diode emission 650nm red laser ensures the most intense red laser light emission and the clearest red reference dot projection for various application fields, including lab experiment, scientific research, university and prominent colleges etc.

* Required Fields

Details

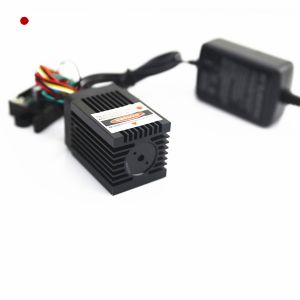

Adjustable focus high power 650nm red dot laser module 150mW to 500mW ensures the most rapid red laser light concentration from beam aperture, forming into the most compact size red reference dot projection in distance immediately. This aircraft used aluminum alloy housing made red laser gets perfect consideration with thermal emitting system and APC, ACC driving circuit board, protecting laser module from increasing temperature and serious electric current supply. Under proper installation and adjustment, it achieves the most satisfied and the lowest price dot alignment for preheating treatment, laser medical therapy, drilling system, laser engraving machine and laser marking machine etc.

◆ DC power supply supports continuous red reference dot projection.
The selection of AC/DC adapter accepts wide range electric current within 100V to 240V, supporting high power 650nm red dot laser module with continuous red reference dot projection from beam aperture constantly. Extending electric wires for both red laser and DC power supply enable the maximum installation distance of 3 meters, ensuring convenient red laser dot projection under high temperature and strong carrion as well.

◆ Qualified optic lens assures the clearest dot alignment constantly.
Employed by the best quality glass coated lens, after a series of strict beam stability tests up to 24 hours, high power red dot laser generates high beam transmittance and the most accurate red reference dot projection in distance. Special glass window of laser beam aperture protects inner laser parts from dust or moisture occasion efficiently.

◆ Intelligent feedback system assures constant dot alignment stably.
Within wide range output power of 150mW to 500mW, APC and constant increasing temperature, APC, ACC driving circuit board assures perfect tube overheating protection and over electric current impacting. Under recommended operating time within 8 to 10 hours per day, 650nm red laser module reduces possibility of laser tube burning out or damage, and maintains excellent laser light cycling use in constant use.

Technical parameters:

Item High Power Red Dot Laser Module
Wavelength (nm) 650nm
Output power (mW) 150mW, 200mW, 300mW, 400mW, 500mW
Laser Class IIIB, IV
Beam thickness at aperture (mm) 2mm×6mm@2M
Beam divergence (mrad) 5mrad
Beam mode (before optics) TEM
Focus adjustable? Yes
Operating voltage(v)  DC=9V
Operating current (mA)  I<1000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D26mm×L150mm
Expected lifetime (hours) ≥5000 hours
Warranty Period 180 days

Note:

Super powerful red laser radiation and reflection are producing from beam aperture part. High power 650nm red laser module is only allowing proper adjustment and operation under professional alignment machine or device.

Warning! Any thermal energy producing from beam aperture cause serious hurt to human eyes and skins. Avoid eye exposure to beam aperture and remember to wear professional 650nm wavelength preventing laser safety goggles.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 9V, 1000mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. High Power 650nm Red Dot Laser Module 150mW-500mW
2. DC input power Supply

Attention: For OEM 650nm high power red dot laser modules, please contact us free at support@berlinlasers.com.
