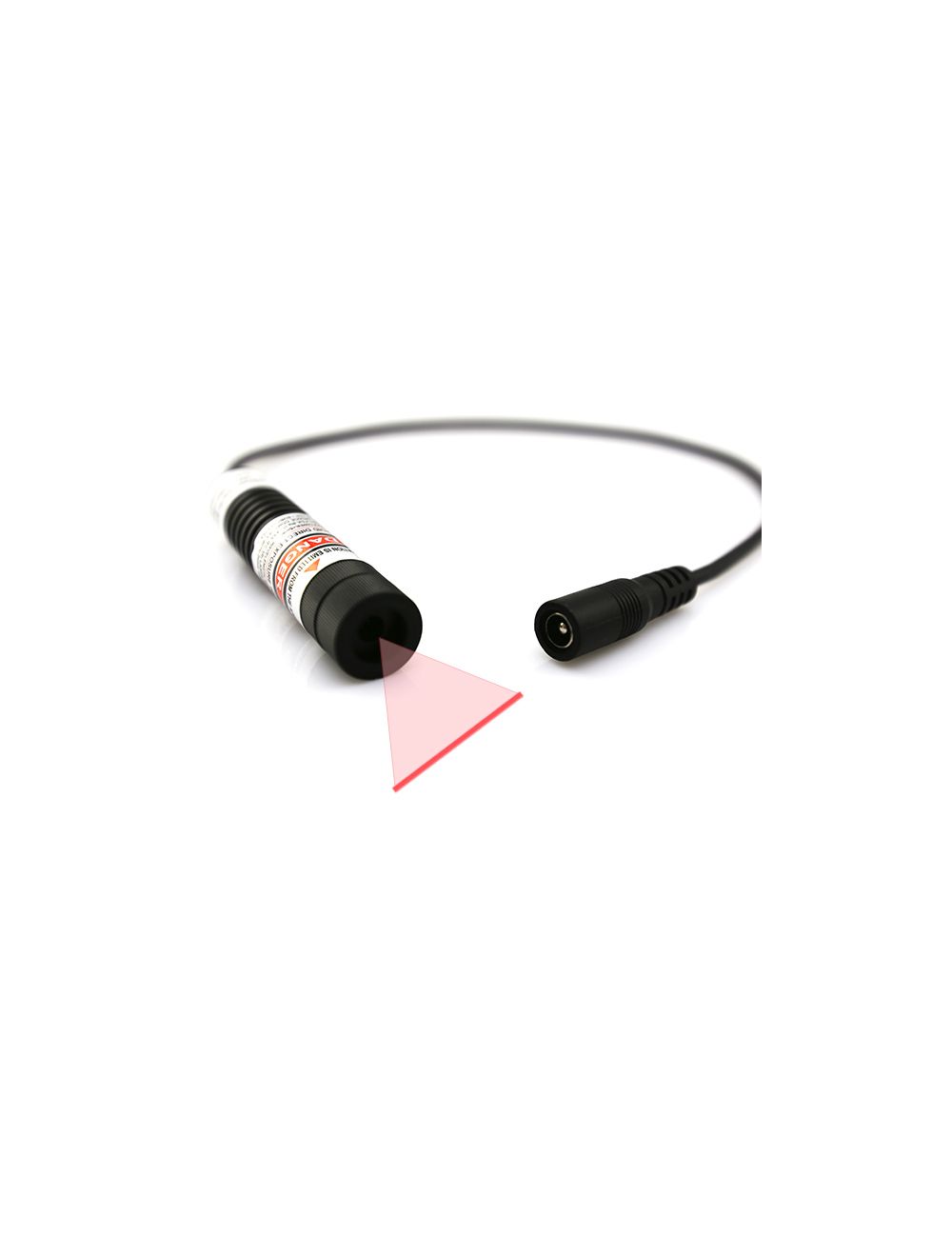

650nm Red Line Laser Module

Focusable 650nm red line laser module employs qualified 650nm red laser diode, integrates with formal Gaussian distribution lens, generates a highly bright and visible red laser line applicable for various industrial alignments and positioning work. With perfect combination of internal metal heat sink cooling system and anodized aluminum shell with efficient thermal conductivity, this advanced laser line generator produces the most stable and reliable red laser line solution at low price.

was $85.98 Special Price $69.88
Availability: In stock
SKU
650RLLMG
  • Buy 2 for $66.99 each and save 4%
  • Buy 5 for $63.98 each and save 8%
  • Buy 10 for $60.98 each and save 13%

650nm red laser module produces highly bright and visible red laser line in special type of formal Gaussian distribution. The light intensity of red Gaussian line fads away towards both ends of red laser line. This mature 650nm red laser diode tech applied laser line generator provides the most affordable laser line source for moderate level of accuracy and precision required laser levels, laser line alignment and positioning.

◆ Focusable red laser line module provides reliable industrial laser line source.

Employed by compact size, available with only 16mm diameter, this line laser generator produces highly stable and reliable laser line with extremely strong beam transmittance, no laser line decay in continuous use.

◆ Genuine laser module with high performance and long lifetime

The adoption of durable and anodized aluminum housing laser module, integrates with internal constant current driving circuit and cooling system, makes red laser line generator gets superiority of anti-interference, wide operation temperature, protection from mechanical shocking, calibration etc.

◆ Rapid laser line targeting with low power and time consumption

Formal Gaussian distribution red line laser module makes high speed and noncontact red line positioning on desired working surfaces. Both vertical and horizontal surfaces are workable.

Key features:
◆ Affordable red laser line solution for industrial laser use
◆ Thermal conductive, stable and reliable laser line supply
◆ Wide range level Gaussian lens degrees: 10°, 20°, 30°, 45°, 60°, 110°
◆ Wide laser power range: 5mW, 10mW, 20mW, 50mW, 80mW, 100mW.

Technical Parameter:

Item Red Line laser Module
Wavelength (nm) 650nm
Output power (mW) 5mW-100mW
Available Fan Angle (degree) 10°- 110°
Beam diameter at aperture (mm) <2.0mm; at 2m diameter: <2.0mm
Beam divergence (mrad) 5 mrad
Beam mode TE
Focus adjustable? Yes
Operating voltage(v)  5mW-20mW:DC=3.0V; 30mW-100mW:DC=4.2V
Operating current (mA)  5mW-20mW: I<500mA; 30mW-100mW: I<1000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  5mW-20mW: D16mm×L71mm;30mW-100mW: D26mm×L150mm
Expected lifetime (hours) ≥8000 hours
Warranty 6 months

Note:

Only trained people are allowed to operate 650nm red line laser module. People should adjust the laser line generator to the best condition and operate under special alignment equipment.

Warning! Laser module emits radiation that can be harmful to human eyes. Never look directly into the laser aperture. Any exposure to laser beam at close distance can cause eye damage.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Red line laser module
2. DC input power Supply

Attention: For high powered or OEM line laser modules, please contact us free at support@berlinlasers.com.
